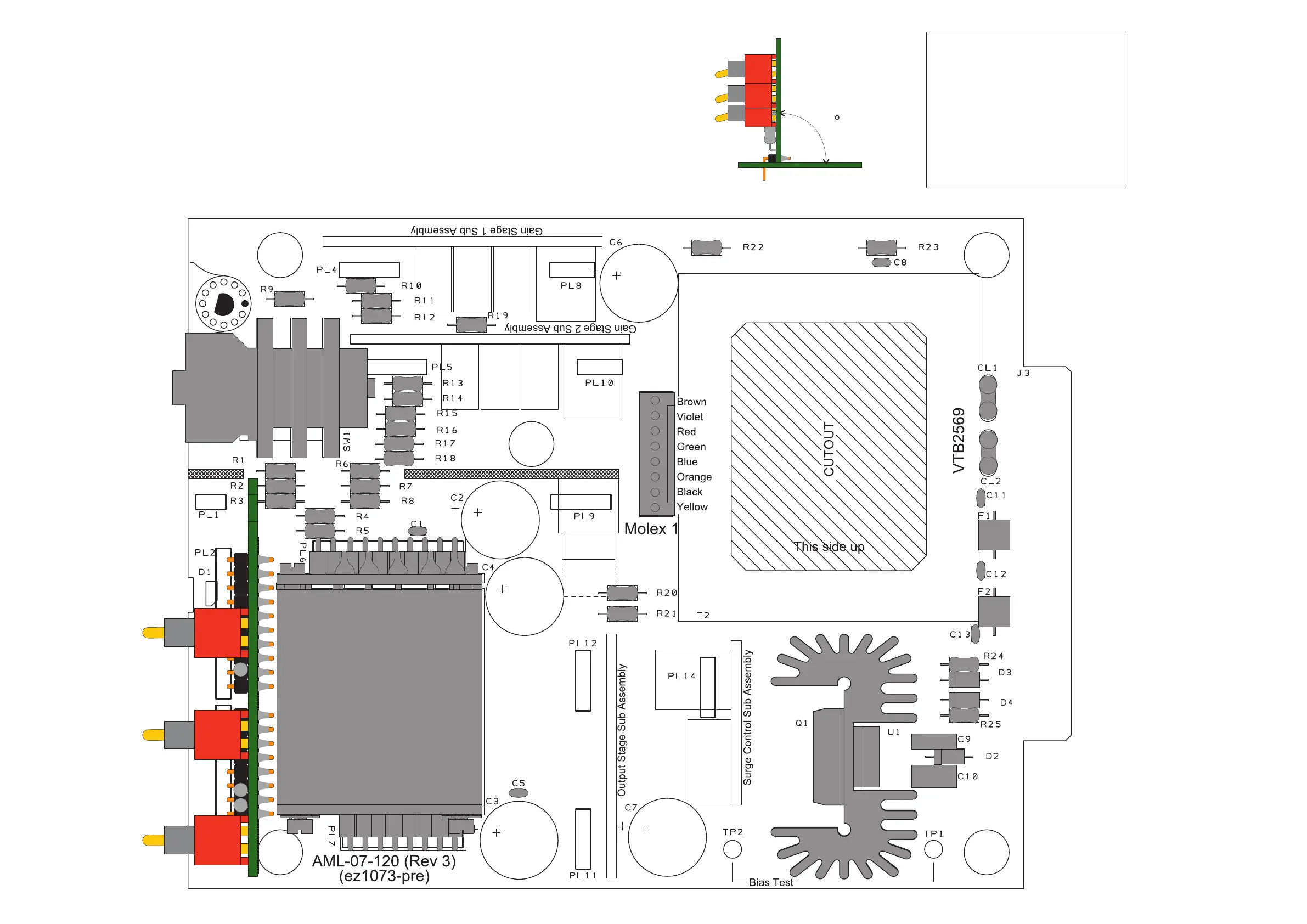

Switch PCB Fitting
Insert switch PCB
into main PCB
ensuring that it is
perpendicular and
solder in place.
90
Assembly Tip:
Solder only a couple of pins
until you have fitted the trim
pot PCB (next page)... just in
case it needs a little nudge
to get them alligned.
