AML ez1073pre - Page 40

AML-07-120 (Rev 3)
(ez1073-pre)
2 3
4 5 6
78
910
11
VTB2569
VTB9045
LoZ
48v
O/P Phase
Transformer fitted
on this side
This side up

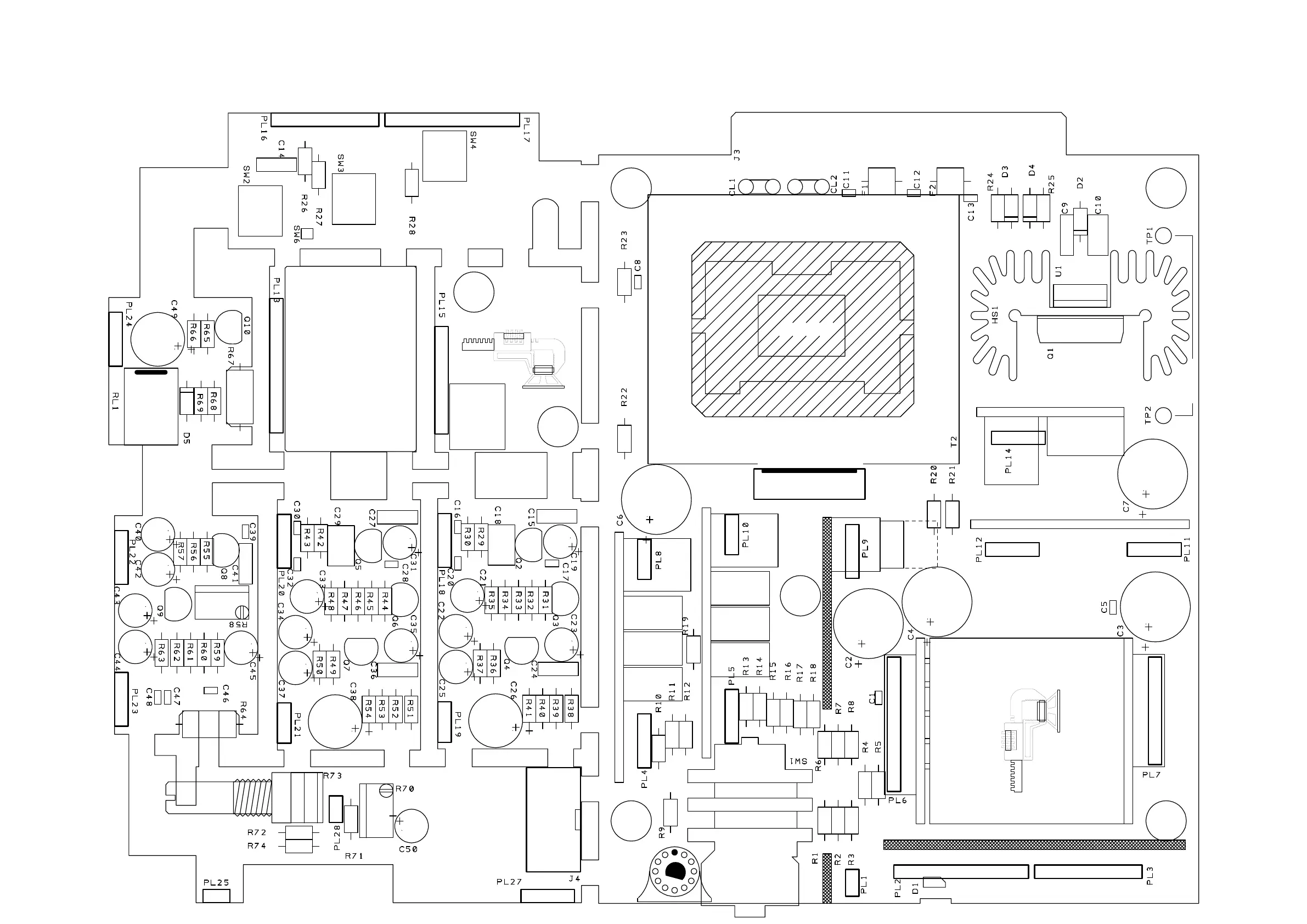

Output Stage Sub Assembly
Surge Control Sub Assembly
Gain Stage 1 Sub Assembly
Gain Stage 2 Sub Assembly
Serial No:
Bias Test
Bias Adjust
Molex 1
Gain Adjust
Yellow Black Orange Blue Green Red Violet Brown
CUTOUT
1 8
