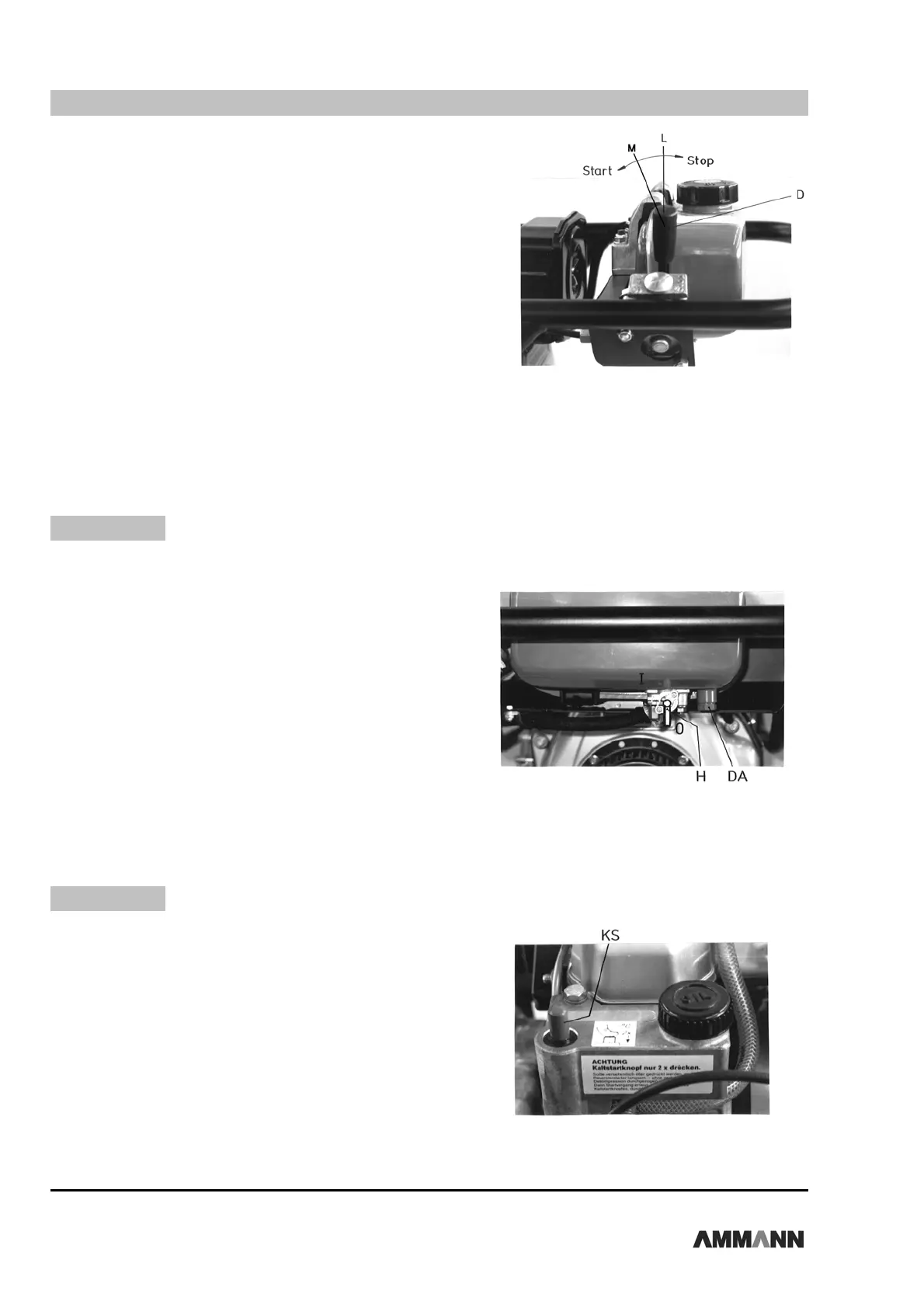

ADS 70 / ACR 70 D 16
Operation :
5.3 Starting the engine :
N E W !!!
Due to the new throttle adjustment, it is for the first time pos-
sible to adapt the number of impacts to the nature of the soil
to be compacted.
This is achieved by the double-declutch position „M“ of the
throttle lever. When the throttle lever is placed in this posi-
tion, the number of impacts of the rammer is considerably
lower than when it is placed on full throttle position (Start).
When the throttle lever is placed on idle running position (L),
it must be switched over to full throttle position (Start) only.
Attention: Do only switch over to double-declutch position (M) from full throttle
position (Start).
Note :
Keep to the starting instructions of the engine manu-
facturer.
1. Open the fuel cock „H“ (Fig. 8).
2. Place the throttle lever in position „full throttle“
(Fig. 7).
3. Start the engine according to the YANMAR
starting instructions.
5.4 Cold start device :
Push the piston „KS“ on the cold start device twice when outside
temperatures are very low (Fig. 9). Preferably fill the cold start
device with engine oil 10W10.
Note :
Fig. 9
Fig. 7
Fig. 8
Push the cold start button only twice ! In case
that it has been pushed more than twice, the
reversible starter must be pulled through without
decompression being pushed. After this, the
starting procedure must be repeated without
pushing the cold start button (Fig. 9).
Fig. 7
