Maintenance :
7.4 Changing the oil in the tamping system :
• An oil change in the tamping system must be carried out every 200 operating hours or at least
once a year.
• Remove the oil drain screw plug, let the oil drain off into a suitable container and dispose of in
an environment-friendly manner (Fig. 10).
• Clean the oil drain screw plug and put it in its place again. Then unscrew plug „B“ from the
feeder opening (Fig. 13).
• Fill in oil (15W40) until the oil level shows in the middle of the oil level gauge (filling capacity:
1,5 l).
• Screw in plug „B“ into the feeder opening again.
7.5 Cleaning the diesel filter :

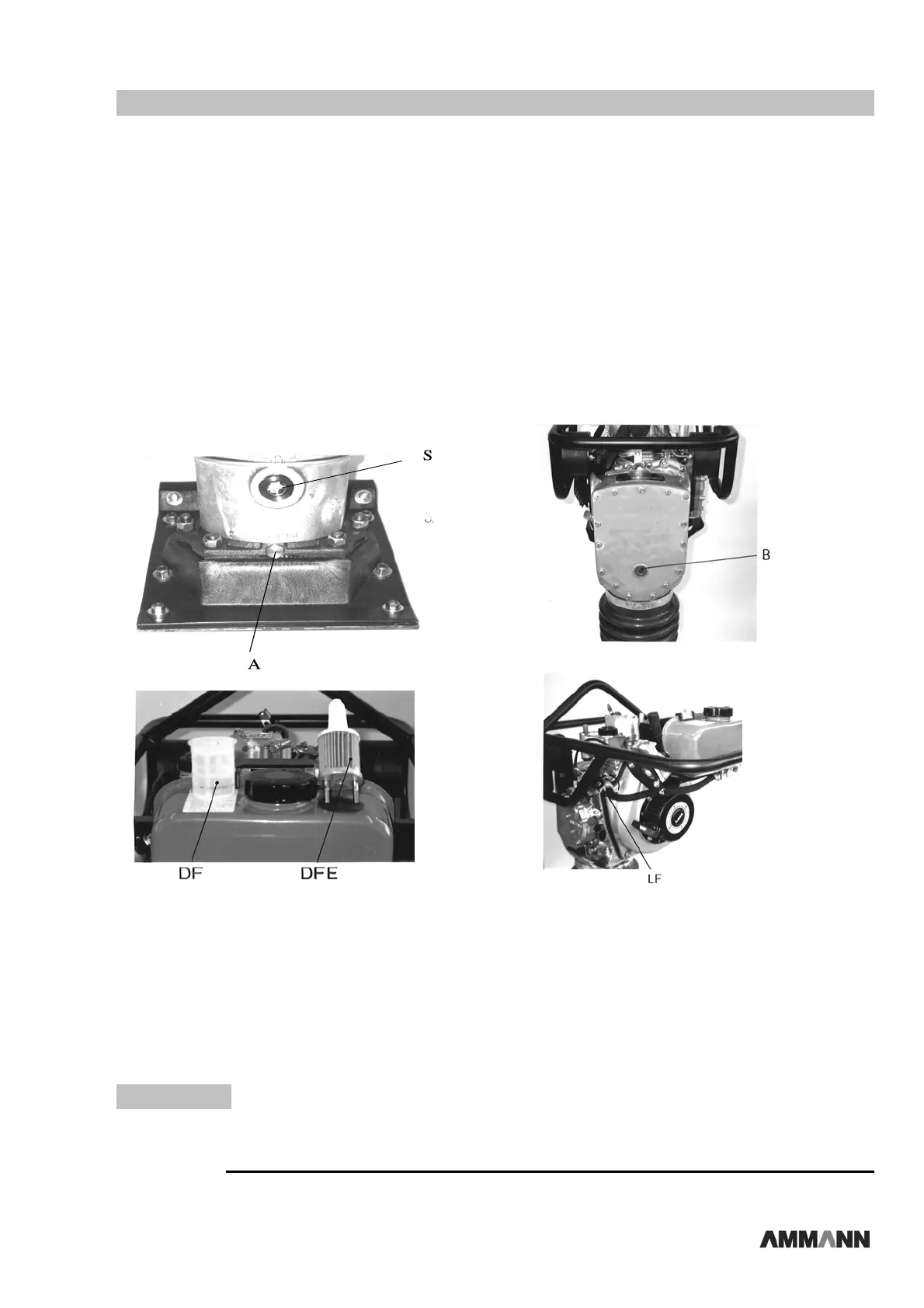

Fig. 11 Fig. 12
• The diesel filter „DF“, the diesel filter element „DFE“ and the pipe filter „LF“ must be cleaned or
replaced at least once a year (Fig. 11/12).
• Open the drain plug „DA“ and let the fuel drain off.
• Remove both screws on the fuel cock and take out the diesel filter element through the feeder
opening.
• Reinstall again in reversed order after replacement or cleaning.
Note :
Pay attention to utmost cleanness when working on fuel pipes and on the fuel
tank !
Fig. 10
Fig. 13
