Ammann ARX 20 - Engine Oil Level Checks and Topping Up

100 ARX 1
1201281 A | 24.07.2013
9.9 Engine oil
9.9.1 Checking the engine oil level
Oil dipstick
1 Check engine oil level daily using the dipstick. The dipstick (1) is located on
the left of the engine.
1.1 Check oil level while the roller is standing on a level surface and the
engine is cold.
1.2 You can see the engine oil level on the dipstick.
The oil level must be between the top (x) and bottom (y) marks.
2* Top up engine oil as required.

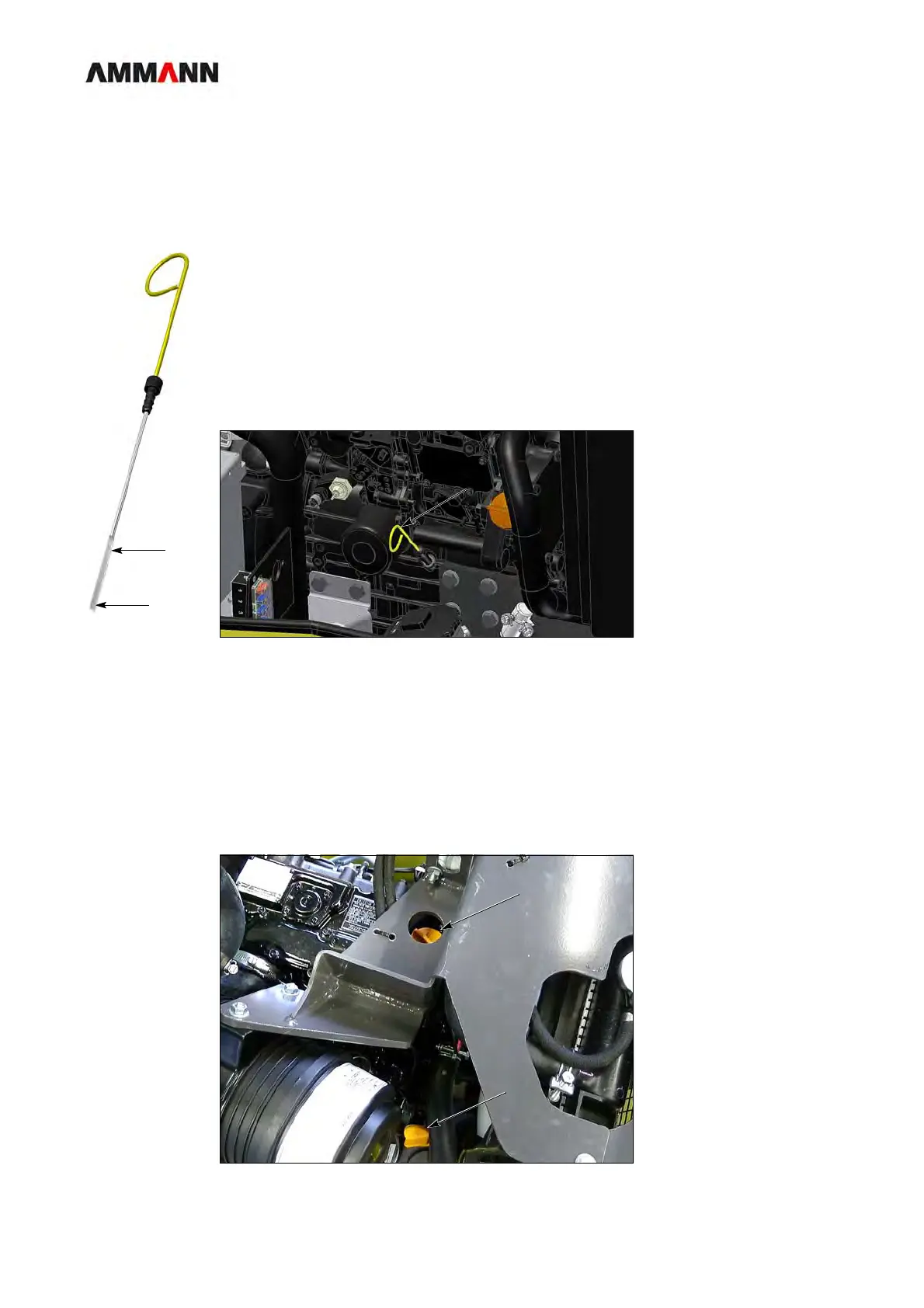

Fig. 9-8 Location of dipstick
9.9.2 Topping up the engine oil
1 Top up the engine oil at one of the two oil filler necks.
1a Filler neck on the left-hand side of the engine.
1b Filler neck on the engine.
Fig. 9-9 Filler neck to the left and filler neck on top.
x
y
1
a
b
