8.1 Edge cutter

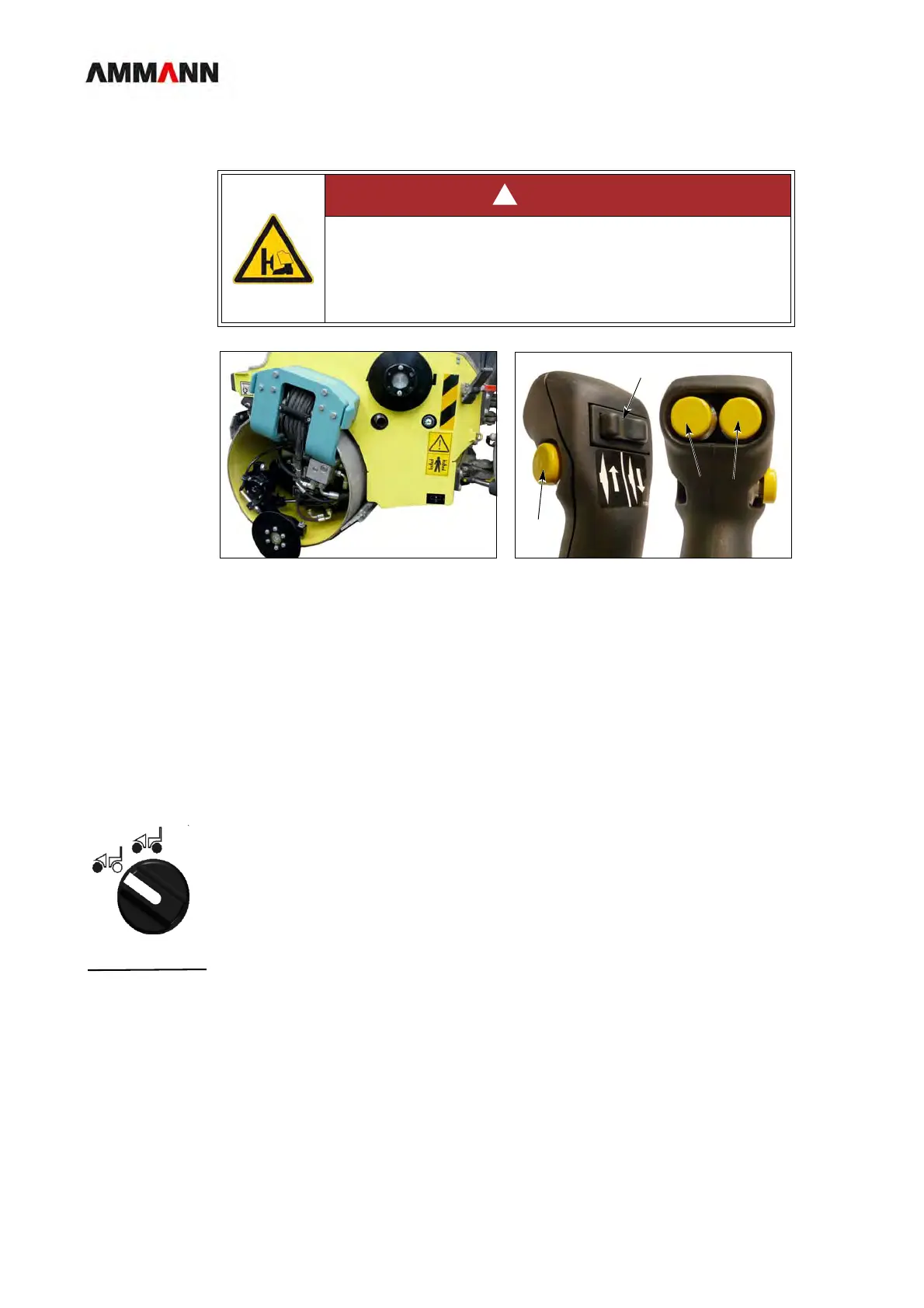

Fig. 8-1 Edge cutter / Multifunction operating lever
8.1.1 Presetting edge cutter
Vibration 1 Before operating the edge cutter, set the pre-select switch to “front vibration”.
NOTE The edge cutter only operates correctly in this setting. If the pre-select is set
incorrectly, it will malfunction (vibration will be switched on, pavement will be
damaged).
DANGER
Risk of injury when lowering cutting disk or pressure disk
• Keep personnel out of the hazard zone when raising and
lowering the edge cutter. Keep to a safety distance of at least
1m.
1 Raising/lowering the edge cutter
2 Roller drum sprinkler
3 Edge cutter water
4 Vibration on/off
!
3 2
4
1
