Operating and display elements 45
1201281 A | 24.07.2013

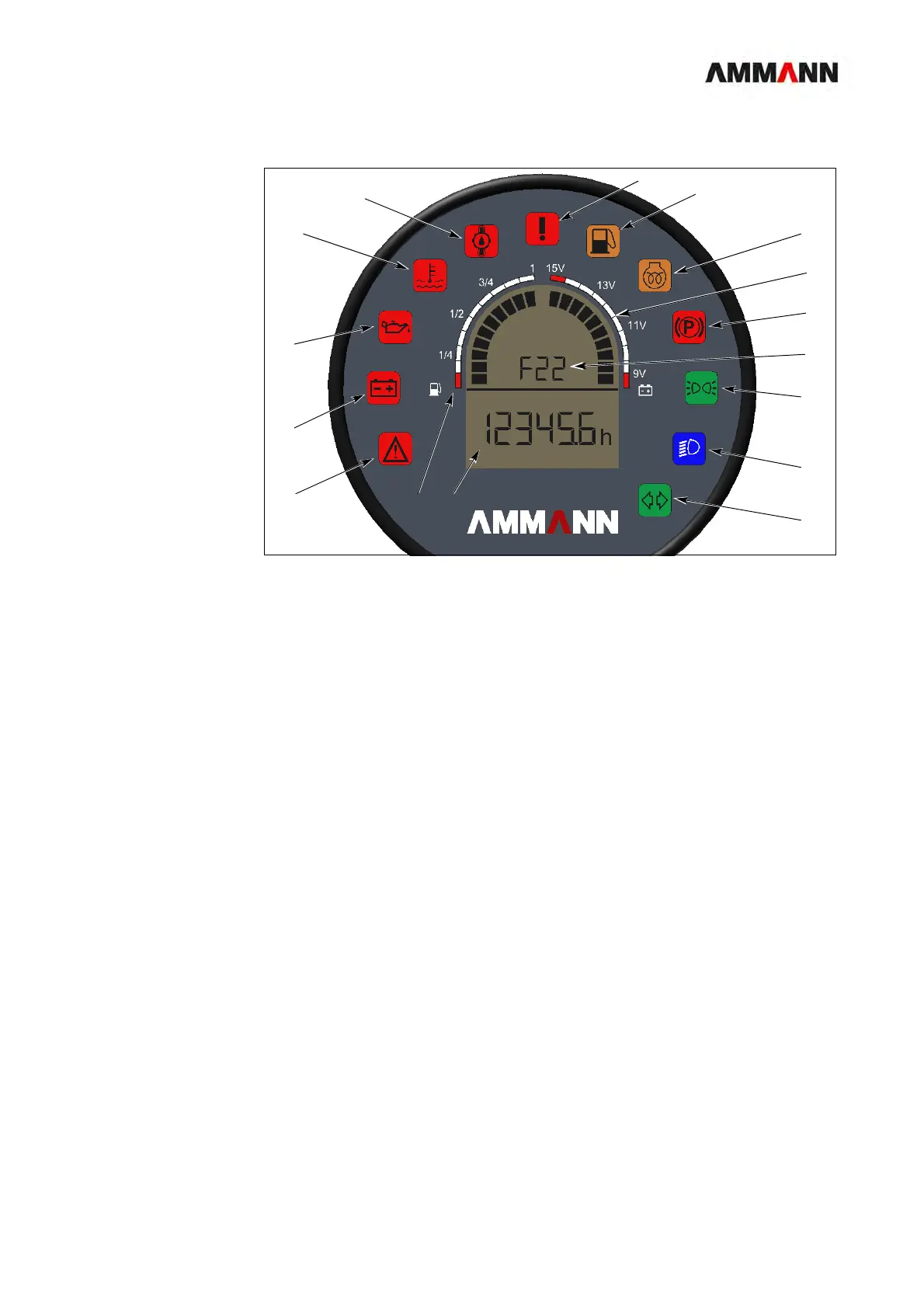

5.1.2 Control lamps
The warning lamps for engine oil pressure, charge indicator and brake
release/supply pressure must light up when the ignition is switched on. They must go
off as soon as the engine is started.
1 Error control lamp
2 Control lamp for battery charge level (charge control)
3 Control lamp for engine oil pressure
4 Control lamp for engine coolant temperature
5 Control lamp for hydraulic oil temperature
6 Control lamp for emergency stop
7 Control lamp for diesel reserve
8 Control lamp for pre-heating
9 Brake pressure control lamp
10 Control lamp for parking light
11 Control lamp, dipped lights
12 Indicator control lamp
13 Fuel tank display
14 Operating hours counter
15 Battery voltage
16 Error codes
1
2
3
4
5
12
11
10
9
8
7
6
13 14
15
16
