Maintenance 105
1201281 A | 24.07.2013
4 Place the new filter element in the proper position.
4.1 Observe the position of the locking cam.
5 Turn the filter element fully clockwise to the stop.

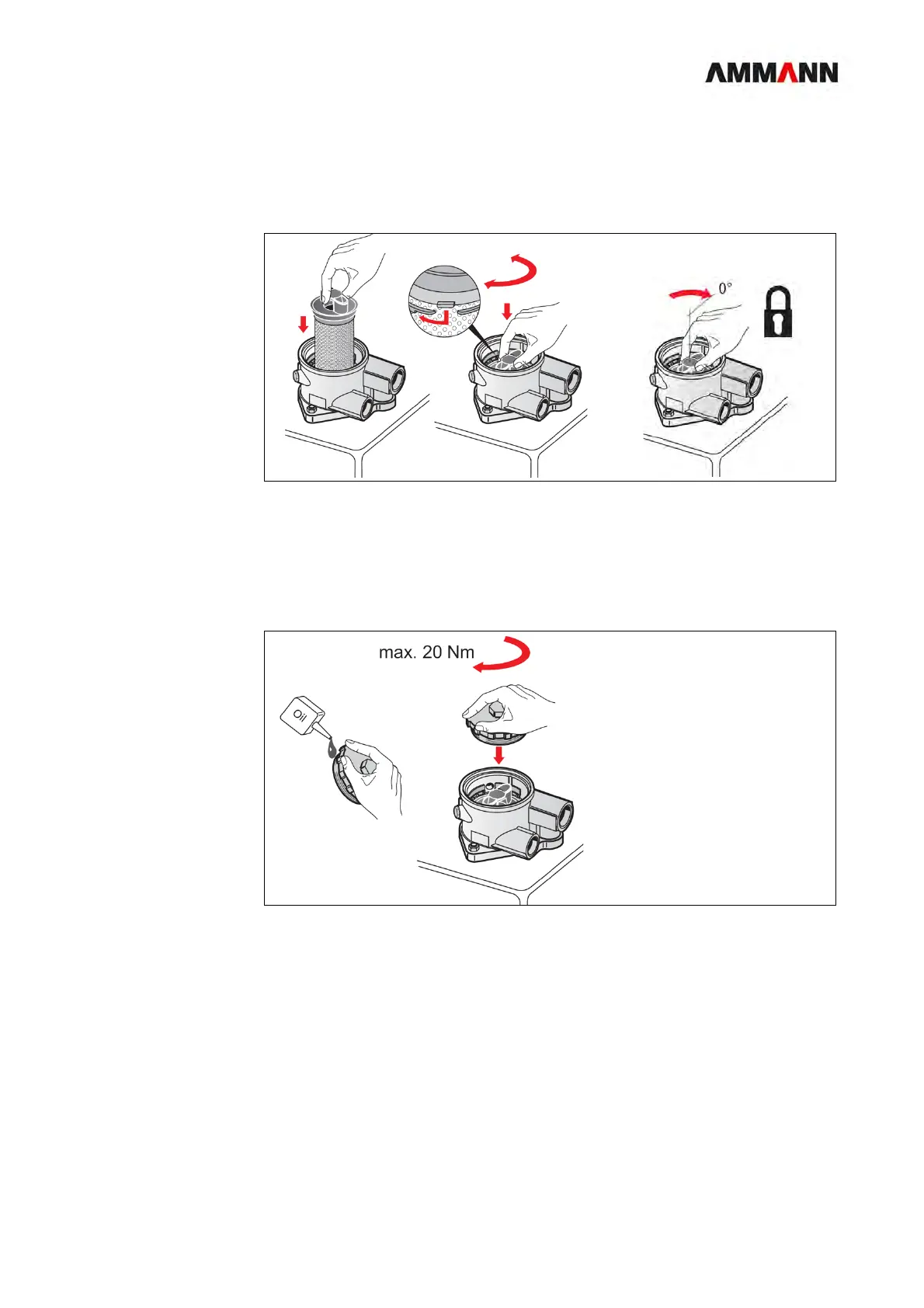

Fig. 9-16 Replacing the hydraulic oil filter, steps 4 to 6
6 Lightly oil the sealing ring on the filter lid.
7 Put the filter lid in place.
7.1 Tighten the lid with a torque wrench (max. torque, 20Nm).
Fig. 9-17 Replacing the hydraulic oil filter, steps 7 to 8
