AMP Mitre-Mite VN4 MemoryProgram - 4.3 Preliminary Arrangements; 4.4 Unpacking; 4.5 Machine Positioning; 4.6.1 Pneumatic Connection

11
4.6.3Electric connection of the control keyboard
Proceed as follows, in order to perform the connection of the control keyboard:
- Connect the “A” terminal of picture 4.6.3 together with the “a” terminal of picture 4.6.4
- Connect the “B” terminal of picture 4.6.3 together with the “b” terminal of picture 4.6.4
- Connect the “C” terminal of picture 4.6.3 together with the “c” terminal of picture 4.6.4

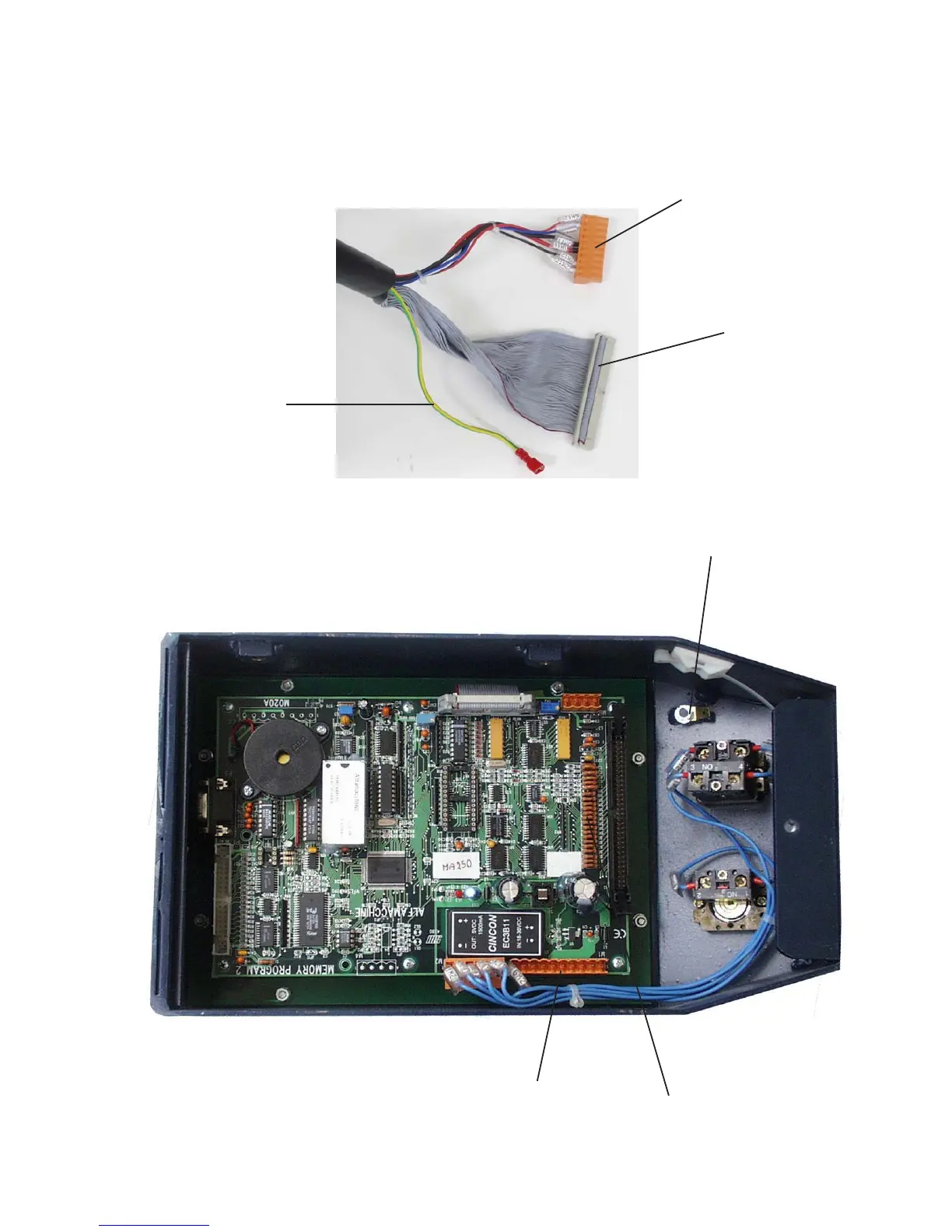

Picture 4.6.3
Picture 4.6.4
c
b
a
A
B
C
