IPSEC VPN
fatbox G3

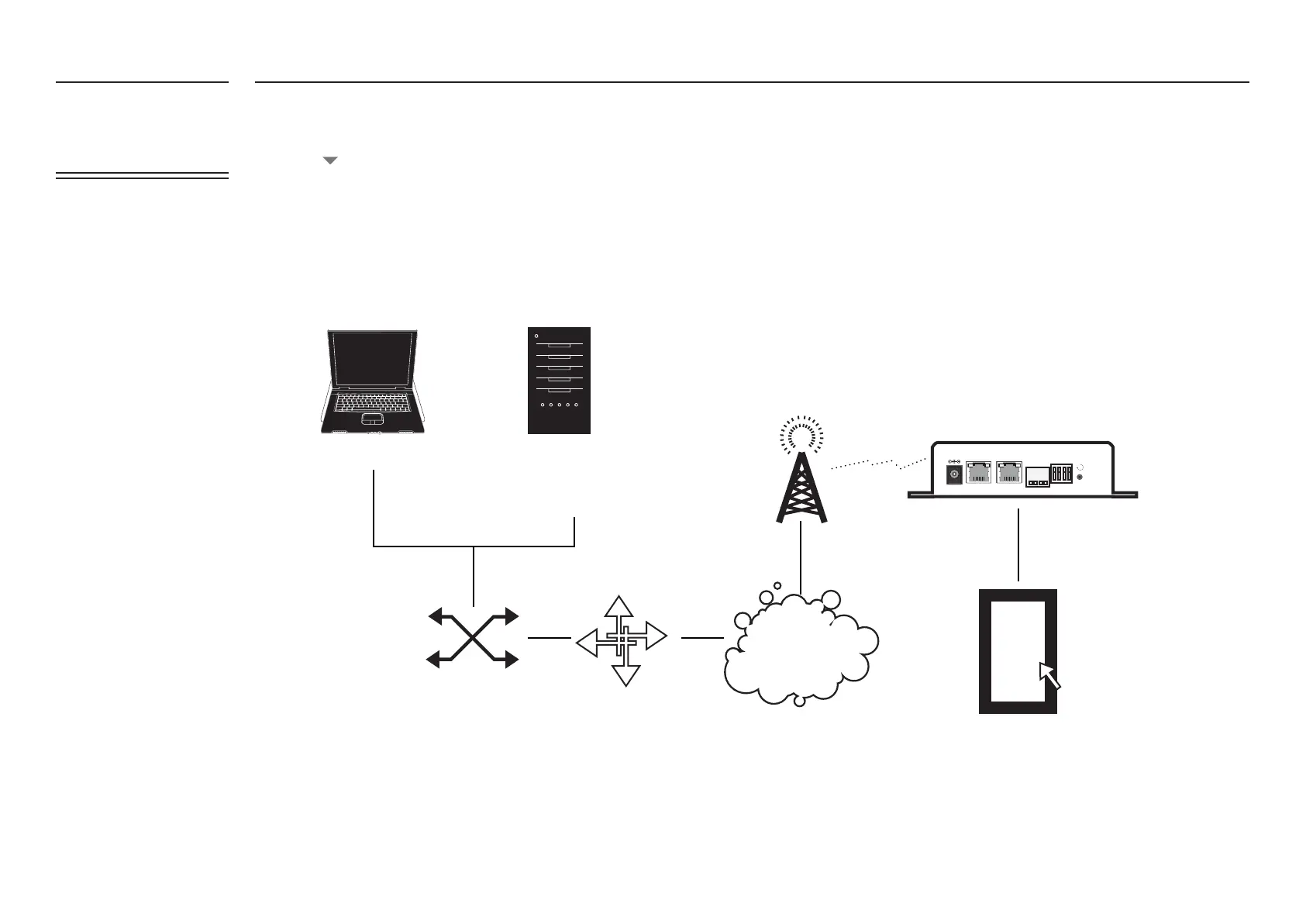

EXAMPLE. (Site-to-Site (L2L) IPSEC VPN Tunnel 192.168.1.0/24 -- 10.1.1.0/24)
After the remote end-point (e.g. a CISCO ASA520 security appliance with internet access and connected to the customer’s SCADA or
payment processing server) is congured to accept remote IPSEC site-to-site connections.
FATBOX G3 integrates
Strongswan 5.0 IPSEC
VPN client to enable secure
encrypted networking and
communications to your
remote Ethernet devices.
IPSEC VPN conguration can
be extremely complex to
deploy successfully, especial-
ly for users not from network
security sectors.
NET
R
et h1dc et h0 ser i al
di p
1 2 3 4
TX RX I N GND
D- D+
amplie d
engineerin g
fatbox G3
Workstation
Switch
Firewall
e.g. CISCO ASA5520
192.168.1.0/202.200.XXX.XXX
HSPA Cellular
ETH1
10.1.1.0/24
Remote Device
10.1.1.3
Data Server
e.g. SCADA
Server
192.168.1.20/24
fatbox G3
