AMSAFE SEATBELT AIRBAG SYSTEM
INSTALLATION, HANDLING AND SHIPPING INSTRUCTIONS E510629
REMOVAL REPLACEMENT AND INSTALLATION PROCEDURES
02-Aug-2013
Page 3005
makes for a very secure fit. Use a second back-off wrench for loosening. A strap wrench is
recommended to be used. DO NOT damage crimp end of gas hose or Inflator Fitting if using
any type of locking pliers.
CAUTION
: IF REPLACEMENT OF THE AIRBAG BELT(S) IS NOT IMMEDIATELY
POSSIBLE, COVER THE INFLATOR FITTING GAS HOSE CONNECTOR TO
PROTECT FROM DEBRIS.
(5) Remove Airbag Belt and Buckle Belt from seat belt shackles.
(6) Disconnect the Cable Interface Assembly from the EMA by depressing locking mechanism on
the Cable Interface Assembly EMA connector (Figures 12) and releasing connector halves.

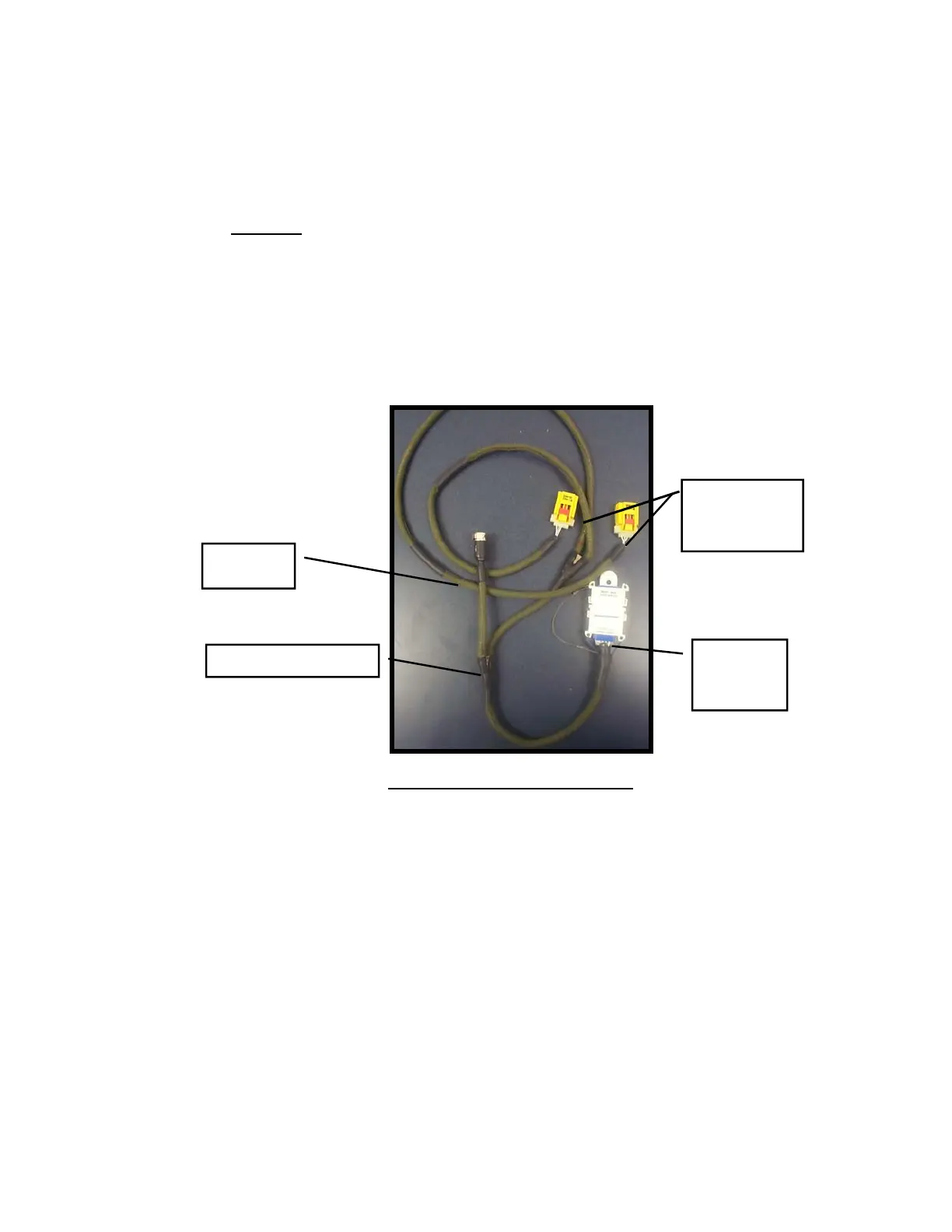

Figure 12: Cable Interface Assembly
Cable Interface Assembly
Diagnostic
Connector
and Cover
Inflatable Lap
Belt Assembly
Connectors
EMA
Connector
To Next Page
