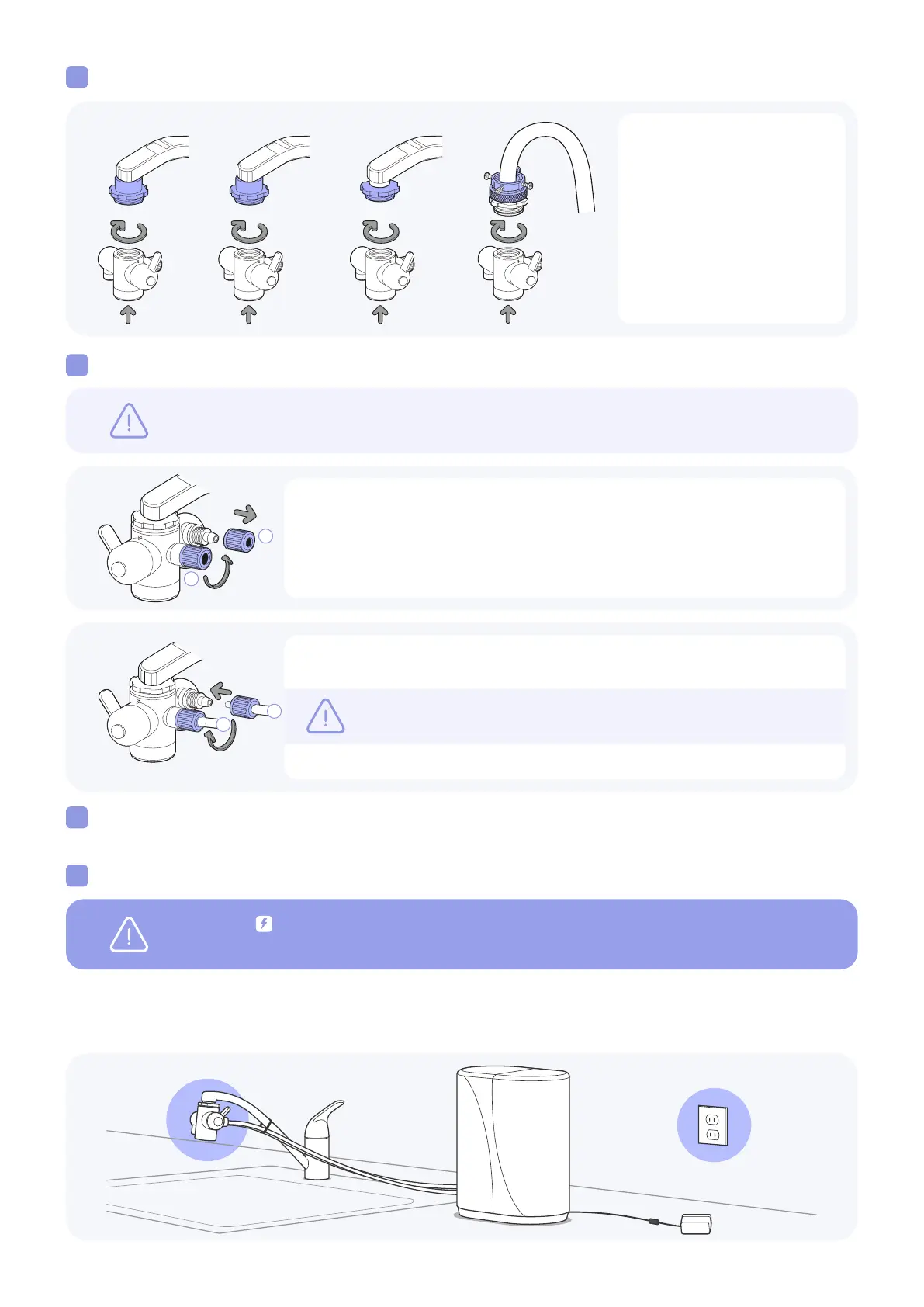

Attach the diverter to the adapter
Optional Clean up
a. Use the tie straps to secure the tubing to the tap.
Connect the Water Purier Tubing
Attach the tubing to the diverter
3
5
6
4
a. Press and hold
the diverter up to
the tap/adapter and
screw the plastic ring
onto the diverter by
hand.
a. Remove both textured nuts exposing both the large and small barbs.
Slide the large textured nut onto the end of the large tube (1), and the
small textured nut onto the end of the small tube (2).
The threads of the nuts face the ends of the tubes.
a. Position the eSpring™ Pro Water Purier in a desired location where the tubing from the tap
or water supply valves reaches the Water Purier and the Power Adapter reaches an outlet with
continuous power.
b. Firmly push the large tube (1) onto the large barb and the small
tube (2) onto the small barb.
c. Screw the nuts onto the barbs and hand tighten 2.
IMPORTANT: Do not try to connect tubes to the diverter unless nuts are mounted.
WARNING : RISK OF ELECTRICAL SHOCK. MAKE SURE THAT THE UNIT IS NOT
PLUGGED INTO AN ELECTRICAL OUTLET TO PREVENT SHOCKS.
CAUTION: Do not try to pull the tubing o the barbs as
damage will result.
13
1
1
2
2
DA B C
To Next Page
