AMX DGX800-ENC User Manual

Enova DGX Dante™ Audio Switching Boards
132
Hardware Reference Manual – Enova DGX 100 Series Digital Media Switchers
System Examples
The examples below show typical uses for the connection of Dante network(s) to an Enova DGX via the Dante Audio Switching
Boards. Enova DGX systems with Dante Audio Switching Boards are designed to route audio through the system in three ways:
Daisy Chain Topology (default) – Dante ASB Input and Output boards are connected one to the other through the system,
reducing cable requirements. Using the daisy chain topology requires changing the configuration in Dante Controller
(Network Configuration Tab > toggle Redundant/Switched) which is followed by a power cycle of the Dante ASBs.
Star Topology without Redundancy – Dante ASB Input and Output boards are connected to a common network (via the
Dante Primary Ethernet port) with or without other Dante devices. The Dante network is available to both send and receive
to and from Dante ASB Inputs and Outputs. Control of signal paths into and out of the Enova DGX is provided by the System
Configuration interface (see page 173) while control of signals paths to and from the Dante network is available through
Dante Controller software (available at www.audinate.com). Using the star topology requires changing the configuration in
Dante Controller (Network Configuration Tab > toggle Redundant/Switched) which is followed by a power cycle of the
Dante ASBs.
Star Topology with Redundancy – Dante ABS Input and Output boards are connected in exactly the same configuration as
above, except that there is an additional connection via the Dante Secondary Ethernet port on each board to a second
network. Direct control of the secondary (redundant) network is not possible while the primary network is active, though all
commands sent throughout the primary network are automatically applied to the secondary network. If the primary
network experiences an outage, the secondary network automatically routes to cover the outage until the primary network
is brought back online. Using the star topology requires changing the configuration in Dante Controller (Network
Configuration Tab > toggle Redundant/Switched) which is followed by a power cycle of the Dante ASBs.
Daisy Chain Topology
An Ethernet cable from a network switch (connected to any other Dante devices) connects to the Dante Primary Ethernet port on
the Dante ASB Input board then a second run connects from the Dante Secondary Ethernet port on the Dante ASB Input board to
the Dante Primary Ethernet port on the Dante ASB Output board.
In an Enova DGX 6400, the routing path is: network switch > left input board > right input board > left output board > right output
board.

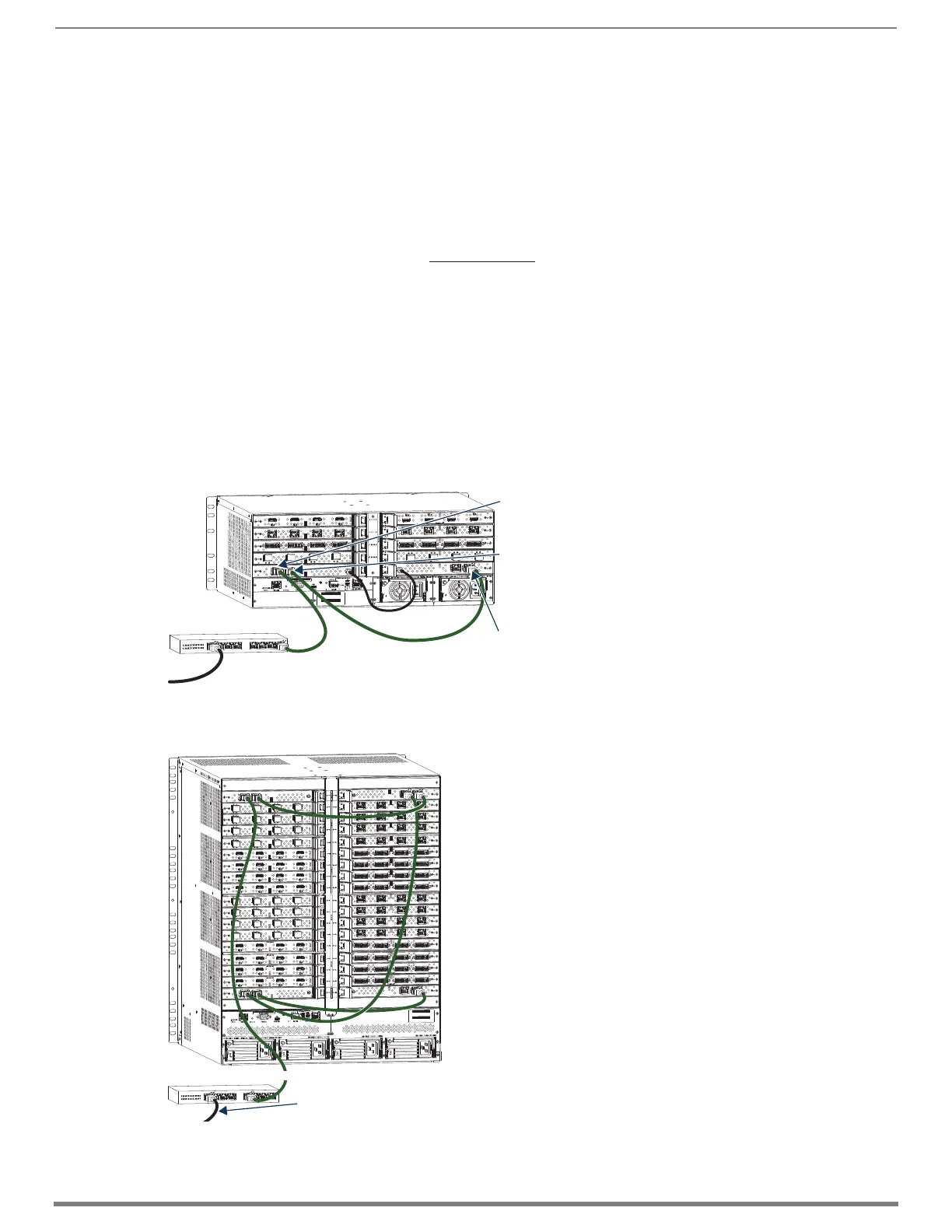

FIG. 73
Enova DGX Dante Audio Switching Boards in Enova DGX 1600 (daisy chain topology)
FIG. 74 Enova DGX Dante Audio Switching Boards in Enova DGX 6400 (daisy chain topology)
AC
DC
FLT
AC
DC
FLT
From network switch to Primary
Dante Ethernet port on Input Board
Primary network switch
To Primary network Dante devices
From Secondary Dante Ethernet
port on Input Board to Primary
Dante Ethernet port on Output
Board
Primary Dante Ethernet port on
Output Board is the last connection
in Daisy Chain topology
IMPORTANT: In daisy chain
topology, Dante ASBs must be
segmented from other Dante
devices such that the run
originating from a Dante
network switch travels directly
to the first Dante ASB in the
enclosure and concludes with
the last Dante ASB in the
enclosure.
To Primary network Dante devices
Primary network switch
Routing path:
1. Network switch to left input board Primary Dante port
2. Left input board Secondary Dante port to right input board Primary
Dante port
3. Right input board Secondary Dante port to left output board Primary
Dante port
4. Left output board Secondary Dante port to right output board Primary
Dante port
IMPORTANT: In daisy chain topology, Dante ASBs must be segmented from
other Dante devices such that the run originating from a Dante network
switch travels directly to the first Dante ASB in the enclosure and concludes
with the last Dante ASB in the enclosure.
