Enova DGX Dante™ Audio Switching Boards
133
Hardware Reference Manual – Enova DGX 100 Series Digital Media Switchers
Star Topology without Redundancy
Each Audio Switching Board in the enclosure is connected via the Dante Primary Ethernet port to a common network.
Star Topology with Redundancy
In addition to each Dante Audio Switching Board being connected via the Dante Primary Ethernet port to a common network, each
Dante ASB is connected via the Dante Secondary Ethernet port to a second network (the primary and secondary networks must not
be connected).

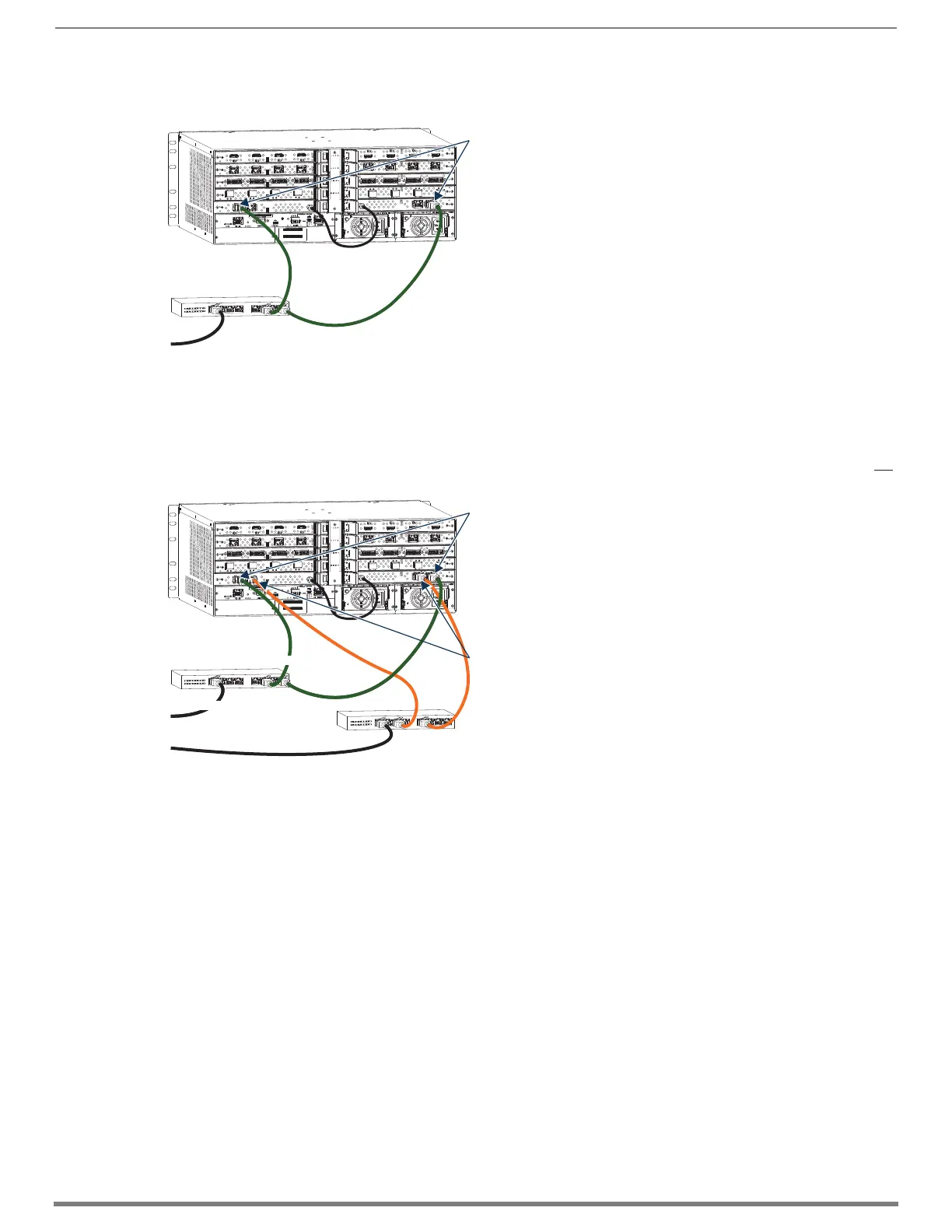

FIG. 75
Enova DGX Dante Audio Switching Boards in Enova DGX 1600 (star topology setup)
FIG. 76 Enova DGX Dante Audio Switching Boards in Enova DGX 1600 (star topology setup with full redundancy)
AC
DC
FLT
AC
DC
FLT
Primary Dante Ethernet
connections
Primary network
switch
To Primary network Dante devices
AC
DC
FLT
AC
DC
FLT
Primary Dante Ethernet connections
Redundant network switch
Redundant Dante Ethernet connections
To Redundant network Dante devices
To Primary network Dante devices
Primary network switch
