Hardware Reference Manual – Enova DGX 100 Series Digital Media Switchers
Enova DGX 3200
Enova DGX 6400
Rear View Components
Input and output boards (some slots may be empty, depending on the configuration)
Expansion boards (optional)
CPU/Control board
Enova DGX 800/1600/3200: two standard redundant power supplies
Enova DGX 6400: four standard power supplies (fourth power supply provides redundancy)
Serial number
MAC address
The following sections briefly introduce the hardware on the rear of the enclosure.

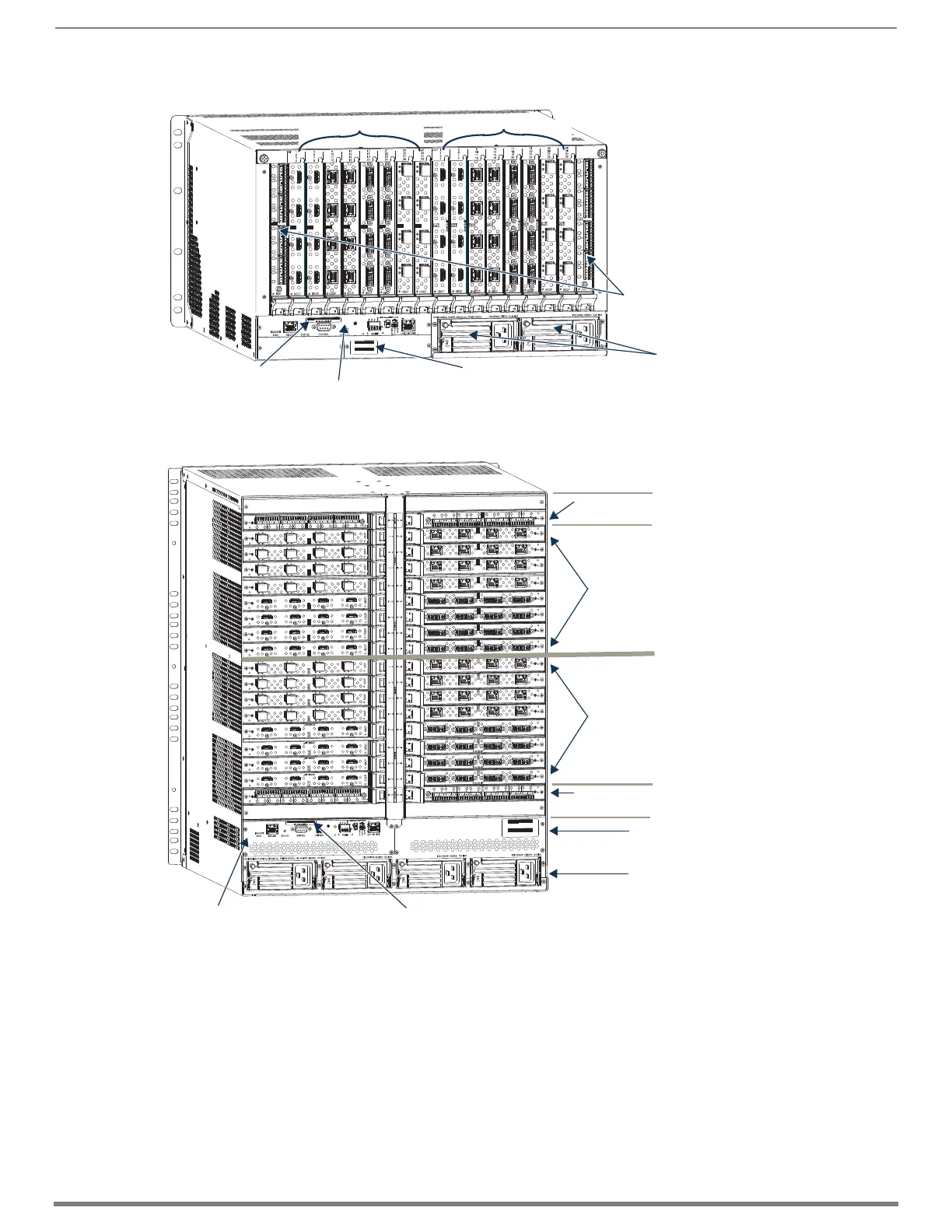

FIG. 5
Rear view of a fully loaded Enova DGX 3200 enclosure with two expansion boards (Audio Switching Boards shown)
FIG. 6 Rear view of a fully loaded Enova DGX 6400 enclosure with four expansion boards (Audio Switching Boards shown)
Enova DGX 3200 Rear
View
Output boards (up to 8)
Input boards (up to 8)
Expansion boards in expansion slots
(Audio Switching Boards shown)
MAC address
CPU/Control board
Serial number
Power supplies
NOTE: If the enclosure has any empty input
or output board slots (which are numbered
for additional boards), they can be used to
expand the system. If the expansion board
slots are empty, expansion boards can be
added.
Enova DGX 6400 Rear
View
MAC address
CPU/Control board
Serial number
Power supplies
Expansion boards
(Audio Switching Boards shown)
Expansion boards
(Audio Switching Boards shown)
Input boards
Output boards
(up to 16 in input
board slots)
(up to 16 in output
board slots)
NOTE: If the enclosure has any
empty input or output board slots
(which are numbered for
additional boards), they can be
used to expand the system. If the
expansion board slots are empty,
expansion boards can be added
(see applicable board chapter for
restrictions).
