CPU/Control Board
The CPU/Control board is on the left rear of the enclosure, directly below the input connectors on the Enova DGX 800/1600/3200
and directly below the left bank of output connectors on the Enova DGX 6400.
Each CPU includes the following slot, port, button, and toggle options (left to right):
SD card slot – ships with an installed MicroSD memory card for future functionality
ICS LAN 10/100 port (RJ-45) – for communication with endpoint devices in auto-setup configuration over ICS LAN (private
network). Do not use for a TCP/IP connection or linking of enclosures. (see page 51)
Control port* (DB-9, RS-232) – for attaching an external serial control device (see page 285)
Control port* (USB mini-B) – for attaching an external control device (see page 285)
ID Pushbutton – for selecting static IP or DHCP, resetting the factory defaults, and restoring the factory firmware image
(see page 59)
AxLink port – for supporting AMX AxLink devices (see page 57)
Config DIP switch (2-position toggles) – for setting the Program Run Disable (PRD) mode (see page 60)
Program port (USB mini-AB) – for establishing a connection from the integrated NetLinx NX Master to the PC’s COM port
(see page 56)
LAN 100/1000 port (Ethernet RJ-45) – for connecting from the integrated NetLinx NX Master to a public LAN (see page 51)
for all runtime control, NetLinx programming, etc.
* The two Control ports provide direct control of matrix switcher processing (they do not work on the same layer of control as the
integrated NetLinx NX Master, which uses the LAN 100/1000 and Program ports).
Each CPU includes five LED indicators (left to right):
System Status LED (to the left of the Control ports) – for indicating system status (see page 50)
AxLink LED (to the right of the AxLink port) – for indicating AxLink data activity (see page 57)
Status, Output, and Input LEDs (below Program connector) – for indicating system communication status and indicating
when data is sent and received (for modes and blink patterns, see page 57)
NOTE: For an overview of the integrated NetLinx NX Master’s functionality, see page 25.

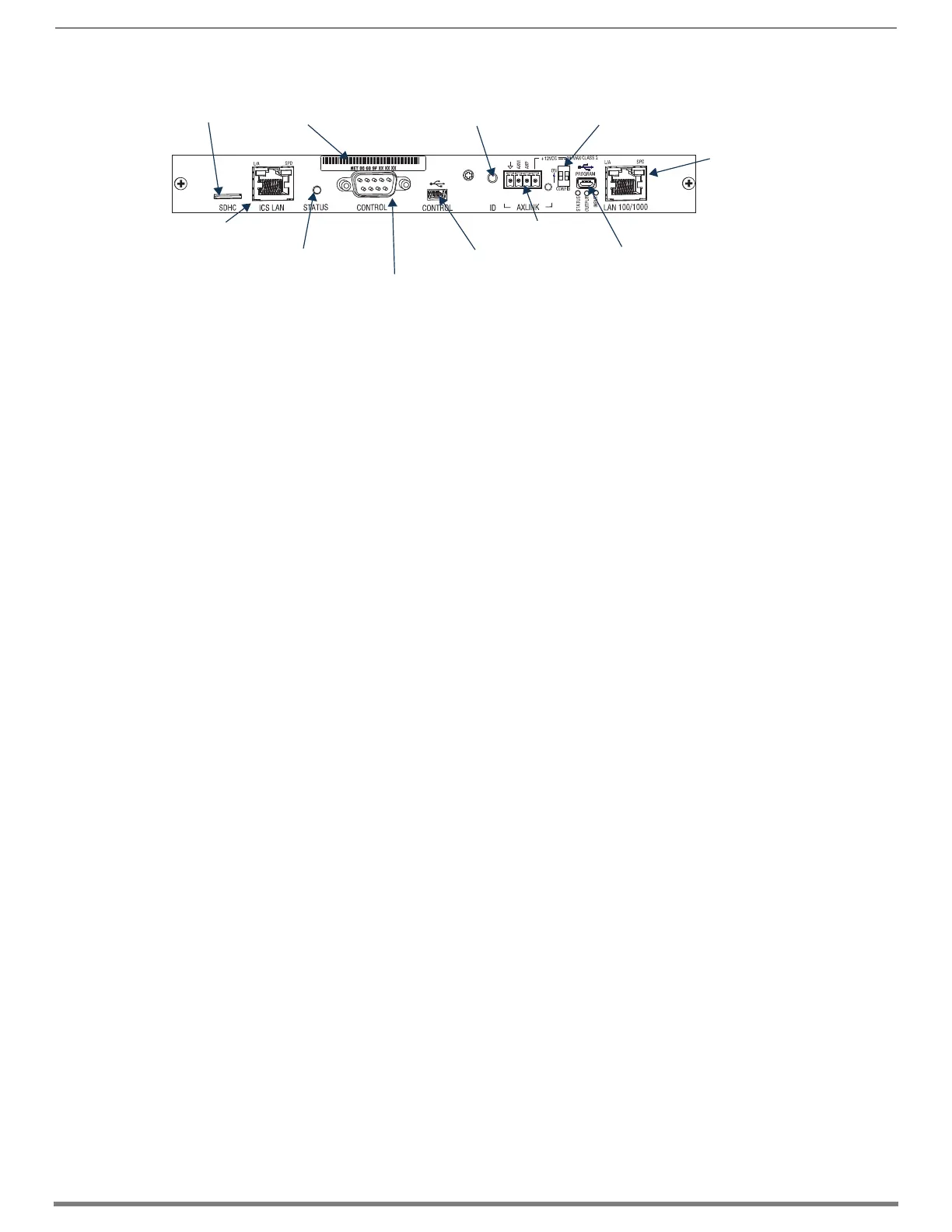

FIG. 7
Enova DGX 100 Series CPU/Control board
Control (USB mini-B) port
System Status indicator
ICS LAN 10/100 port
Control (DB-9, RS-232 serial) port
AxLink port
Program (USB mini-AB) port
LAN 100/1000 port
Config DIP switches
ID Pushbutton
SD card slot
MAC address
