Product Overview and General Specifications
21
Hardware Reference Manual – Enova DGX 100 Series Digital Media Switchers
Enova DGX 800
Enova DGX 800 enclosures have four horizontal I/O board slots (two slots each for input and output boards with four connectors
each), allowing for a maximum configuration of 8x8.
Enova DGX 1600
Enova DGX 1600 enclosures have eight horizontal I/O board slots (four slots each for input and output boards with four connectors
each), allowing for a maximum configuration of 16x16.
Enova DGX 3200
Enova DGX 3200 enclosures have 16 vertical I/O board slots (eight slots each for input and output boards with four connectors
each), allowing for a maximum configuration of 32x32.

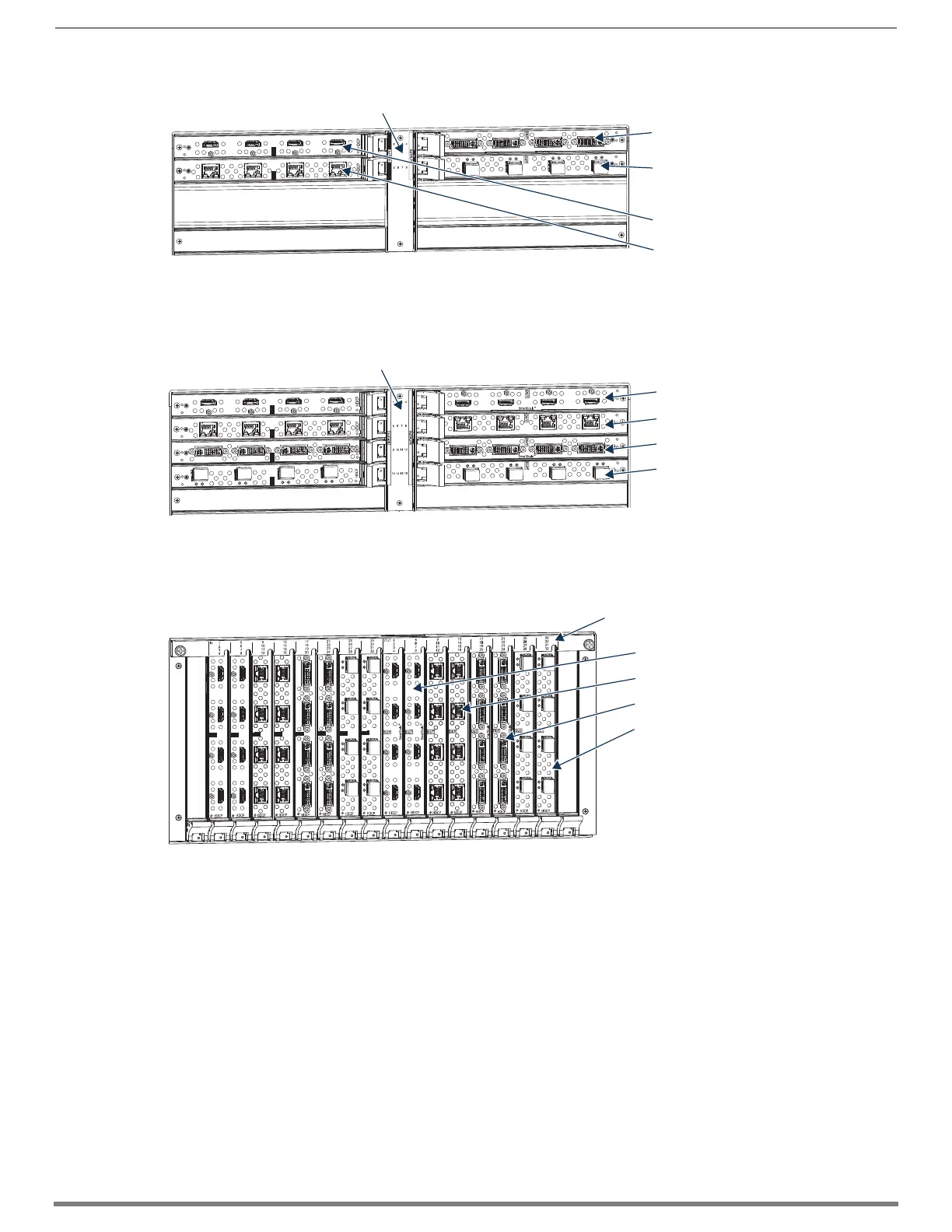

FIG. 9 HDMI and DXLink Twisted Pair Input Boards and DVI, DXLink Fiber Output Boards shown
FIG. 10 HDMI, DXLink Twisted Pair, DVI, and DXLink Fiber Input and Output Boards shown
FIG. 11 HDMI, DXLink Twisted Pair, DVI, and DXLink Fiber Input and Output Boards shown
DXLink Twisted Pair Board
HDMI Board
DXLink Fiber Board
DVI Board
Output boards
Numbering plate
Input boards
Output boards
Numbering plate
Input boards
DXLink Fiber Board
DVI Board
DXLink Twisted Pair Board
HDMI Board
Output boards
Input boards
Numbering plate
HDMI Board
DXLink Twisted Pair Board
DVI Board
DXLink Fiber Board
