Hardware Reference Manual – Enova DGX 100 Series Digital Media Switchers
Enova DGX 6400
Enova DGX 6400 enclosures have 32 horizontal I/O board slots (16 slots each for input and output boards with four connectors
each), allowing for a maximum configuration of 64x64.
For information on the boards included in your system, including connector types, cabling directions, installation considerations,
and specifications, see the specific board chapter in this manual.
HDMI Boards – page 62
DVI Boards – page 74
DXLink Twisted Pair Boards – page 82
DXLink Twisted Pair 4K Boards – page 97
DXLink Fiber Boards – page 109
If a system has empty input or output board slots (which are numbered for additional inputs and outputs), the slots can be used to
expand the system. For information on adding or replacing boards, see “Appendix A – Adding or Replacing Boards” on page 234.
NOTE: Two types of audio expansion boards are also available. They can be used in conjunction with HDMI, DVI, DXLink Twisted Pair,
DXLink Twisted Pair 4K, and DXLink Fiber Boards and route audio signals into, out of, or through the system (see “Expansion Boards”
on page 12).
Input and Output Board Connectors
The connectors on the input and output boards are the attachment points for source and destination devices that connect to the
system. Viewed from the rear of the enclosure, the input connectors (for attaching sources) are on the left, and the output
connectors (for attaching destinations) are on the right, with the exception of the DGX 6400 enclosure which has inputs on top and
outputs on bottom.
Input and output channel numbers correspond to the connectors and are located as follows:
Enova DGX 800/1600 – on the vertical numbering plate (metal strip) between input and output connectors.
Enova DGX 3200 – on the horizontal numbering plate (metal strip) directly above connectors.
Enova DGX 6400 – on the vertical numbering plate (metal strip) between left and right input and left and right output
connectors.
NOTE: For information on the board connectors on the expansion boards, see the chapter for the specific type of expansion board.

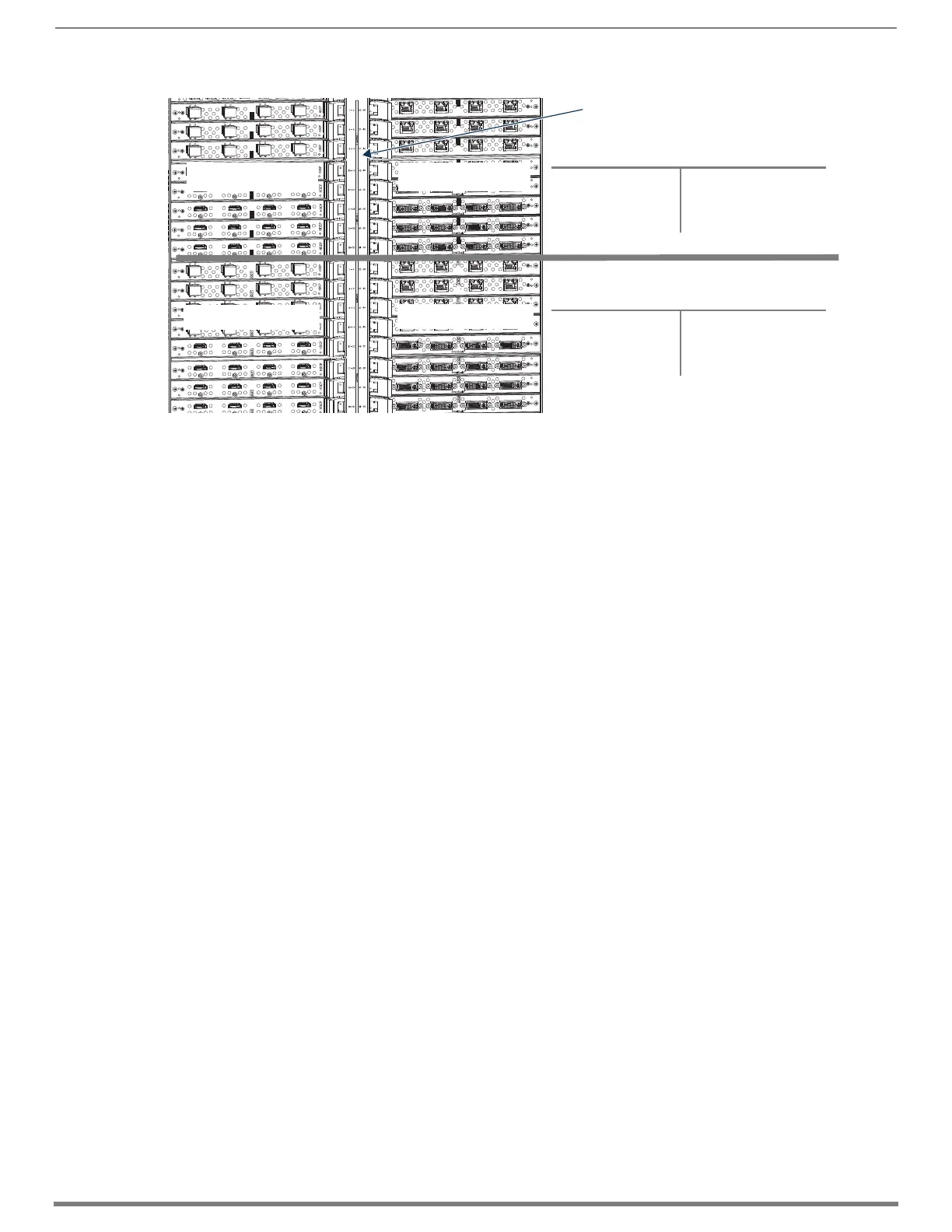

FIG. 12
HDMI, DVI, DXLink Twisted Pair, and DXLink Fiber Input and Output Boards shown
Enova DGX 6400
boards
Output boards located in upper 16 board slots
4 HDMI
2 DXLink Fiber MM-D
2 DXLink Fiber SM-D
4 DVI
4 DXLink Twisted Pair
4 HDMI
2 DXLink Fiber MM-D
2 DXLink Fiber SM-D
4 DVI
4 DXLink Twisted Pair
8 Right
8 Left
8 Right
8 Left
Outputs
Inputs
Numbering plate
Input boards located in upper 16 board slots
Outputs
Inputs
