Appendix F – DGX Configuration Software
276
Hardware Reference Manual – Enova DGX 100 Series Digital Media Switchers
(B) To set a standard EDID preset:
1. Under Resolution Source, click Standard.
2. Under Standard Presets, select the desired timing mode from the Timing Mode drop-down list.
3. Under Standard Presets, select the resolution from the Available Display Modes drop-down list.
4. In the device tree on the left, select an output to send the resolution information to that output. Multiple outputs may be
selected.
5. Click Apply to transmit the selected information to the output(s). This action is temporary until settings are stored on the
connector(s) in Step 7. Otherwise, the settings last only until power is cycled. The display re-syncs with the output(s).
6. Verify that the display is satisfactory before proceeding.
7. Click Save to store the currently displayed settings to the connector and persist them in memory.
(If the settings have been changed since clicking Apply, the newest settings will be saved.)

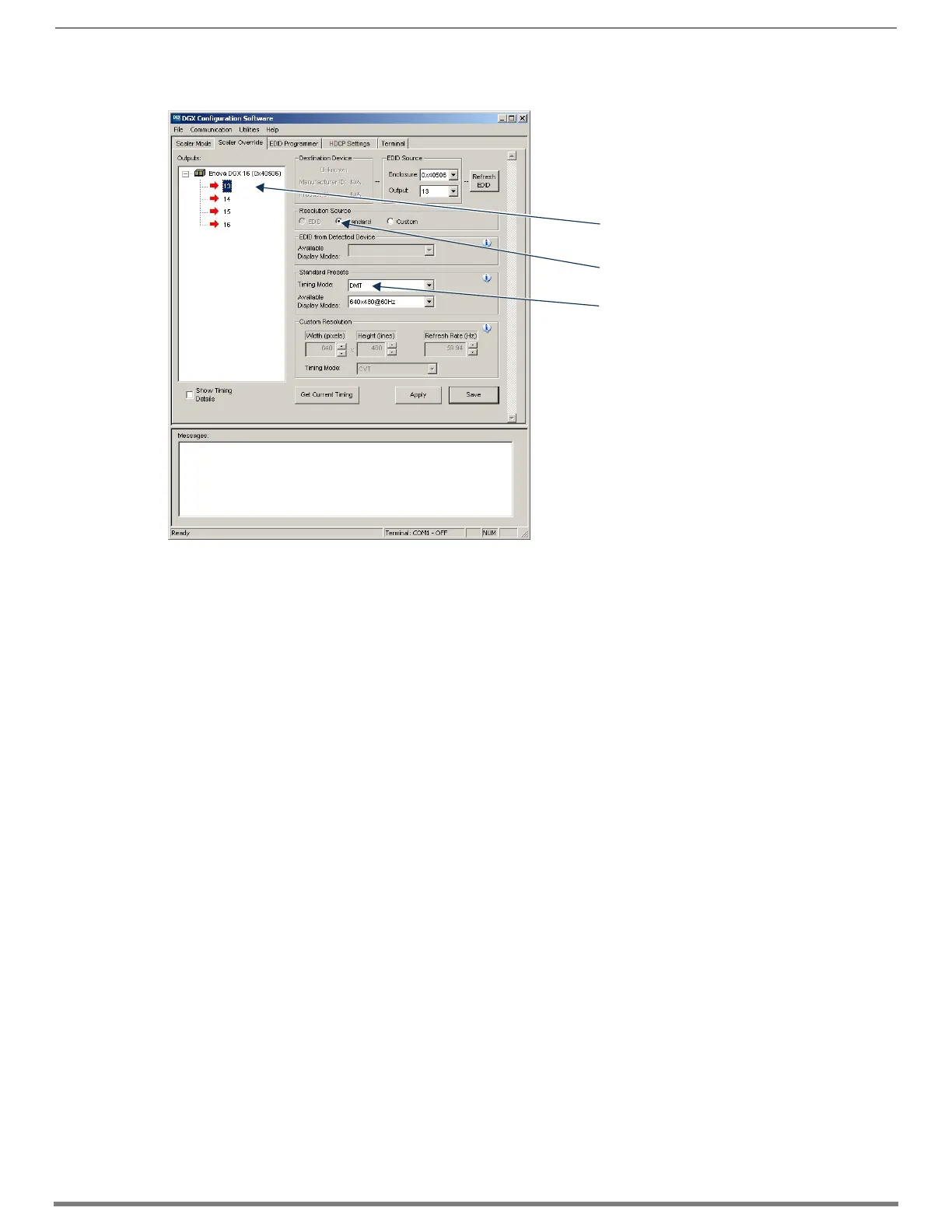

FIG. 147
Scaler Override view with Standard Presets selected
Device tree with
Outputs
Standard selected
Standard Presets / Timing Mode options:
• DTM (Discrete Monitor Timing)
• GTF (General Timing Formula)
• CVT (Coordinated Video Timing)
• CVT-RB (Coordinated Video Timing -
Reduced Blanking)
• CTA (Consumer Technology Association)
Standard 861D for HDTV
To Next Page
