14
4 Moving the Bale Wrapper
Short Distances
Your bale wrapper can be moved very short distances using its own traction. Start the engine
and use the control levers (Figure 4.1). (There are 4 ways to start the HONDA engine: manual
ignition, electronic ignition with key, electronic ignition with remote control, and electronic
ignition using the same remote control as for remote steering.)

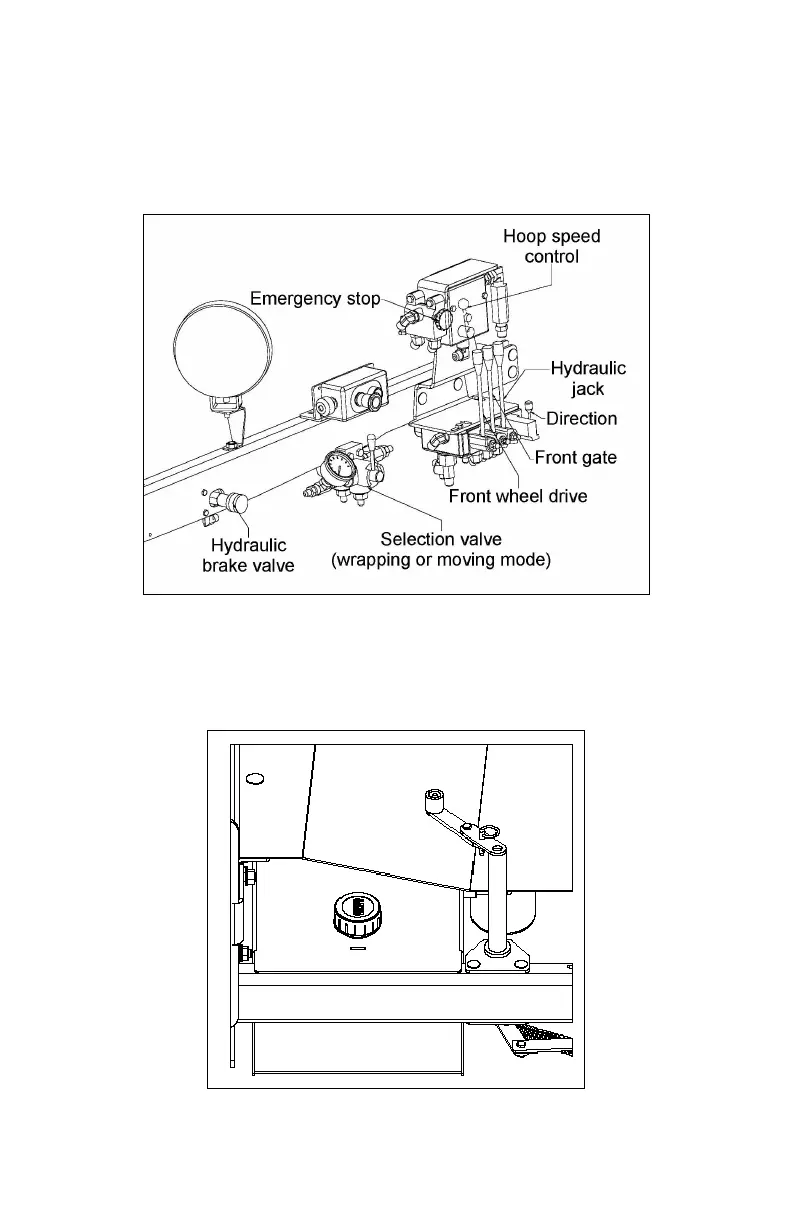

Figure 4.1 Controls
When the pusher is in the rear position, it holds the engine throttle lever in “slow” position.
Remove the ring pin at the center of the lever to accelerate the engine while moving. Store the
pin in one of the holes. Once you are done moving your bale wrapper, place the lever and the
ring pin back in rest position (Figure 4.2).
Figure 4.2 Engine throttle lever
