8 Adjustment Procedures
Factory-Made Automatic System: In Case of Problem Check Adjustments
Follow steps (8.1)-(8.2)-(8.3)-(8.4)-(8.5). Refer to the numbers in the illustrations.

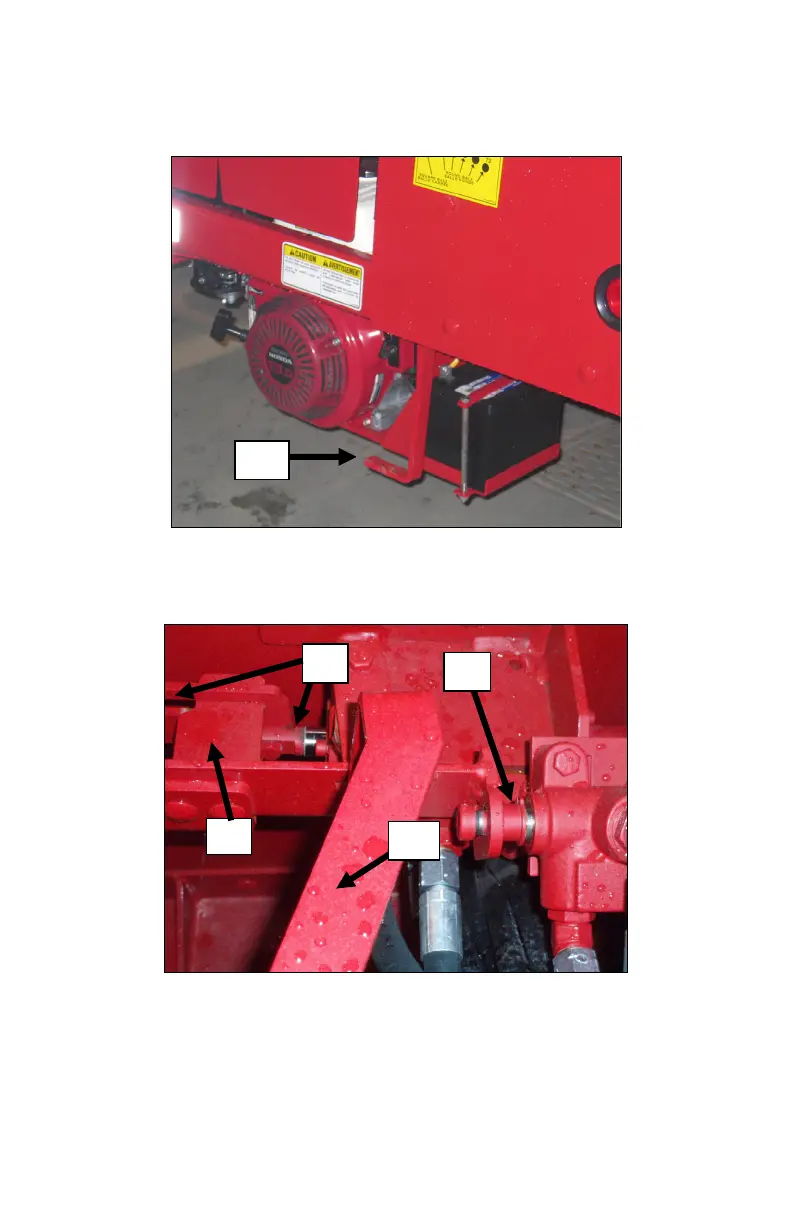

Figure 8.1 Start pedal
8.1 Press down on the start pedal located at the back of the bale wrapper, right next to the
Honda gasoline engine (Figure 8.1 #1). (Do not start the Honda engine.)
Figure 8.2 Hoop lever
8.2 Push the lever (Figure 8.2 #2) toward the rear of the bale wrapper to make the slide
come out of the valve (Figure 8.2 #8), then push the lever toward the front of the bale
wrapper until the plate (Figure 8.2 #9) very lightly touches the end of the slot in the part
(Figure 8.2 #3) without moving it.
1
3
2
8
9
