28

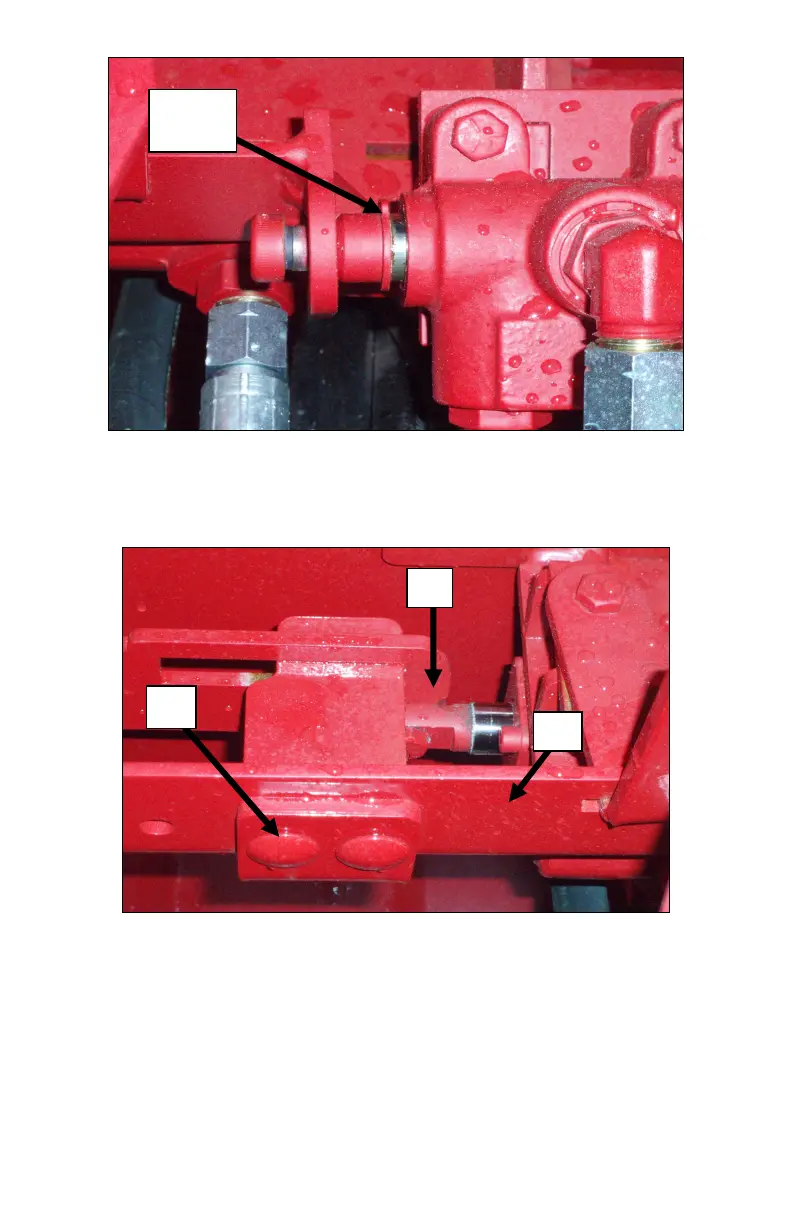

Figure 8.3 Gap
8.3 If the automatic system is correctly adjusted, you should obtain a distance of 3/16’’
(Figure 8.3 #4) between the snap ring and the body of the valve. If you do not obtain a
distance of 3/16’’, refer to the adjustment procedure that follows.
Figure 8.4 Transfer bar
8.4 To adjust the gap (Figure 8.3 #4) in the preceding illustration, you must unscrew the 2
carriage bolts (Figure 8.4 #5) and move the part (Figure 8.4 #6) so as to obtain the necessary
gap (Figure 8.3 #4), all while keeping the part (Figure 8.4 #7) at the end of the gap. Screw the
2 carriage bolts (Figure 8.4 #5) in place.
Very Important
8.5 To check that the adjustment has been completed correctly and that the necessary gap
(Figure 8.3 #4) is present, return to step 8.1.
4
3/16’’
5
6
7
