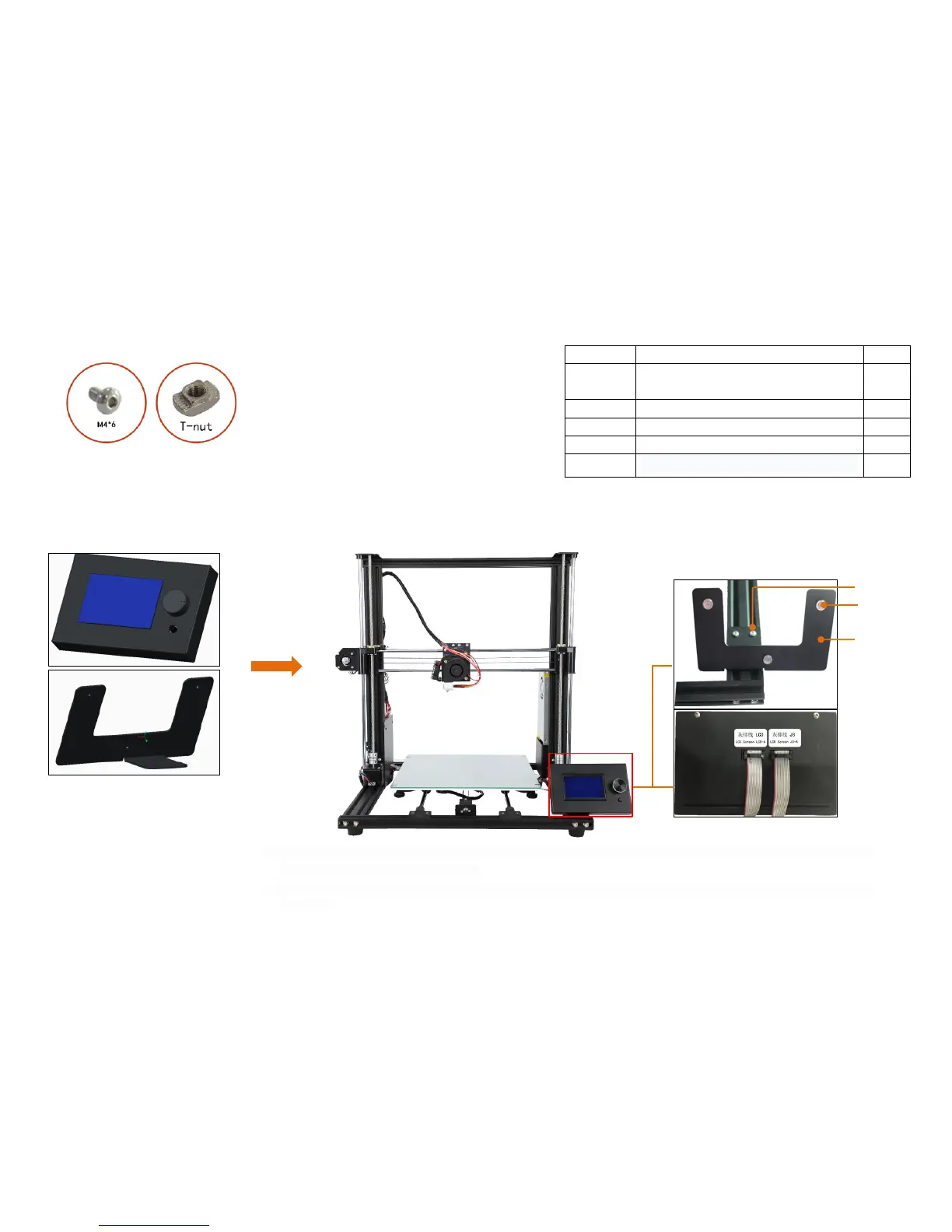

Anet A8 Plus - M4*8

Step 26
No.
Name
Qty.
1
Display screen
base
1
2
Display screen
1
3
T-nut M4
4
4
M4*6
4
5
Magnet
3
magnet
Display bas
e
M4*6
LCD
J3
Note: 1. The LCD / J3 wiring of the display screen corresponds to the socket screen printing ( LCD / J3 ) on the control panel.
Please do not connect the wrong wiring.
2. Put the display screen directly on the magnet after installation to complete the installation of the display screen and
components.
Before assembly
After assembly
