Anet A8 Plus - Guiding Rod Shaft Sleeve 2

Step 19
No.
Name
Qty.
1
Guiding rod shaft sleeve
2
2
M3*4 Black jackscrew M3*4
4
3
Z axis guiding rod fixed plate
2
4
M5*30 Socket hexagon cylindrical head
screw
4
5
End cap
2
6
X axis aluminum profile 472mm
1
M5*30
Guidi
ng rod
shaft
sleev
e
Z axis
guiding
rod
fixed
plate
End
cap

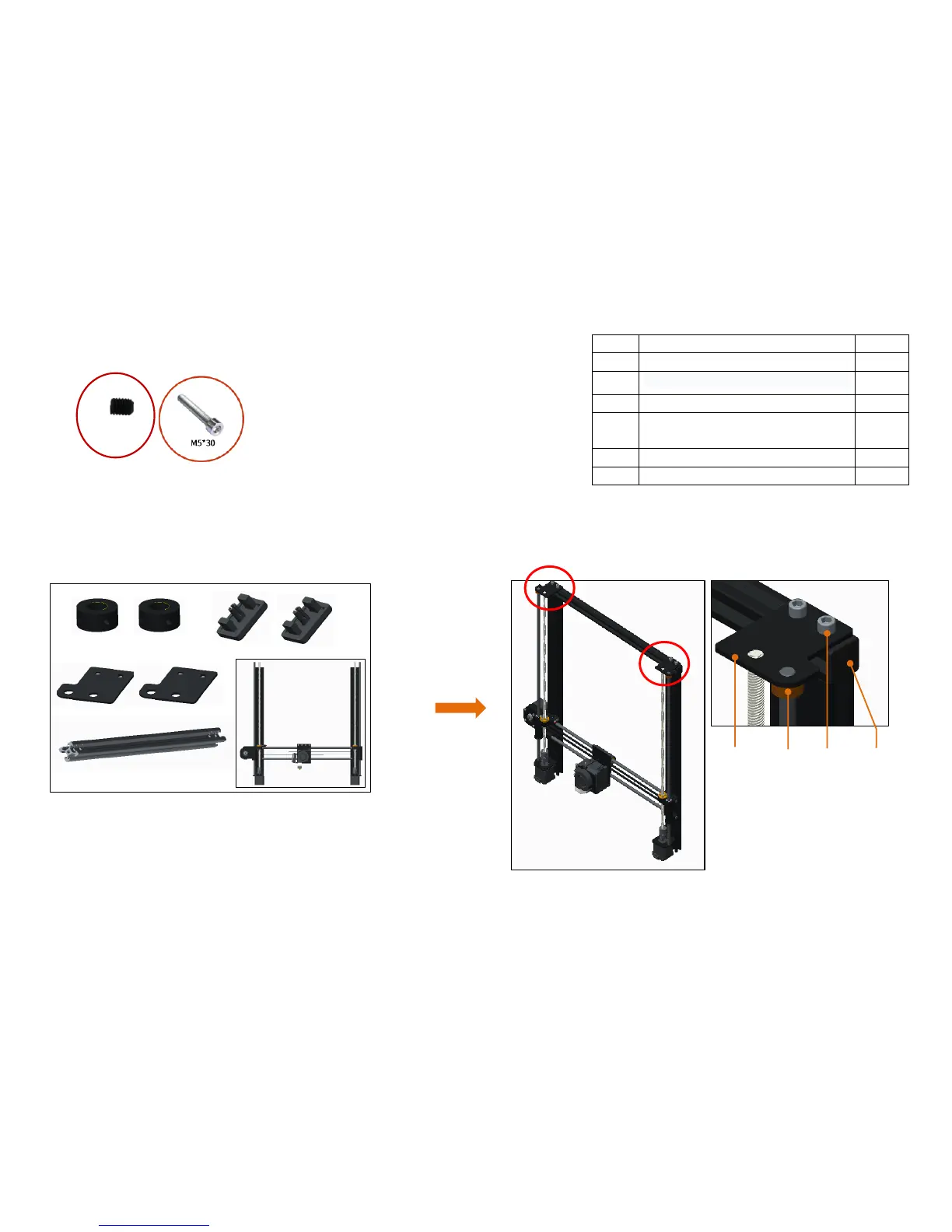

Note: Fix the guiding rod shaft sleeve with M3*4 black jackscrew
M3*4
Before assembly
After assembly
