Sample Program #2
One operation is required to complete this component. Part must be
extended a minimum of 2.75 inches from chuck jaws with stock size 3.00
inches diameter.
Refer to Figure 19-2. The program below shows a typical format used to
face and turn a component. A sub-program is shown for the Area Clear
Cycle (G73). The sub-program describes the Finish Profile of the
component.
TOOL REQUIRED
TOOL No.1
ROUGH TURN
START POINT OF SUB PROG.
3.0"
1.00"
2.60"
0.10" x 45 Deg. Chamfer
2.50"0.10" x 45 Deg. Chamfer
1
END POINT OF SUBPROGRAM
23
6
1.85"
1.25"
4
5
= START / END POINT OF EACH MOVE WITHI N THE CONTOUR
= START / END POINT OF SUB PROGRAM

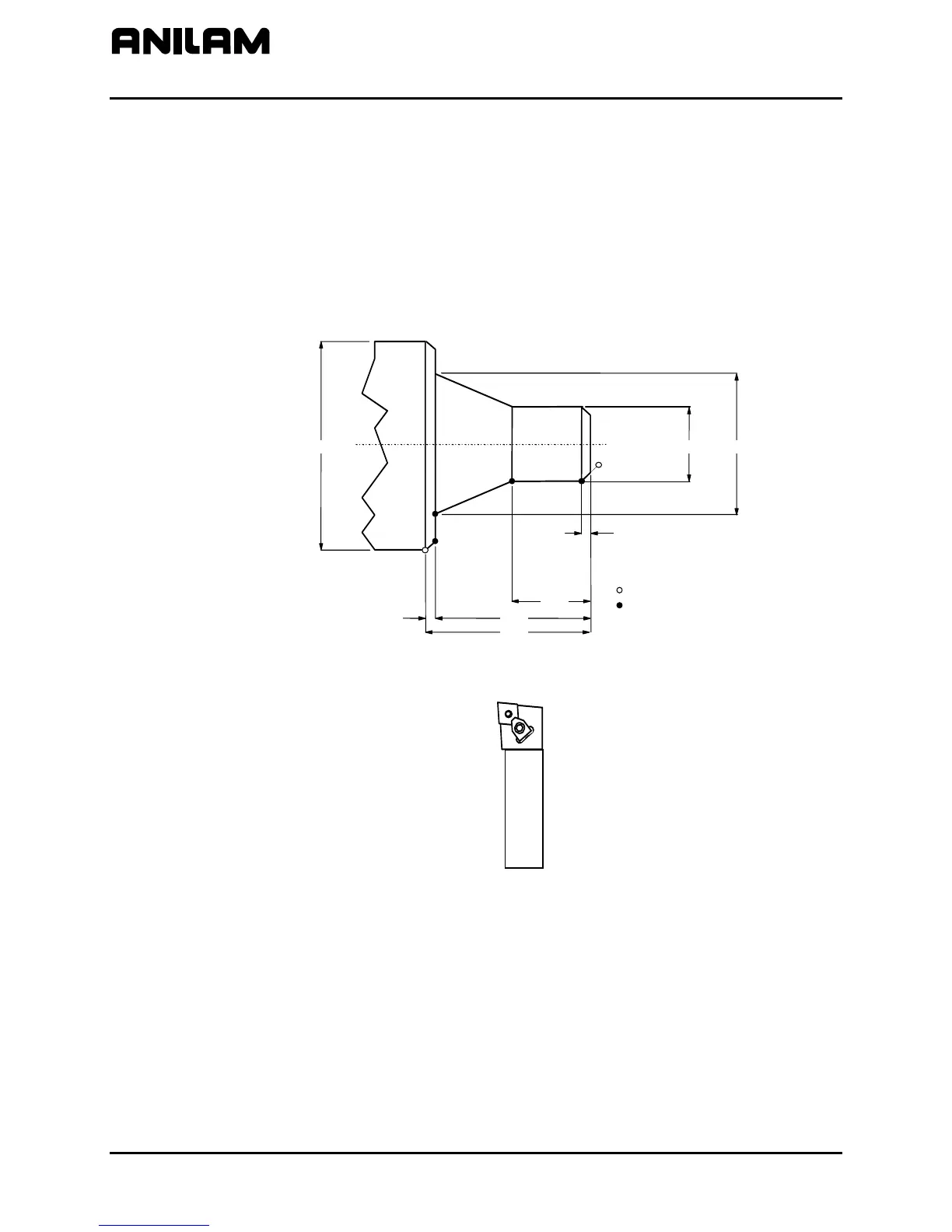

Figure 19-2, Layout for Sample Program #2
