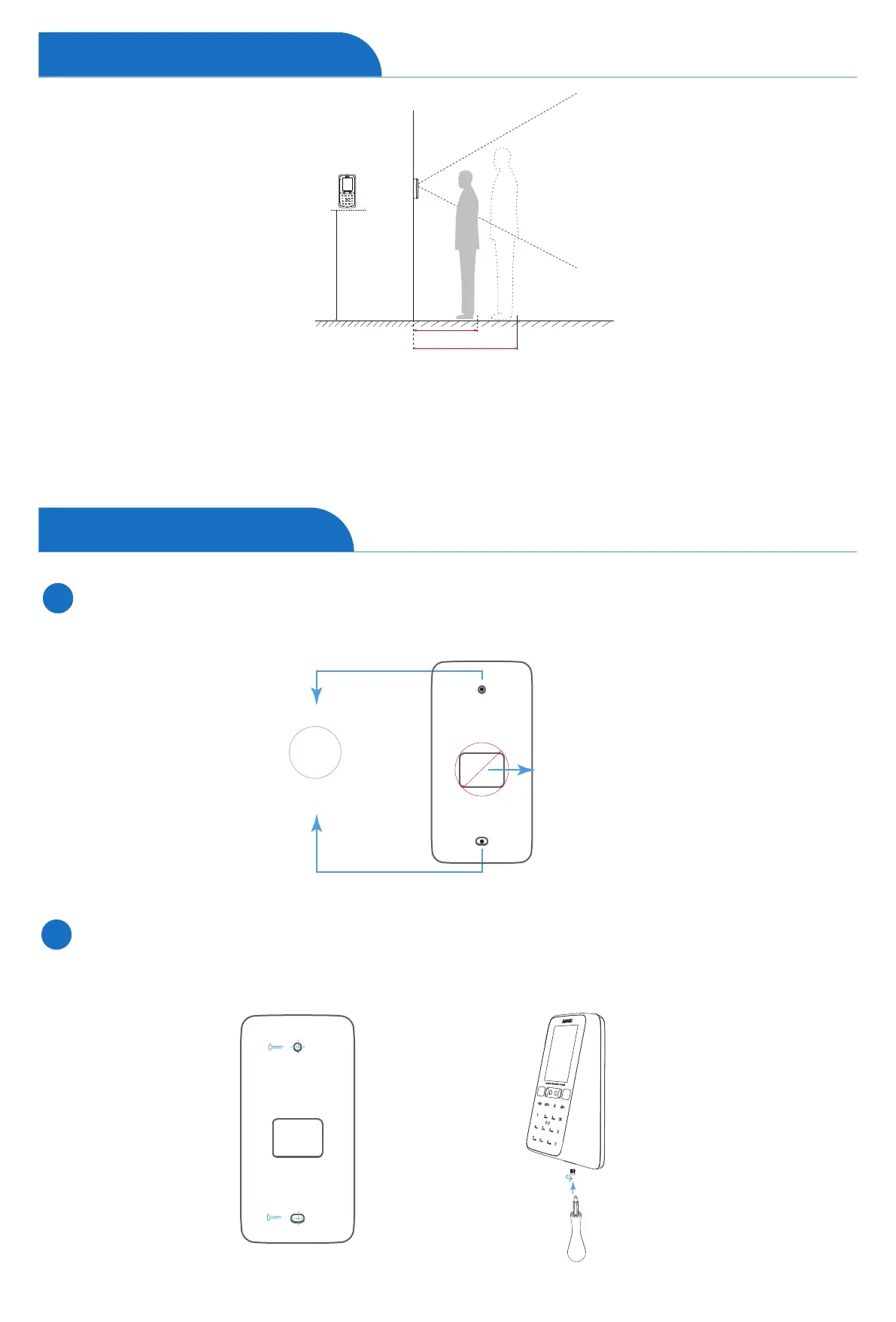

Fig.(1) Installation Position
Floor
120cm
(47.24”)
140cm
( 55.12”)
60cm(23.62”)
( Recommended Distance for Face Recognition)
100cm( 39.37”)
190cm
( 74.80”)
Suggested installation height (the distance between the lens and the ground is 1.2m( 47.24” ), as the
recognizable body height range, 0.6m( 23.62” ) distance away from the device, is 1.4-1.6m (55.12”
-63.00” ); the recognizable body height range, 1.0m( 39.37” ) distance away from the device, is
1.4-1.9m(55.12”-74.80“ ). (There are some deviations) .
1
Keep the mounting bracket parallel with the ground and 1.2m distance to the ground. Drill 2
screw holes on the wall according to the rmounting bracket ,
Expansion Pipe
Outlet Hole D= (1.77”)
Drill outlet hole for device wiring
45mm
Please punch out the tail lines from the outlet hole before installing the mounting bracket and
use the screws to fix the mounting bracket on the wall. Use the screwdriver to tighten thescrew
follow the direction indicated, to complete the installation.
2
2
Screw
Screw Hole
Screw Hole
Installation Position
Installation Steps
