AODELAN E2 - Page 27

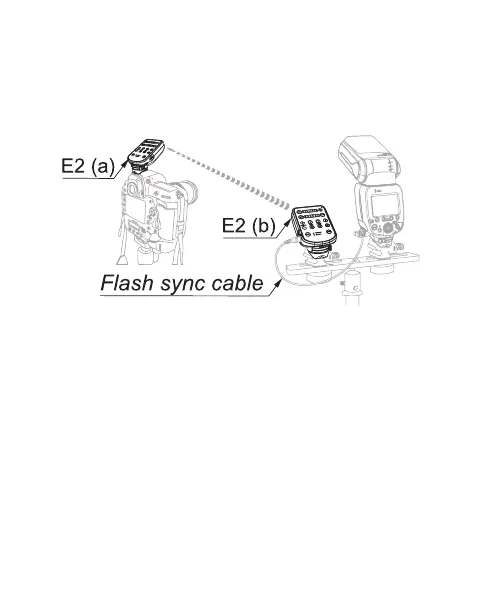

2. Synchronize the ash light without
built-in AODELAN radio system.
(Figure 6)
(Figure 6)

Two E2 units are required – E2 (a)
and E2 (b).

Set E2 (a) to Transmit Mode (Mode
Indicator [7] <TRANSMIT> blinks
green) and connect it to the camera
(via hot shoe or ash sync cable).
• 26 •
-
+
