Hardware Installation
2-16

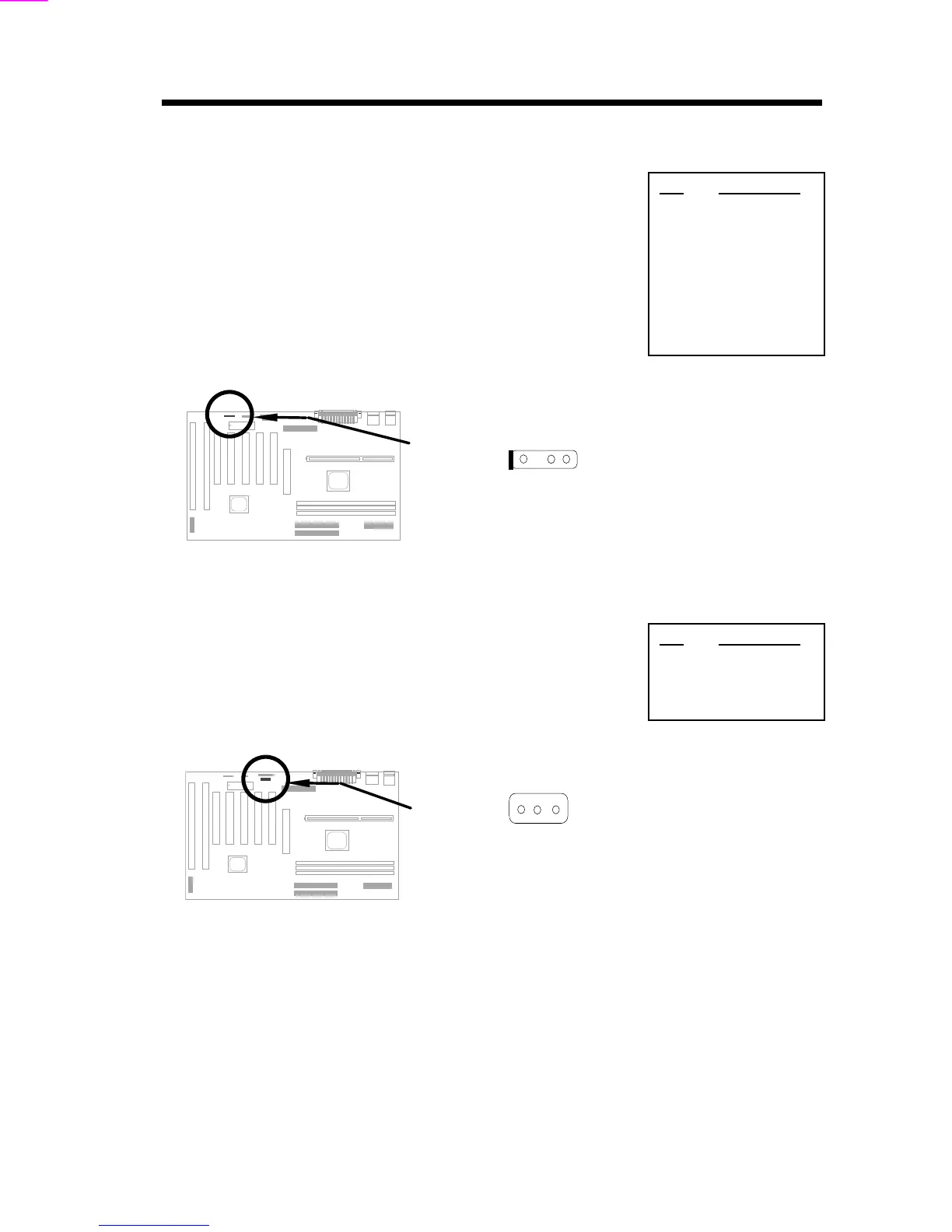

2.3.14 Modem Wake-up Connector
This mainboard implements special circuit to support
Modem Ring-On, both Internal Modem Card (AOpen
MP56) and external box Modem are supported. Since
Internal Modem card consumes no power when system
power is off, it is recommended to use Internal Modem.
To use AOpen MP56, connect 4-pin cable from RING
connector of MP56 to MODEM-WKUP connector on
the mainboard.
Pin
1
2
3
4
Description
+5V SB
NC
RING
GND
1 2 3 4
MODEM-WKUP
2.3.15 LAN Wake-up Connector
This mainboard implements a LAN-WKUP connector.
To use LAN Wake-up function, you need a network
card that supports this feature. In addition, you also
need to install a network management software.
Pin
1
2
3
Description
+5V SB
GND
LID
1 2
3
LAN-WKUP
