Start Up
Start Up
Connect Equipment and Power to the UPS
1. The UPS features a transient voltage surge-suppression (TVSS) screw located on the rear panel, for
connecting the ground lead on surge suppression devices such as telephone and network line protectors.
Prior to connecting the grounding cable, ensure that the UPS is NOT connected to utility or battery
power.
2. Connect equipment to the UPS.
3. Add optional accessories to the Smart-Slot.
4. Plug the UPS into a two-pole, three-wire, grounded receptacle only. Avoid using extension cords.
– The utility power cord is supplied in the UPS literature kit. Prior to connecting the utility power,
connect the ground lead (optional) to the TVSS screw.
5. Turn on all connected equipment. To use the UPS as a master on/off switch. Be sure all connected
equipment is switched on.

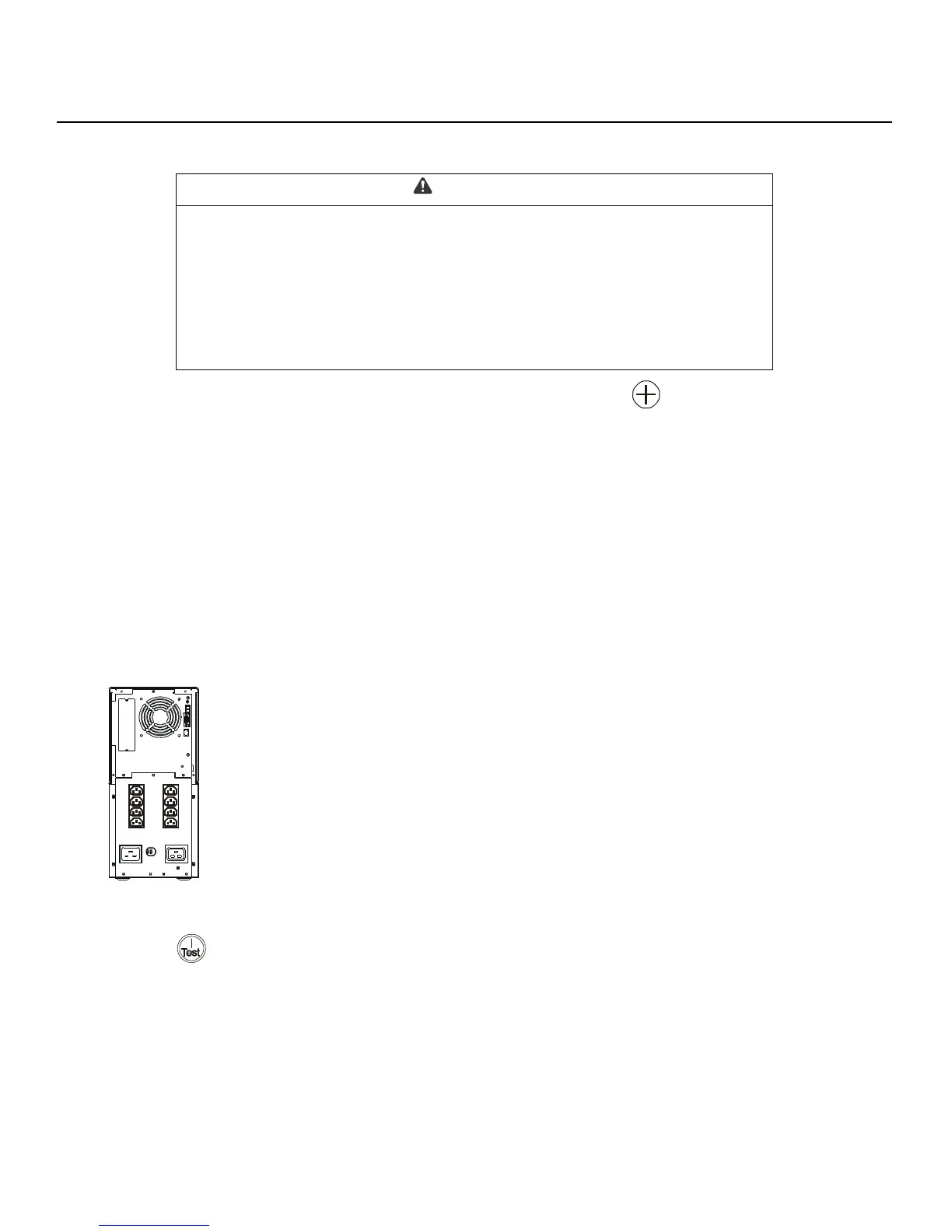

Rear Panel
Start the UPS
1. Press the button on the front panel to start the UPS.
– The battery charges to 90% capacity during the first four hours of normal operation. Do not
expect full battery run capability during this initial charge period.
– Refer to the APC by Schneider Electric Web site, www.apc.com for battery runtimes.
2. For optimal computer system security, install PowerChute Smart-UPS monitoring software.
WARNING
HAZARD OF ELECTRIC SHOCK
All electrical work must be performed by a qualified electrician.
Turn off all power to this equipment before working on the equipment. Practice
lockout/tagout procedures. Do not wear jewelry when working with electrical
equipment.
Failure to follow these instructions can result in serious injury.

APC Smart-UPS 2200 Specifications

General

Nominal Output Voltage	230V
Nominal Input Voltage	230V
Rack Height	2U
Input Voltage Range	160 - 286 V
Waveform Type	Sine wave
Interface Port	USB
Typical Recharge Time	3 hours
Form Factor	Rackmount/Tower
Frequency	50/60 Hz
Battery Type	Sealed Lead Acid (SLA)
