APG PG-7 - Peak-Hold Feature

Rev. A2, 07/16 PG7
11
Automation Products Group, Inc.
Peak-Hold (P HOLd):
When the Peak-Hold is enabled, the gauge will display the “peak” or
maximum pressure reading since the gauge was powered on or the Max/Min
value was reset.

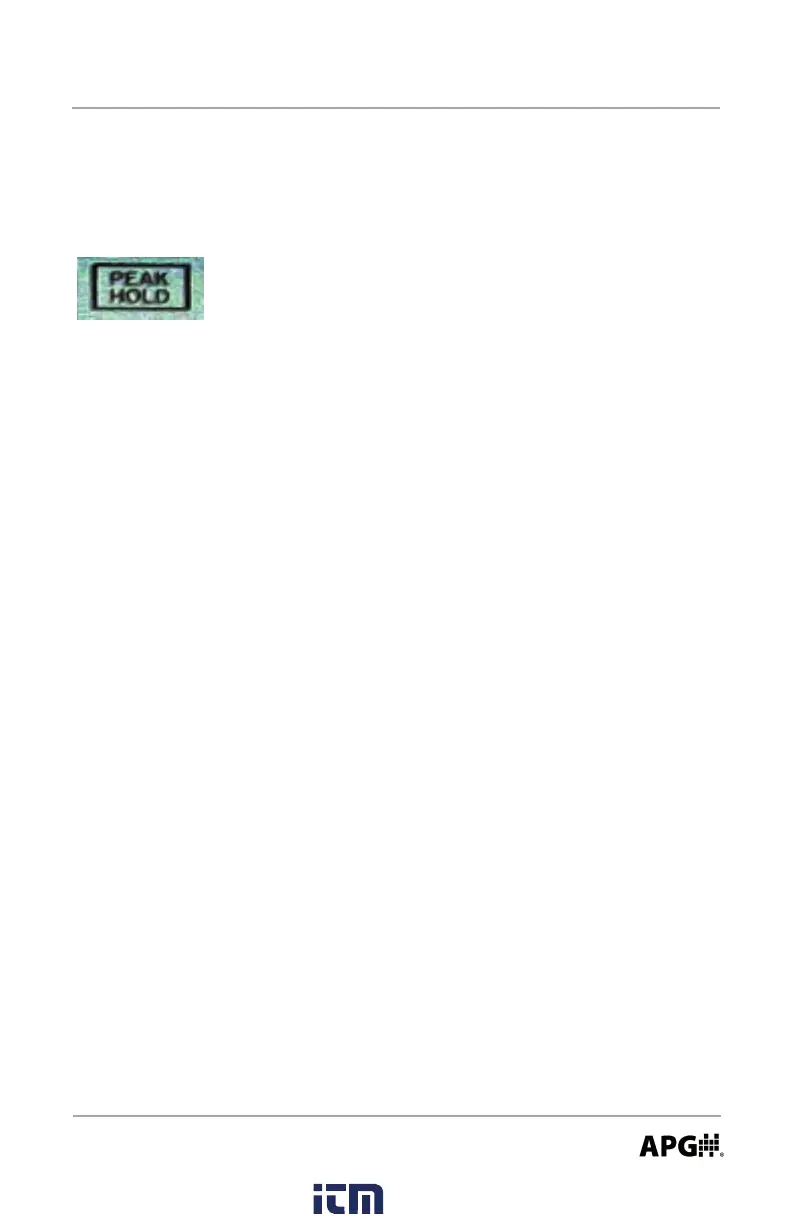

NOTE 1: When the Peak-Hold feature is enabled, a small box containing the
words PEAK HOLD will be displayed in the upper left corner of the display.
Options: O or On
Enabling the Peak-Hold feature:
Step 1: Press the On/O button to enter the main setup menu.
Step 2: Press (Z) to cycle through the options until P HOLd is displayed.
Step 3: Press (S) to access the Peak-Hold setting options.
Step 4: Press (Z) to toggle between OFF and ON.
Step 5: Press (S) to apply the displayed setting and return to main setup
menu.
NOTE 2: The peak value can be reset by pressing (S) with the Peak-Hold
function enabled.
