Rev. A2, 07/16 PG7
23
Automation Products Group, Inc.
Trip Pressure: determines the lower pressure point for the trip output
function.

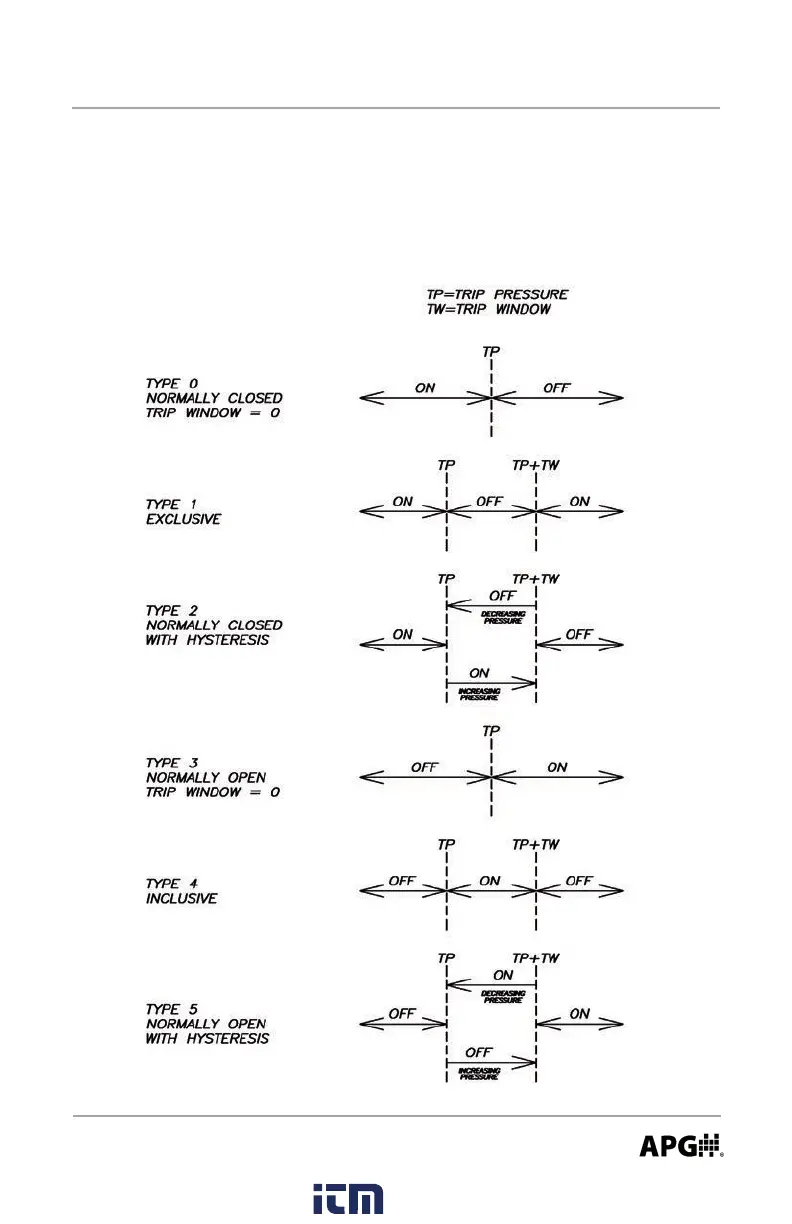

Trip Window: determines the pressure range between the lower and upper
trip pressures. Used for Types 1, 2, 4, 5 (see chart below).
