PG7 Rev. A2, 07/16
26
Automation Products Group, Inc.

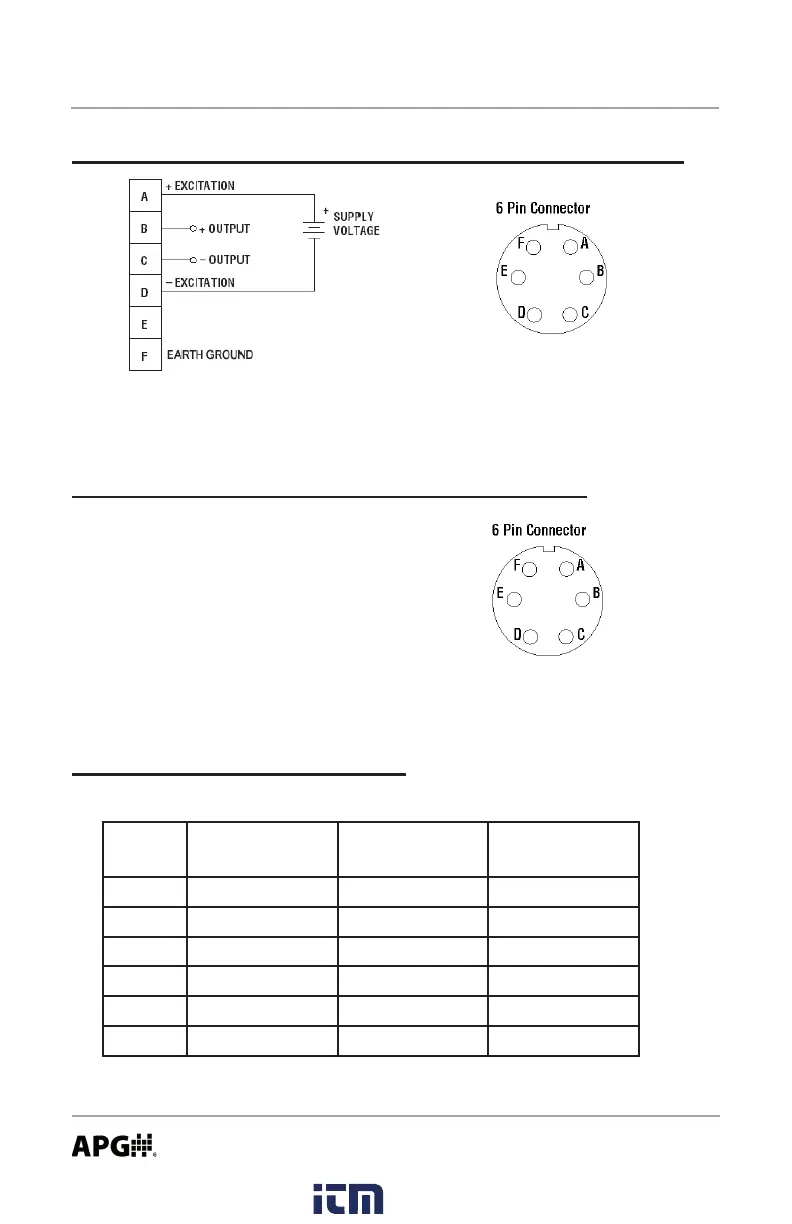

Externally powered with 0-5 VDC or 0-2 VDC analog output:
NOTE: Completion of the earth ground (Pin F) is recommended for proper
circuit protection.
Externally powered with Trip Point Relay Outputs:
A = Excitation +
B = Excitation -
C = Output 1 (T1)
D = Output 1 (T1)
E = Output 2 (T2)
F = Output 2 (T2)
NOTE: Output 1 corresponds to T1 on the LCD display, while Output 2
corresponds to T2.
Pinouts for Outputs with Relays:
4-20 mA or
Ext Power
0-2 VDC or
0-5 VDC
0-2 VDC with
Ext Power
Pin A + Excitation + Excitation + Excitation
Pin B - Excitation Output Output
Pin C Trip 1 - Excitation - Excitation
Pin D Trip 1 Trip 1 Trip 1
Pin E Trip 2 Relay Common Relay Common
Pin F Trip 2 Trip 2 Trip 2
