Trip Pressure: determines the lower pressure point for the trip output function.

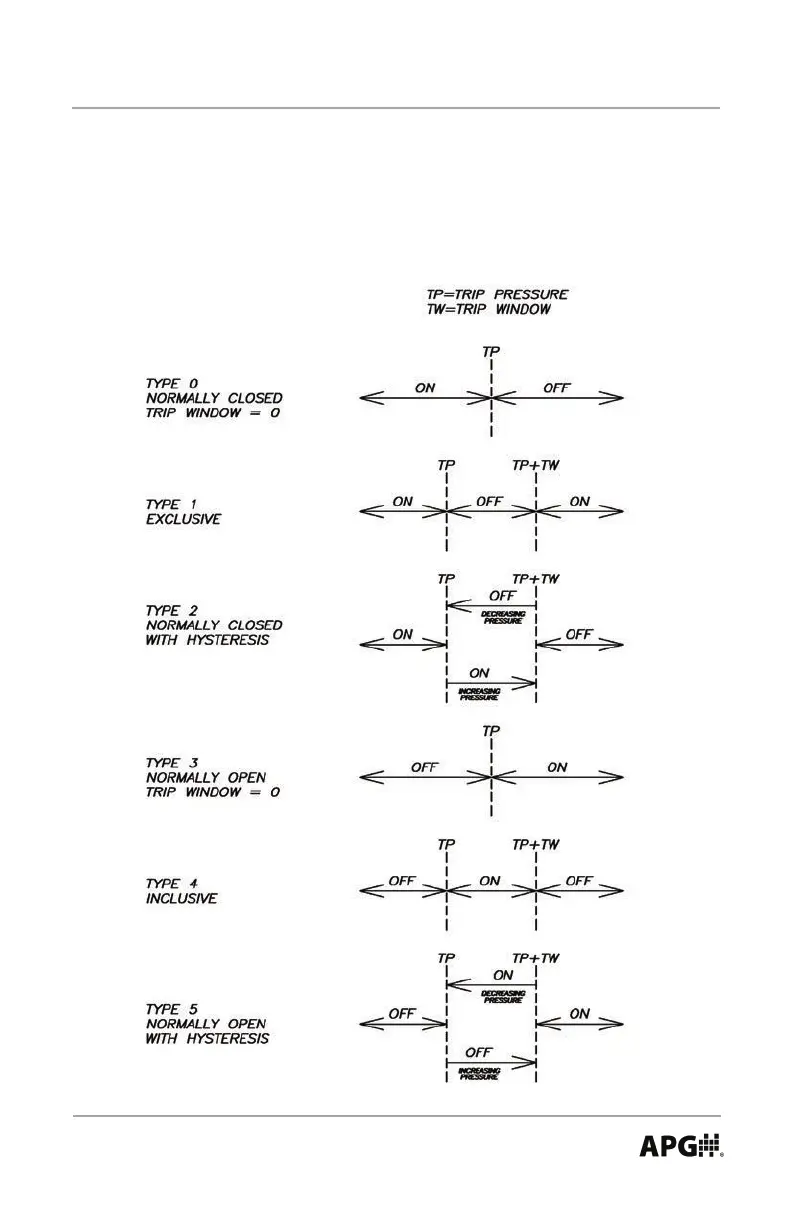

Trip Window: determines the pressure range between the lower and upper trip
pressures. Used for Types 1, 2, 4, 5 (see chart below).
