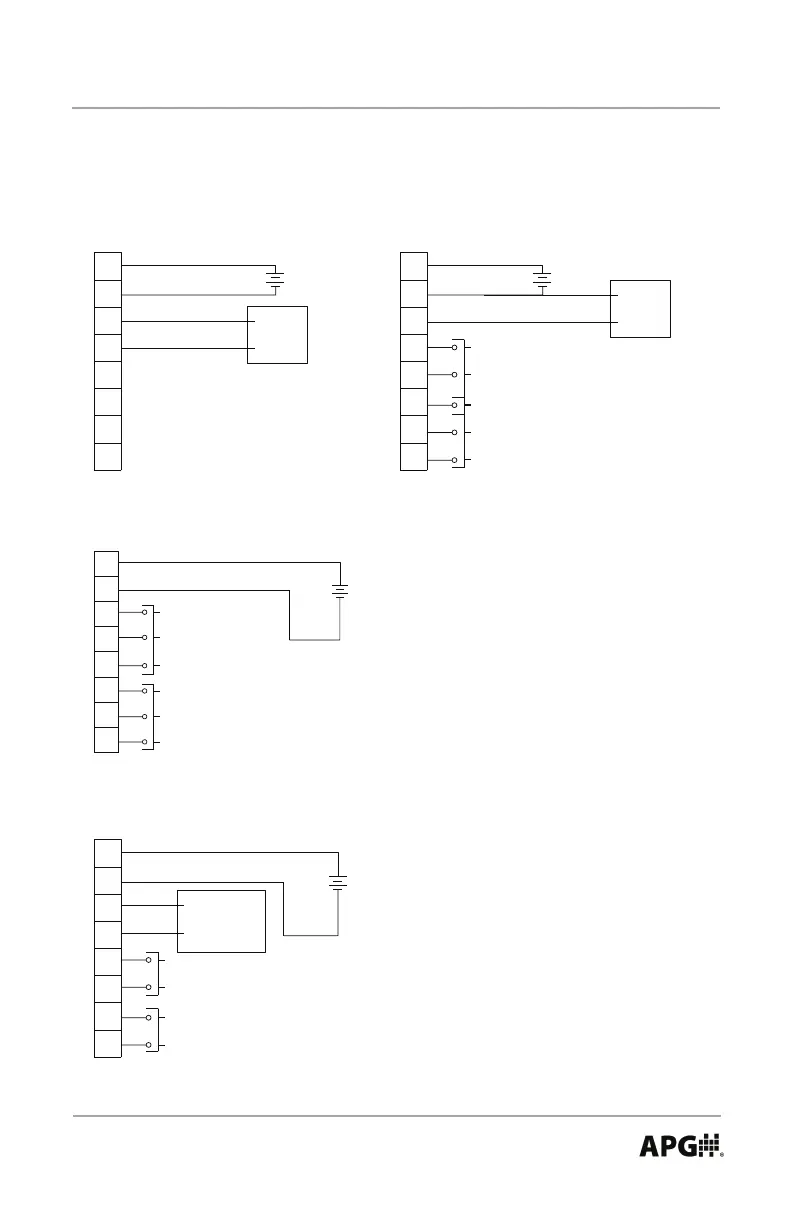

Wiring (continued)
Gauge
Connector
+Vin
GROUND
1
2
3
4
5
6
7
8
L3: 0-5 V
+
SUPPLY
VOLTAGE
Controller
Process
+
SUPPLY
VOLTAGE
Gauge
Connector
(C4 relay option shown)
Relay 1 Normally Closed
Relay 1 Normally Open
Relay 1 Common
Relay 2 Normally Closed
Relay 2 Normally Open
Relay 2 Common
1
2
3
4
5
6
7
8
L4: External Power
+
SUPPLY
VOLTAGE
Gauge
Connector
L5: RS-485
1
2
3
4
5
6
7
8
RS-485 B (-)
Master Device
RS-485 A (+)
Relay 1 Common
Relay 2 Normally Open
Relay 1 Normally Open
Relay 2 Common
(C4 relay option shown)
Gauge
Connector
GROUND
+Vin
1
2
3
4
5
6
7
8
L3: 0-5 V
+
SUPPLY
VOLTAGE
Controller
Process
Relay 1 Normally Open
Relay 1/Relay 2 Common
Relay 1 Normally Closed
Relay 2 Normally Open
Relay 2 Normally Closed
(C4 relay option shown)
