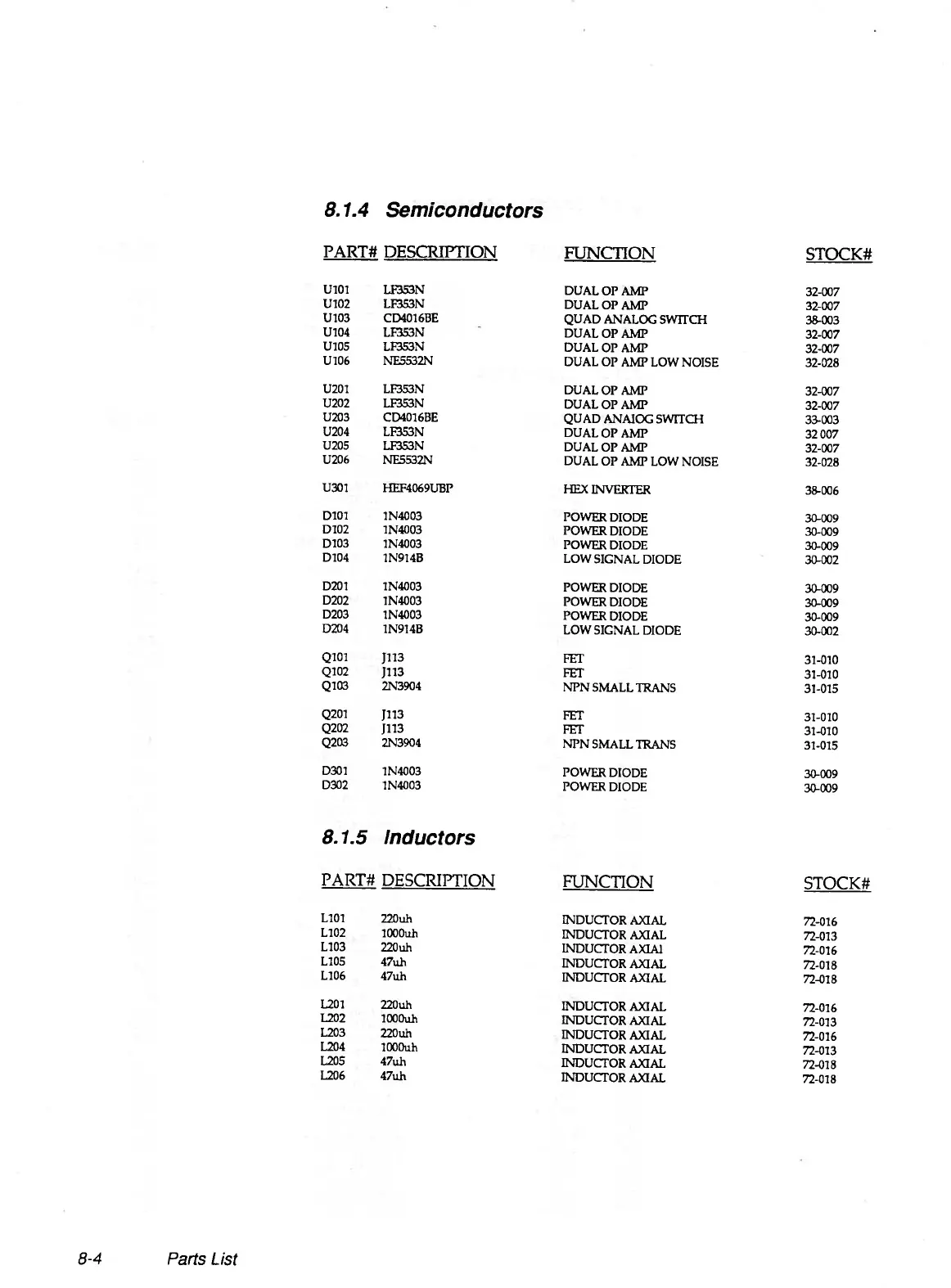

8.1.4 Semiconductors
PART# DESCRIPTION FUNCTION
STOCK#
U101
LF353N
DUALOP AMP
32-007
U102 LF353N
DUAL OP AMP
32-007
U103 CD4016BE
QUAD ANALOG SWITCH 38-003
U104 LE353N
DUAL OP AMP
32-007
U10S
LF353N
DUAL OP AMP
32-007
U106 NE5532N
DUAL OP AMP LOW NOISE
32-028
U201 LF353N
DUAL OP AMP
32-007
U202 LE353N
DUAL OP AMP
32-007
U203
CD4016BE
QUAD ANAIOG SWITCH
33-003
U204
LF353N
DUAL OP AMP
32007
U205
LF3S3N
DUAL OP AMP
32-007
U206
NE5532N
DUAL OP AMP LOW NOISE
32-028
U301
HEF4069UBP
HEX INVERTER
38-006
D101
1N4003
POWER DIODE
30-009
D102
1N4003
POWER DIODE
30-009
D103
1N4003
POWER DIODE
30-009
D104
1N914B
LOW SIGNAL DIODE
30-002
D201
1N4003
POWER DIODE
30-009
D202
1N4003
POWER DIODE
30-009
D203
1N4003
POWER DIODE
30-009
D204
1N914B
LOW SIGNAL DIODE
30-002
Q101
J113
FET
31-010
Q102
J113
FET
31-010
Q103
2N3904
NPN SMALL TRANS
31-015
Q201
J113
FET
31-010
Q202
J113
FET
31-010
Q203
2N3904
NPN SMALL TRANS
31-015
D301
1N4003
POWER DIODE
30-009
D302
1N4003
POWER DIODE
30-009
8.1.5
Inductors
PART# DESCRIPTION
FUNCTION
STOCK#
L101
220uh
INDUCTOR AXIAL
72-016
L102
lOOOuh
INDUCTOR AXIAL
72-013
L103
220uh
INDUCTOR AXIA1
72-016
L105
47uh
INDUCTOR AXIAL
72-018
L106
47uh
INDUCTOR AXIAL
72-018
L201
220uh
INDUCTOR AXIAL
72-016
L202
lOOOuh
INDUCTOR AXIAL
72-013
L203
220uh
INDUCTOR AXIAL
72-016
L204
lOOOuh
INDUCTOR AXIAL
72-013
L205
47uh
INDUCTOR AXIAL
72-018
L206
47uh
INDUCTOR AXIAL
72-018
