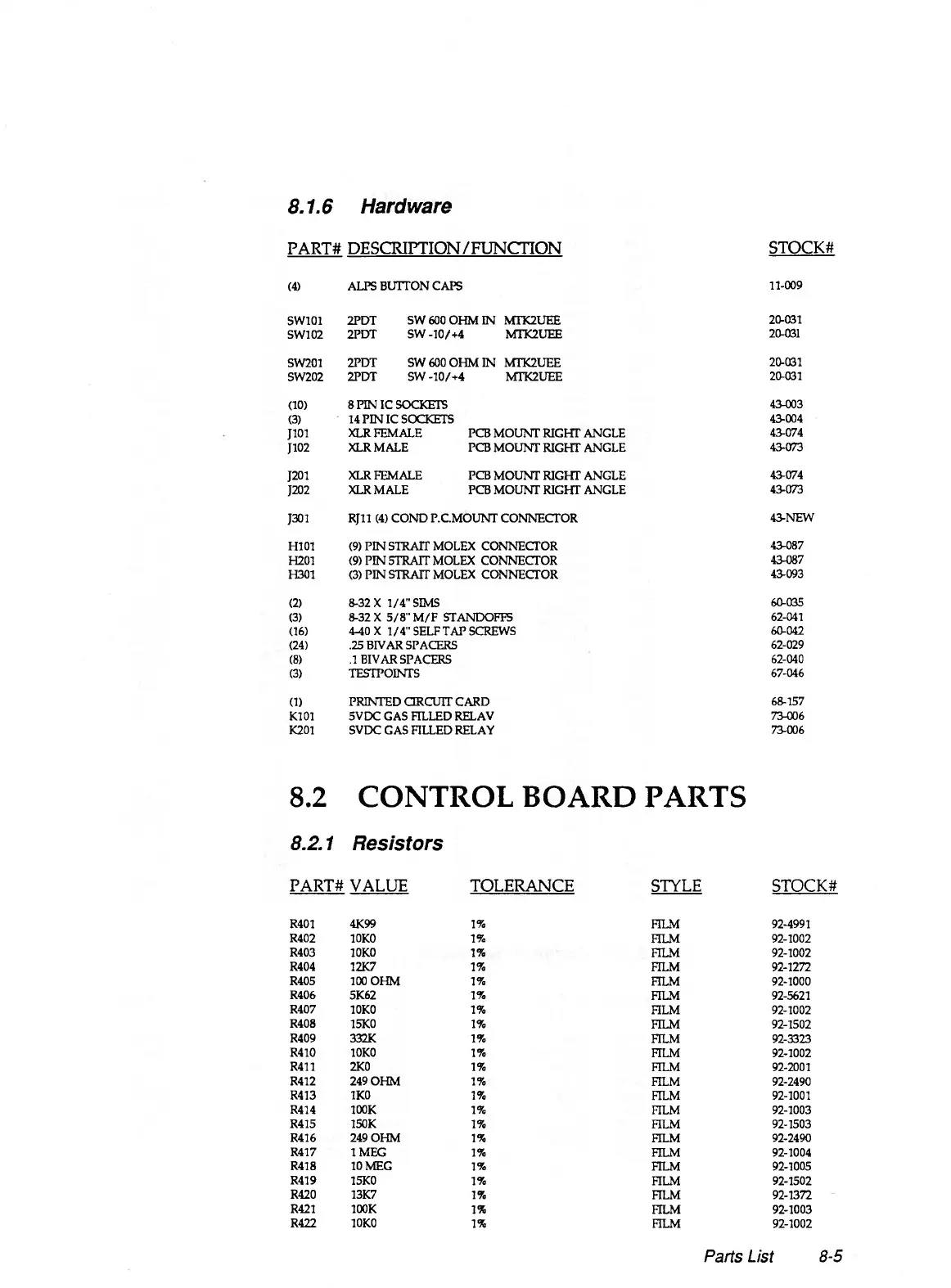

8.1.6 Hardware
PART# DESCRIPTION/FUNCTION
STOCK#
(4)
ALPS BUTTON CAPS
11-009
SW101 2PDT SW 600 OHM IN MTK2UEE
20-031
SW102
2PDT SW -10/+4 MTK2UEE
20-031
SW201 2PDT SW 600 OHM IN MTK2UEE
20-031
SW202
2PDT SW-10/+4 MTK2UEE
20-031
(10) 8 PIN IC SOCKETS
43-003
(3)
14 PIN IC SOCKETS
43-004
J101 XLR FEMALE PCB MOUNT RIGHT ANGLE
43-074
J102
XLRMALE PCB MOUNT RIGHT ANGLE
43-073
J201
XLR FEMALE PCB MOUNT RIGHT ANGLE
43-074
J202 XLRMALE PCB MOUNT RIGHT ANGLE
45-073
J301 RJ11 (4) COND P.C.MOUNT CONNECTOR
43-NEW
HI 01 (9) PIN STRAIT MOLEX CONNECTOR
43-087
H201 (9) PIN STRAIT MOLEX CONNECTOR
43-087
H301 (3) PIN STRAIT MOLEX CONNECTOR
43-093
(2) 8-32 X 1/4" SIMS
60-035
(3) 8-32 X 5/8" M/F STANDOFFS
62-041
(16)
4-40 X 1/4" SELF TAP SCREWS
60-042
(24) .25 BIVAR SPACERS
62-029
(8)
.1 BIVAR SPACERS
62-040
(3) TESTPOINTS
67-046
(1)
PRINTED CIRCUIT CARD
68-157
K101 5VDC GAS FILLED RELAV
73-006
K201
SVDC GAS FILLED RELAY
73-006
8.2 CONTROL BOARD PARTS
8.2.1 Resistors
PART# VALUE TOLERANCE STYLE STOCK#
R401
4K99
i%
FILM 92-4991
R402 10K0 i%
FILM
92-1002
R403
10KO
i%
FILM
92-1002
R404 12K7
i% FILM 92-1272
R405 100 OHM
i% FILM 92-1000
R406
5K62
i%
FILM 92-5621
R407
10K0 i%
FILM 92-1002
R408
15K0 i%
FILM 92-1502
R409 332K
i%
FILM
92-3323
R410 10K0
1% FILM
92-1002
R411 2K0
i% FILM 92-2001
R412 249 OHM i%
FILM 92-2490
R413 1K0 i%
FILM
92-1001
R414 100K i%
HLM
92-1003
R415 150K
i% FILM 92-1503
R416 249 OHM i%
FILM
92-2490
R417
1 MEG i% FILM 92-1004
R418 10 MEG
i% FILM 92-1005
R419
15K0
i% HLM 92-1502
R420 13K7
i%
FILM 92-1372
R421 100K
i% FILM 92-1003
R422 10K0
i% FILM 92-1002
Parts List
8-5
