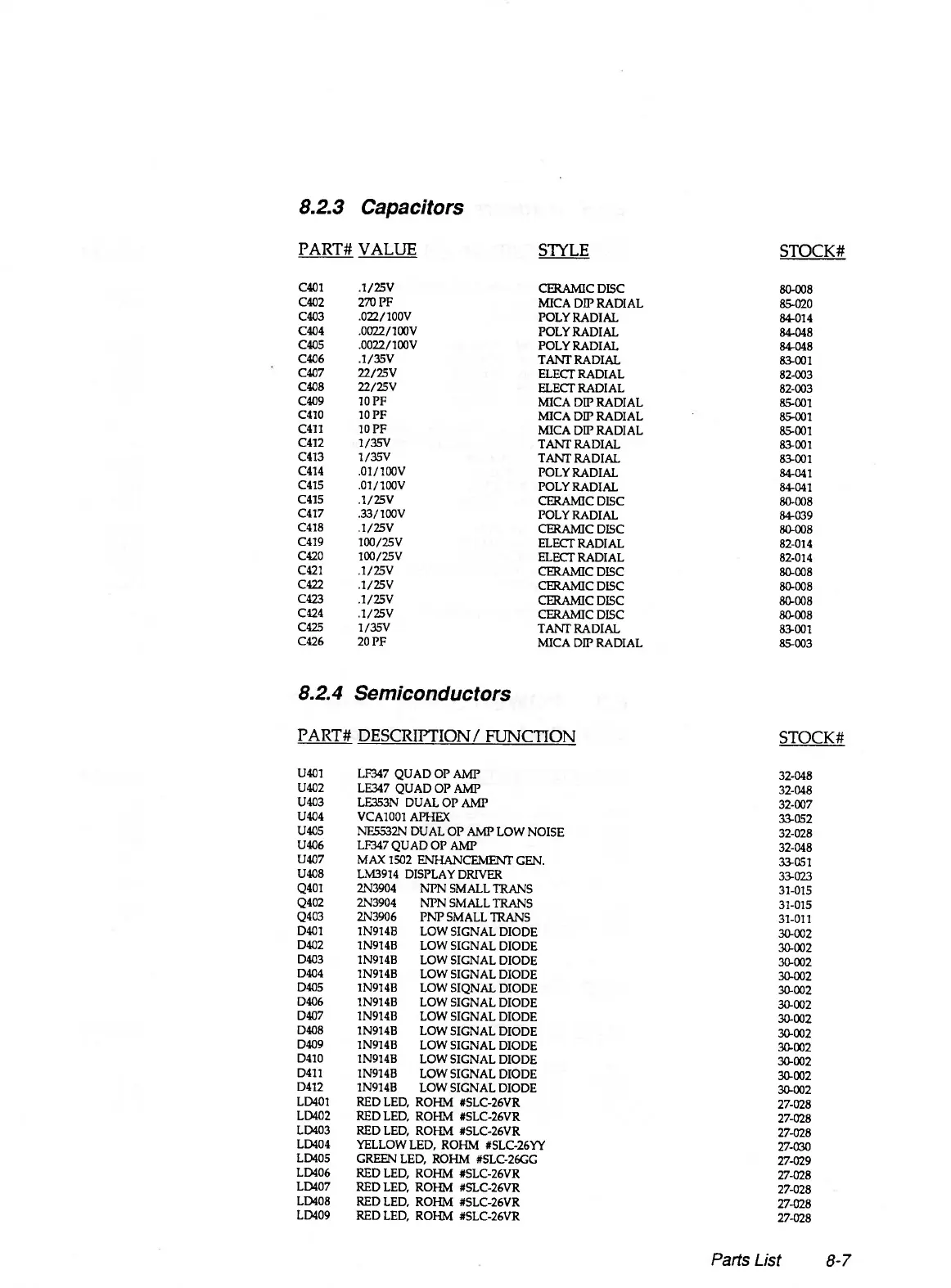

8.2.3 Capacitors
PART# VALUE
STYLE
STOCK#
C401 .1/25V
CERAMIC DISC
80-008
C402
27DPF
MICA DIP RADIAL
85-020
C403
.022/100V
POLY RADIAL
84-014
C404 .0022/100V
POLY RADIAL
84-048
C405 .0022/100V
POLY RADIAL 84-048
C406 .1/35V
TANT RADIAL 83-001
C407 22/25V
ELECT RADIAL
82-003
C408
22/25V
ELECT RADIAL
82-003
C409 10 PF
MICA DIP RADIAL 85-001
C410 10 PF
MICA DIP RADIAL
85-001
C411
10 PF
MICA DIP RADIAL 85-001
C412 1/35V
TANT RADIAL 83-001
C413
1/35V
TANT RADIAL
83-001
C414 .01/100V
POLY RADIAL
84-041
C415 .01/100V
POLY RADIAL 84-041
C415
.1/25V
CERAMIC DISC
80-008
C417 .33/100V
POLY RADIAL 84-039
C418
.1/25V
CERAMIC DISC 80-008
C419
100/25V
ELECT RADIAL 82-014
C420 100/25V
ELECT RADIAL
82-014
C421 .1/25V
CERAMIC DISC 80-008
C422 .1/2SV
CERAMIC DISC
80-008
C423 .1/25V
CERAMIC DISC
80-008
C424 .1/25V
CERAMIC DISC
80-008
C425
1/3SV
TANT RADIAL 83-001
C426
20 PF
MICA DIP RADIAL
85-003
PART# DESCRIPTION/ FUNCTION
STOCK#
U401
LF347 QUAD OP AMP
32-048
U402
LE347 QUAD OP AMP
32-048
U403
LE353N DUAL OP AMP
32-007
U404
VCA1001 APHEX
33-052
U405
NE5532N DUAL OP AMP LOW NOISE
32-028
U406
LF347 QUAD OP AMP
32-048
U407
MAX 1502 ENHANCEMENT GEN.
33-051
U408
LM3914 DISPLAY DRIVER
33-023
Q401
2N3904
NPN SMALL TRANS
31-015
Q402
2N3904
NPN SMALL TRANS
31-015
Q403
2N3906
PNP SMALL TRANS
31-011
D401
1N914B
LOW SIGNAL DIODE
30-002
D402
1N914B
LOW SIGNAL DIODE
30-002
D403
1N914B
LOW SIGNAL DIODE
30-002
D404
1N914B
LOW SIGNAL DIODE
30-002
D405
1N914B
LOW SIQNAL DIODE
30-002
D406
1N914B
LOW SIGNAL DIODE
30-002
D407
1N914B
LOW SIGNAL DIODE
30-002
D408
1N914B
LOW SIGNAL DIODE
30-002
D409
1N914B
LOW SIGNAL DIODE
30-002
D410
1N914B
LOW SIGNAL DIODE
30-002
D411
1N914B
LOW SIGNAL DIODE
30-002
D412
1N914B
LOW SIGNAL DIODE
30-002
LD401
RED LED, ROHM #SLC-26VR
27-028
LD402
RED LED, ROHM #SLC-26VR
27-028
LD403
RED LED, ROHM #SLC-26VR
27-028
LD404
YELLOW LED, ROHM #SLC-26YY
27-030
LD405
GREEN LED, ROHM #SLC-26GG
27-029
LD406
RED LED, ROHM #SLC-26VR
27-028
LD407
RED LED, ROHM #SLC-26VR
27-028
LD408
RED LED, ROHM #SLC-26VR
27-028
LD409
RED LED, ROHM #SLC-26VR
27-028
