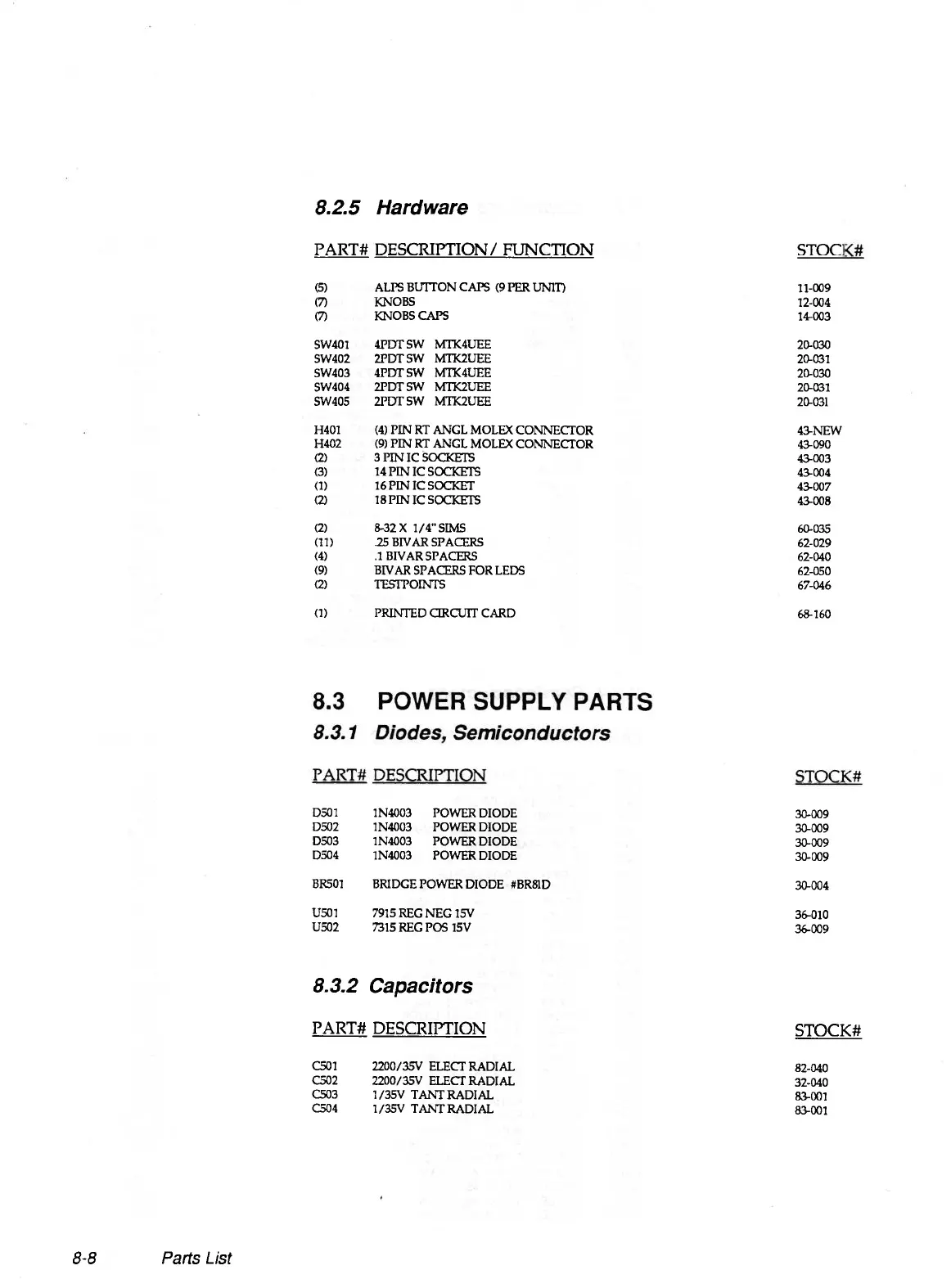

8.2.5 Hardware
PART# DESCRIPTION/ FUNCTION STOC1
(5)
ALPS BUTTON CAPS (9 PER UNIT)
11-009
(7)
KNOBS
12-004
(7)
KNOBS CAPS
14-003
SW401 4PDTSW MTK4UEE
20-030
SW402 2PDTSW MTK2UEE
20-031
SW403 4PDTSW MTK4UEE
20-030
SW404 2PDTSW MTK2UEE
20-031
SW40S 2PDTSW MTK2UEE
20-031
H401
(4) PIN RT ANGL MOLEX CONNECTOR
43-NEW
H402
(9) PIN RT ANGL MOLEX CONNECTOR
43-090
(2) 3 PIN IC SOCKETS
43-003
(3) 14 PIN IC SOCKETS
43-004
(1)
16 PIN IC SOCKET
43-007
(2) 18 PIN IC SOCKETS
43-008
(2) 8-32 X 1/4" SIMS
60-035
(11)
.25 BIVAR SPACERS
62-029
(4)
.1 BIVAR SPACERS
62-040
(9)
BIVAR SPACERS FOR LEDS
62-050
(2) TESTPOINTS
67-046
(1)
PRINTED aRCUIT CARD
68-160
D501
1N4003 POWER DIODE
30-009
D502
1N4003 POWER DIODE
30-009
D503
1N4003 POWER DIODE
30-009
D504
1N4003 POWER DIODE
30-009
BR501
BRIDGE POWER DIODE #BR81D
30-004
U501
7915 REG NEC 15V
36-010
U502
7315 REG POS 15 V
36-009
8.3.2 Capacitors
PART# DESCRIPTION
STOCK#
C501 2200/35V ELECT RADIAL
82-040
C502 2200/35V ELECT RADIAL
32-040
C503 1/35V TANT RADIAL
83-001
C504 1/35V TANT RADIAL
83-001
