Apogee ensemble Quick Start Guide

Ensemble Quick Start Guide | 9
Connect Ensemble to your Computer

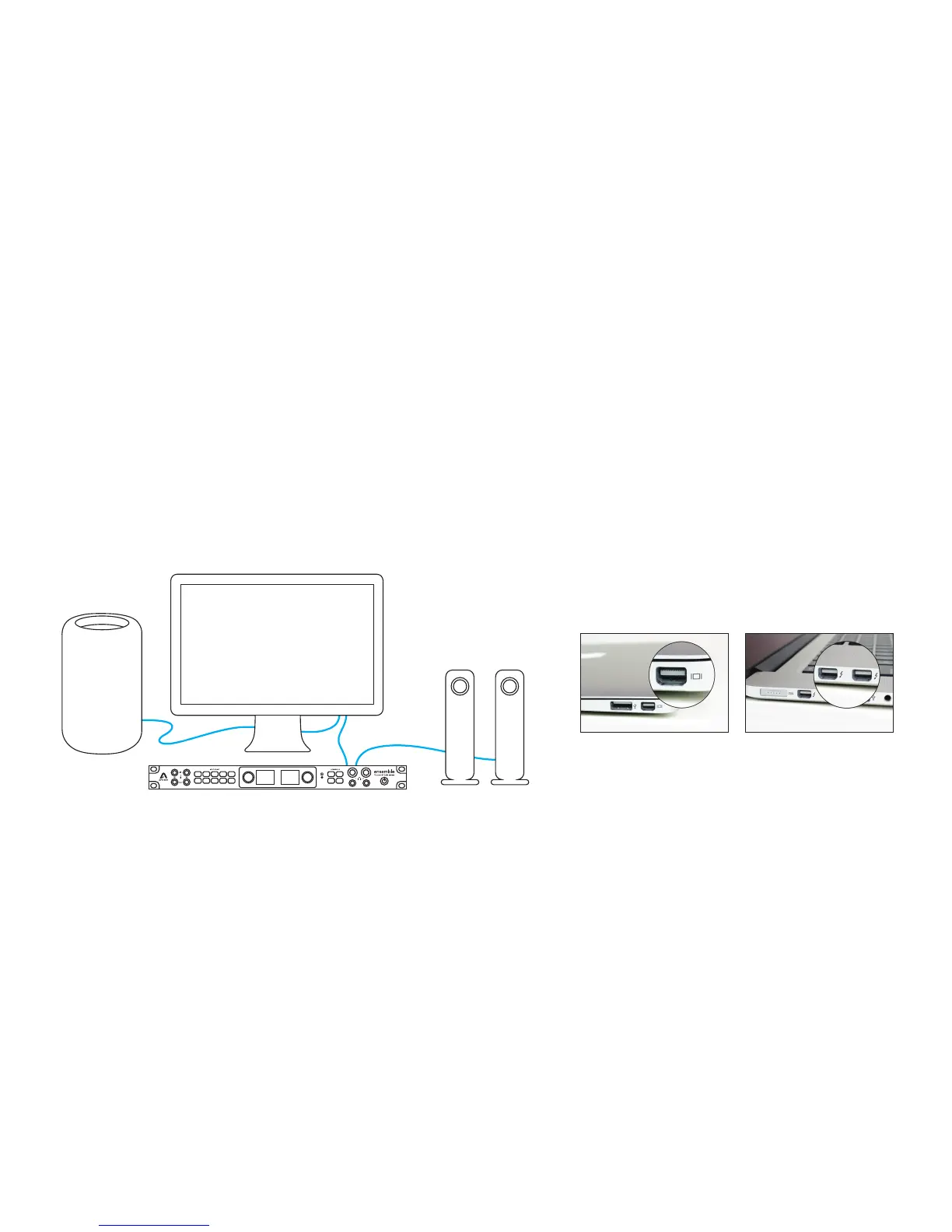

Ensemble features two Thunderbolt™ 2 connections to enable daisy-chaining of other Thunderbolt peripherals to
your computer. It does not matter which position Ensemble is placed in the chain.
1. UsingacertiedThunderboltcable,connectEnsembletoaThunderboltportonyourcomputer.
2. ConnectothercertiedThunderboltdevicestoEnsemble’sremainingThunderboltport.
MakesurethatyourMachastheThunderboltlogo.TheMiniDisplayPort,featuredonmanypre-ThunderboltMacs,
istheexactsizeofaThunderboltportbutdoesNOTsupportThunderboltdevices.Seethedierencebelow:
G1
G2
4
8
3
7
2
6
1
INPUT OUTPUT
5
A
C
B
D
Note: Apogee cannot guarantee performance if utilizing an uncertied Thunderbolt device
in the same chain as Ensemble. To see if a device is certied, please go to:
https://thunderbolttechnology.net/products
✖ Mini Display Port ✔ Thunderbolt Port

Apogee ensemble Specifications

General

Type	Audio Interface
Simultaneous Channels	36
Phantom Power	Yes
Word Clock	Yes
Bit Depth	24-bit
Digital Inputs	ADAT, S/PDIF
Digital Outputs	ADAT, S/PDIF
Connectivity	FireWire
Inputs	8 analog
Outputs	8 analog
