Applus Technologies, Inc. Smog DADdy User Manual VER 8.2 Page 8 of 55
Self-Test
Port

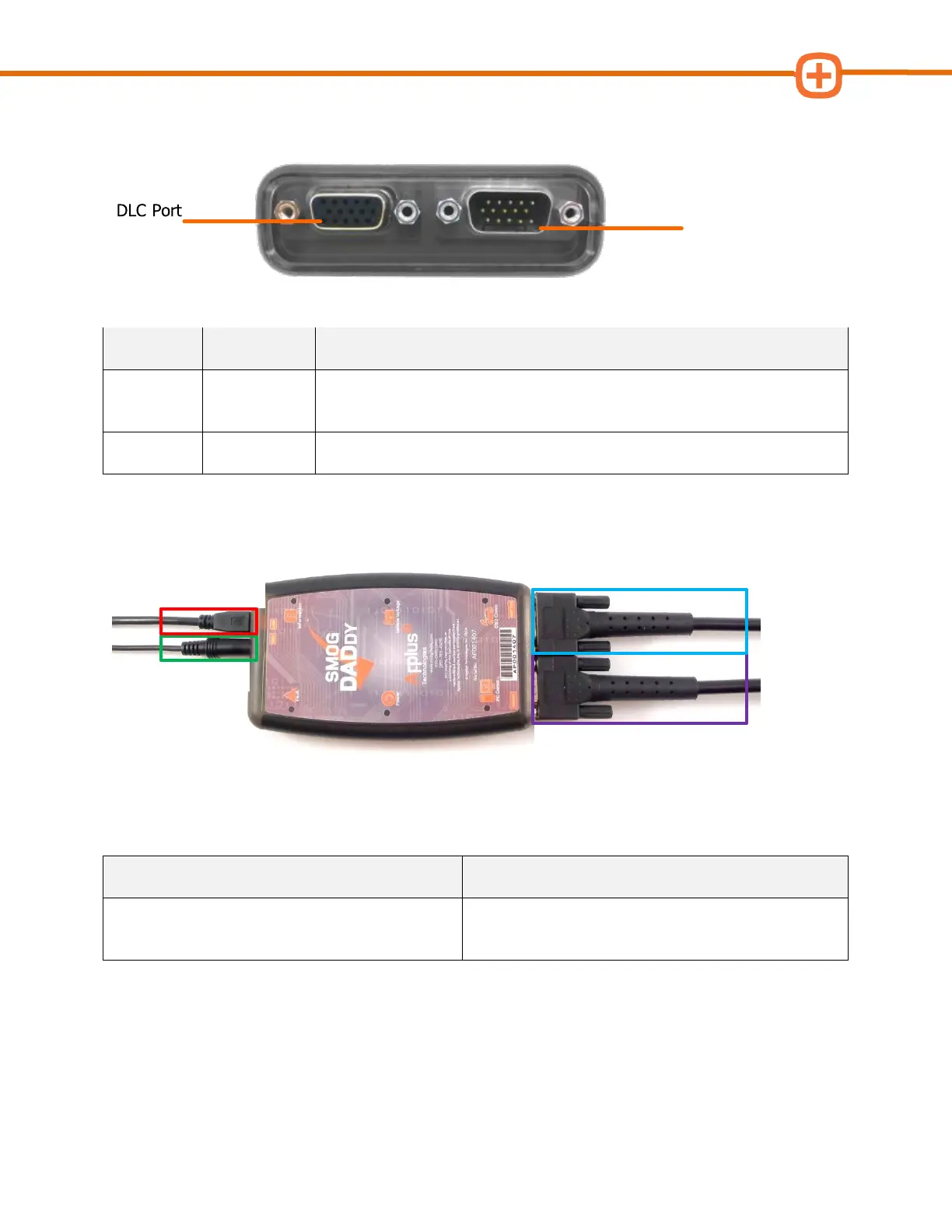

Bottom Connections
Port
Connector
Function
DLC
Female
Connects Smog DADdy to the vehicle’s DLC (OBDII) using either a
4 ft. (wireless version) or 16 ft. (wired version) DLC cable.
Self-Test
Male
Connects the 1 ft. Self-Test cable to the SmogDADdy device.
Cable Connections
Wired Smog DADdy
The wired model is equipped with a 16 ft. vehicle DLC cable and a 3.3 ft. (1 meter) computer
USB cable to operate.
Smog DADdy Device Location
Cables Used
Next to the computer
 16 ft. vehicle DLC cable
 3.3 ft. computer USB cable
USB
Alternate Ground
DLC
Self-Test
