APT 340XAC User Manual

37

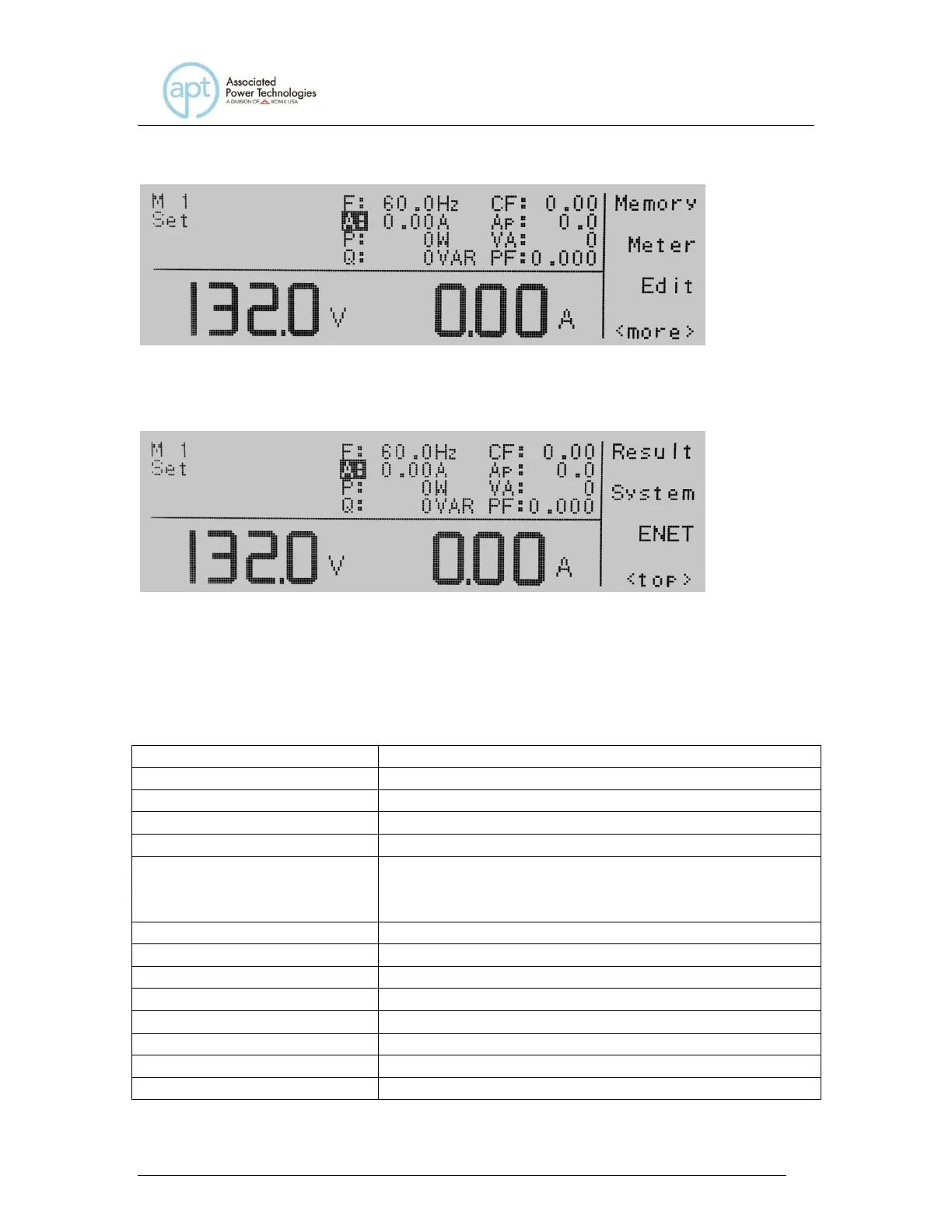

If you press the <more> soft key within the Set screen, the soft keys will change
to Result, System, and <top> in the MANUAL Mode.
4.1.1 Set Screen Description
When the instrument is in the Set screen the parameters indicate their current
settings. However, when the indicator LED is active on the Test/Reset key the
parameter settings will display their output value.
Set Screen Parameters
Description of Parameters
M1-1
Memory and step location
1.0s
Instrument timer for output
F: 60.0 Hz
Frequency
Ap:
Peak Current
Set
Status of instrument at the present time. Possible
readings are set, dwell, pass, abort, or other failure
conditions.
P: 0.0W
Power
A: 0.000A
Current
PF: 0.000
Power Factor
Memory
Memory soft key used to change memory location
120.0V (left meter reading)
Meter for voltage
0.00A (right meter reading)
Meter for parameters of F, Ap, P, A & PF
Q: 0 VAR
Reactive Power
VA: 0
Apparent Power
