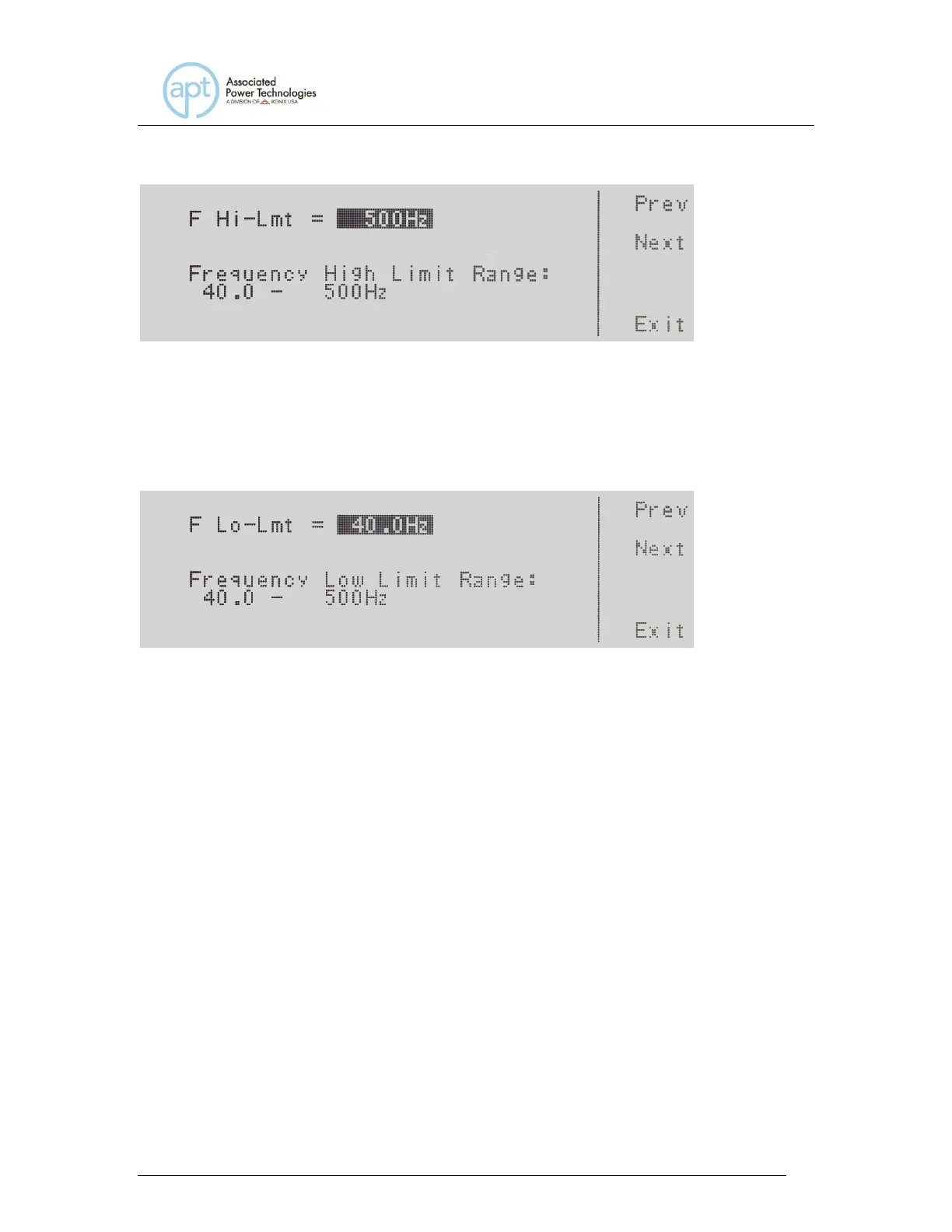

F Lo-Lmt = indicates the frequency low limit that is programmed into the
instrument.
Frequency Lo Limit Range: indicates the frequency range that can be
programmed into the instrument
To change the frequency high limit or low limit use the numeric keypad and type
the frequency value. Once you type in a number a shaded black box (■) will
begin blinking acknowledging the parameter is being changed. Press the Enter
soft key to accept the parameter, or press the Esc key to move back to the F Hi-
Lmt or F Lo-Lmt parameter screen. When the Enter soft key is pressed the
frequency is accepted and you transition into the next system parameter: Start
and End Angle.
If you wish to bypass editing this parameter and move to the next parameter you
can press the Prev or Next soft key.
4.3.10 Editing Start and End Angle (MANUAL Mode only)
Use the , soft keys to navigate to the Start Angle or End Angle parameter
(only selectable for AC output). Pressing the Edit soft key will provide one of the
following screens:
