APT 340XAC User Manual

60

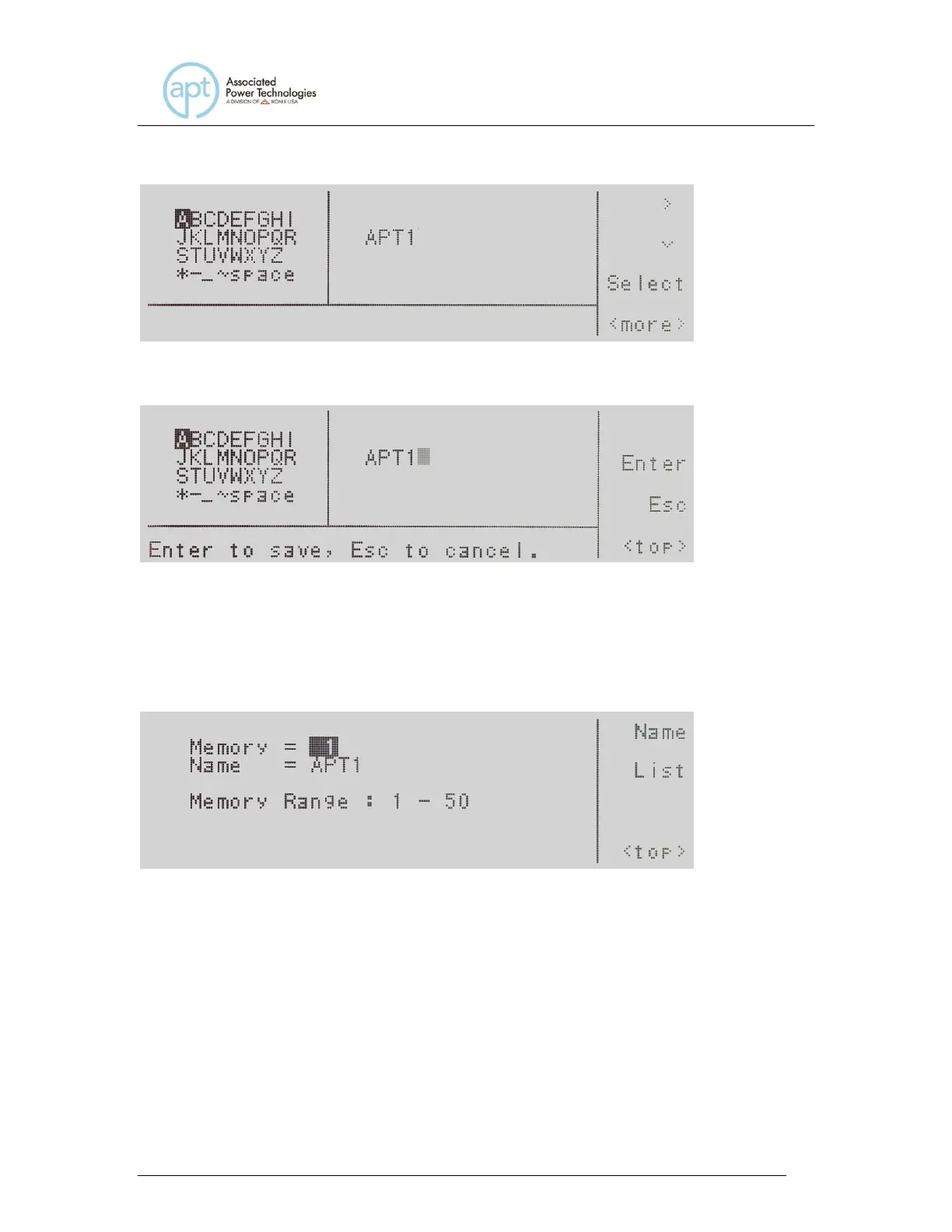

Now press the <more> soft key which will bring you to the following screen:
To save the memory under the current name you selected via the character
map/numeric keypad press the Enter soft key.
Pressing the Esc soft key versus the Enter soft key will bring you back to the
main memory screen. The screen is as follows:
4.4.3 Selecting a Step
To select a step press the Step soft key and the steps will sequence through.
Each time the Step soft key is pressed the step will increase by one increment.
There are 9 steps available. After the 9th step you will return to step number 1.
4.5 Test Parameters Description
It is important to note that any changes made within the Test Parameter screen
will be associated with the individual memory and step location indicated on the

APT 340XAC Specifications

General

Brand	APT
Model	340XAC
Category	AC Power Distribution
Language	English
