degree value. Once you type in a number a shaded black box (■) will begin
blinking acknowledging the parameter is being changed. Press the Enter soft
key to accept the parameter, or press the Esc soft key to move back to the Start
Angle or End Angle parameter screen. When the Enter soft key is pressed the
degree angle is accepted and you transition into the next parameter: Memory
Cycle.
If you wish to bypass editing this parameter and move to the next parameter you
can press the Prev or Next soft key.
4.6.2 Editing the Memory Cycle (PROGRAM Mode only)

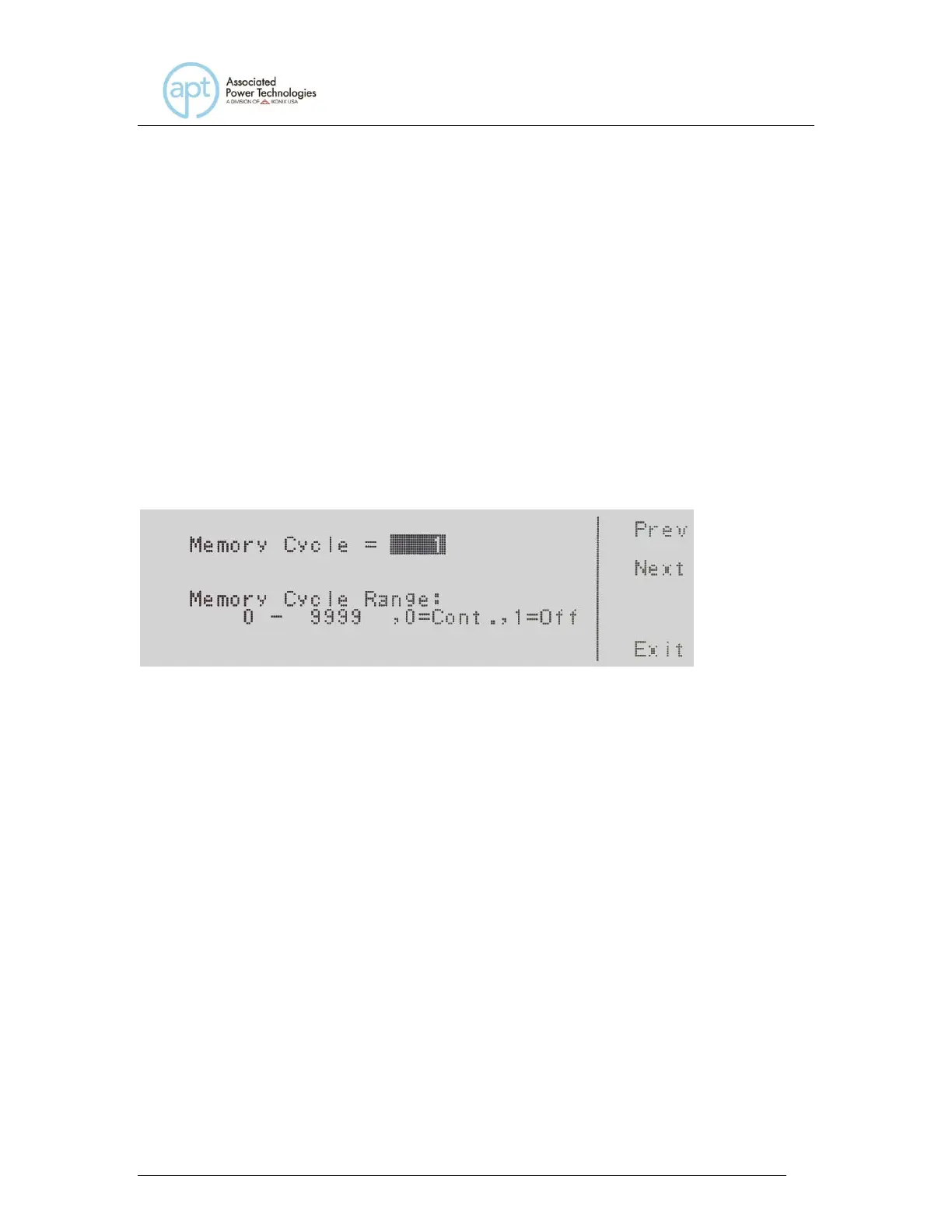

Use the , soft keys to navigate to the Memory Cycle parameter. Pressing the
Edit soft key will provide the following screen:
Memory Cycle = indicates the number of cycles that will be performed when the
output is active.
Memory Cycle Range: = provides the selections available for the Memory Cycle.
The options available are 0 – 9999, 0=Cont., 1=Off. The 0 – 9999 selection
programs the instrument to repeat the test cycle x number of times. The 0=Cont.
selection indicates that the test cycle will repeat in ∞. The 1=Off selection
indicates that the test cycle will perform only one cycle.
To change the Memory Cycle, use the number keypad to select the memory
cycle range and press the Enter soft key to accept the number. To cancel the
editing of the Memory Cycle press, the Esc soft key. When the Enter soft key is
pressed and the Memory Cycle is accepted, you transition into the next
parameter: Memory.
If you wish to bypass editing this parameter and move to the next parameter you
can press the Prev or Next soft key.
