2. Two inverters in each phase:

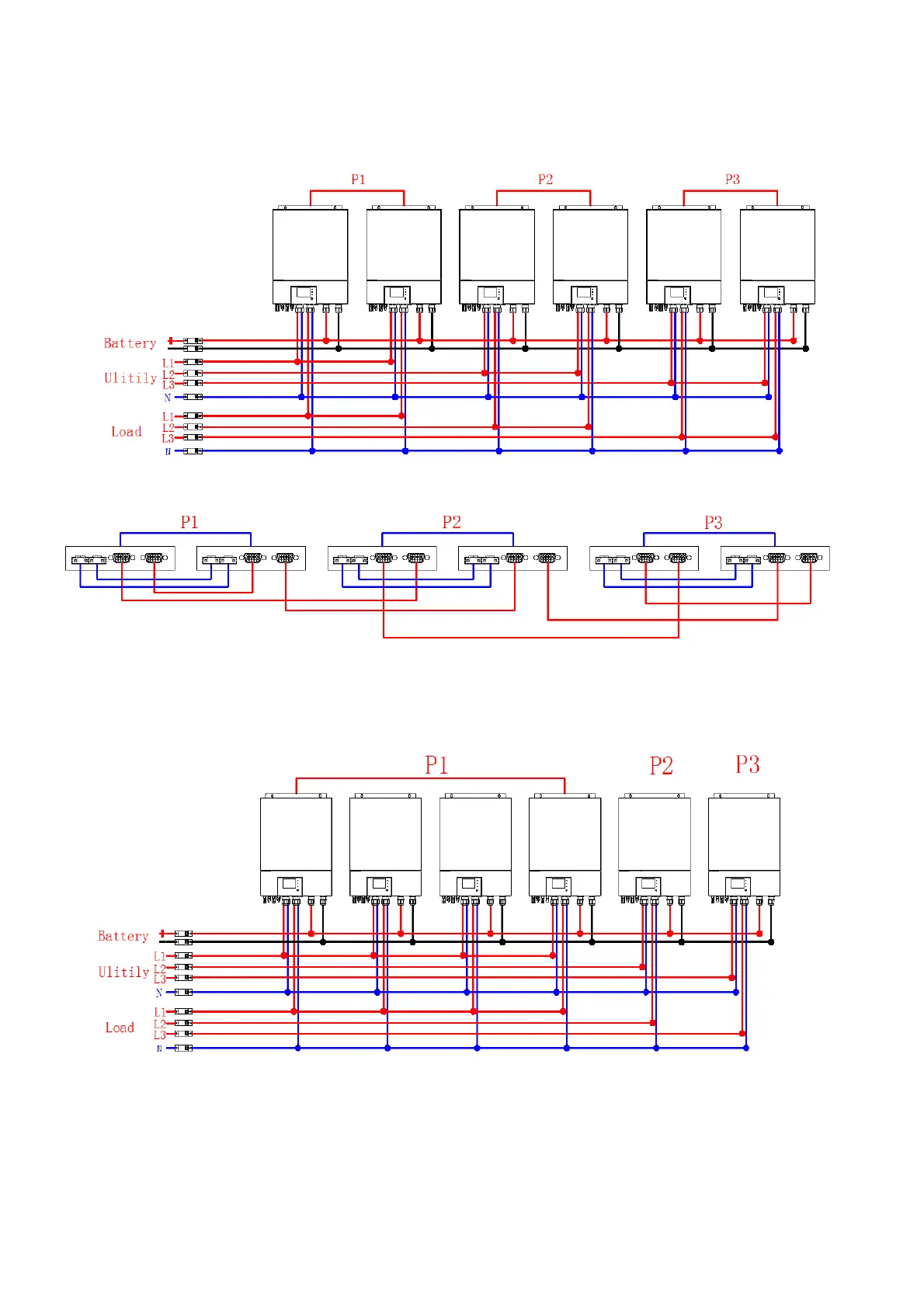

Power Connection:
NOTE: The following picture is only a schematic diagram of the equipment .If the actual chassis does not
conform to the schematic due to a structural upgrade, it is subject to prior notice.
NOTE:P1: A-phase, P2: B-phase, P3: C-phase.
Communication Connection
3. Four inverters in one phase and one inverter for the other two phases:
Power Connection:
NOTE: The following picture is only a schematic diagram of the equipment .If the actual chassis does not
conform to the schematic due to a structural upgrade, it is subject to prior notice.
NOTE:P1: A-phase, P2: B-phase, P3: C-phase.
