29
Communication Connection

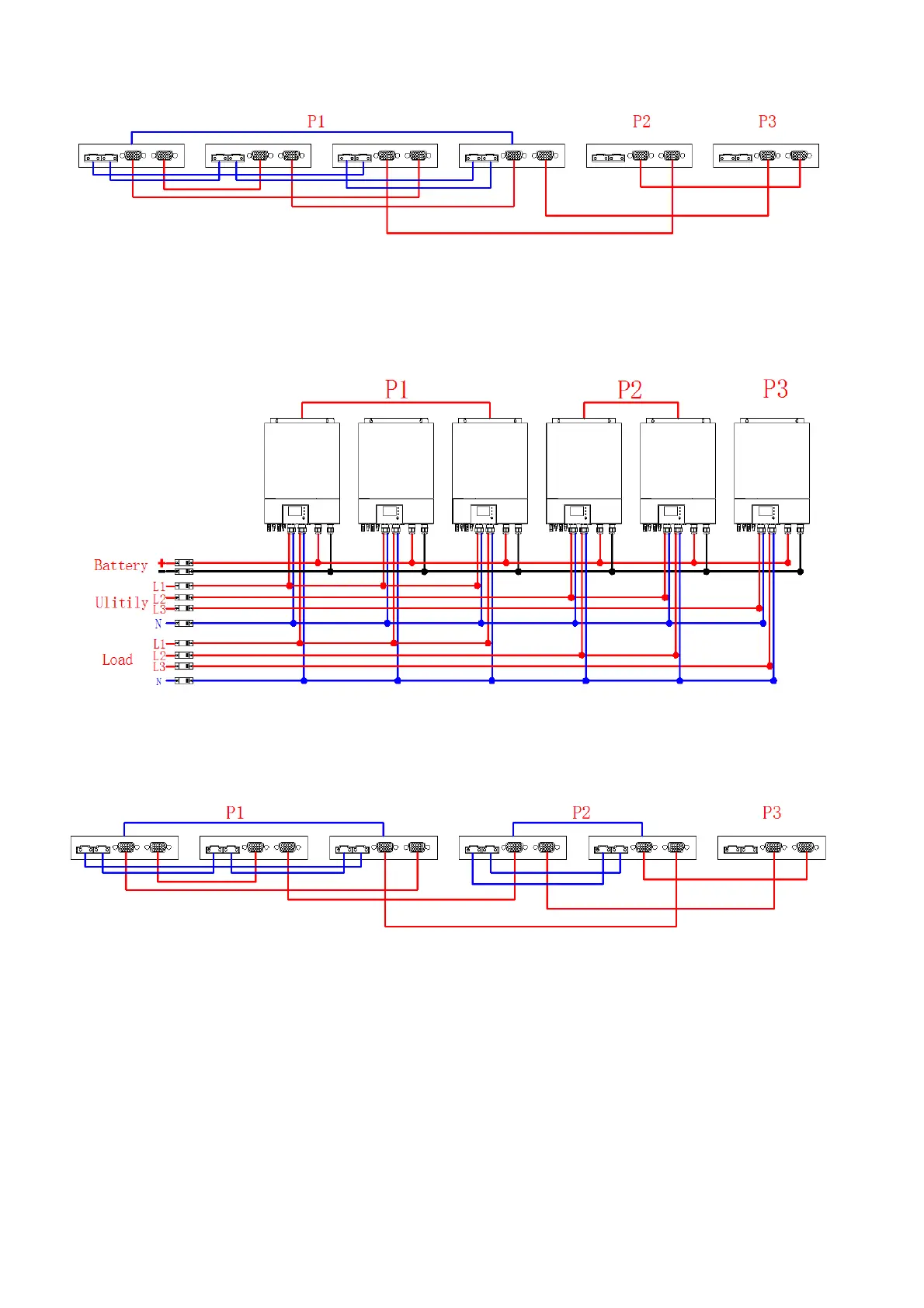

4.Three inverters in one phase, two inverters in second phase and one inverter for the third phase:
Power Connection:
NOTE: The following picture is only a schematic diagram of the equipment .If the actual chassis does not
conform to the schematic due to a structural upgrade, it is subject to prior notice.
NOTE:P1: A-phase, P2: B-phase, P3: C-phase.
Communication Connection
To Next Page
