30

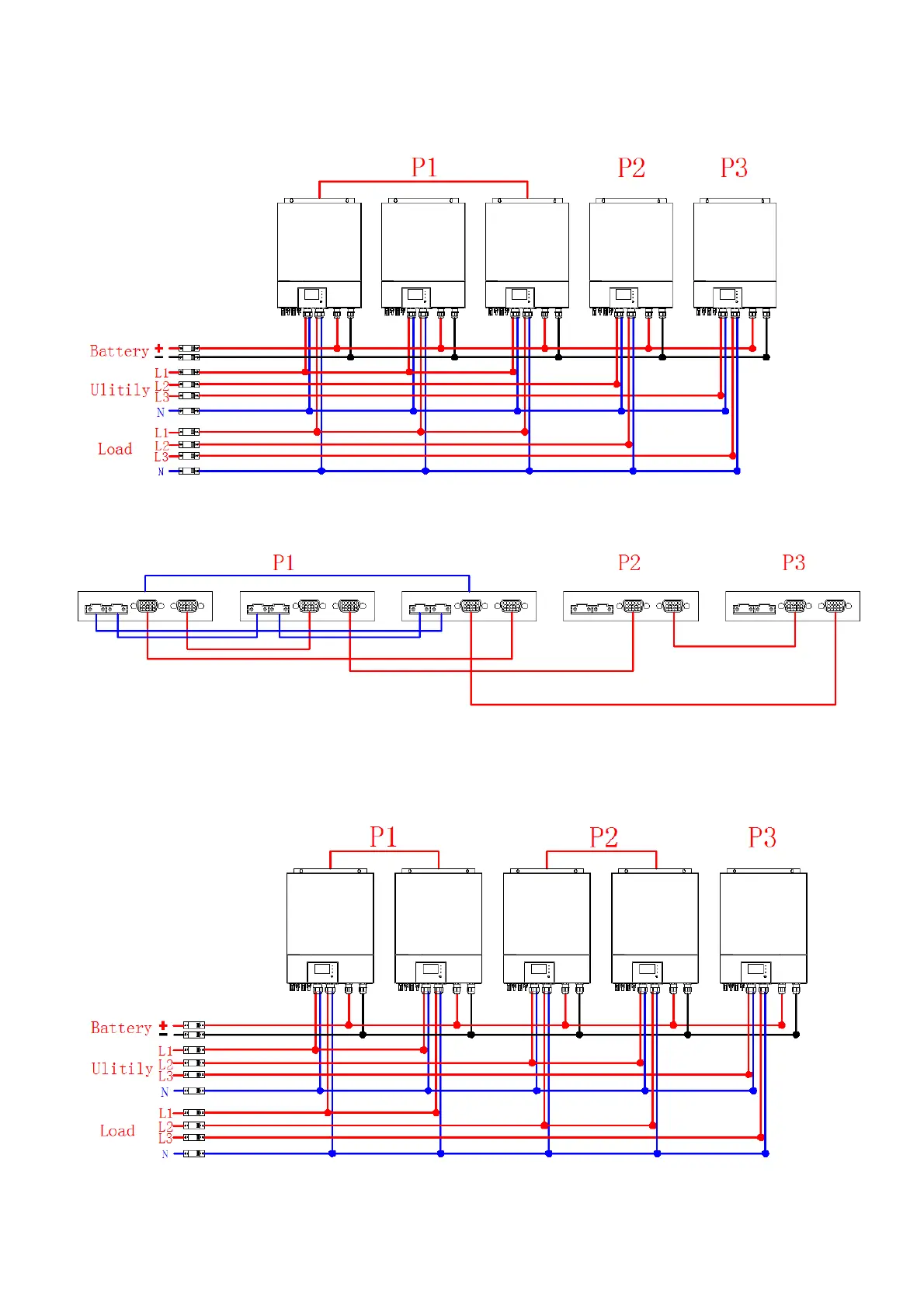

5. Three inverters in one phase and only one inverter for the remaining two phases:
Power Connection:
NOTE: The following picture is only a schematic diagram of the equipment .If the actual chassis does not
conform to the schematic due to a structural upgrade, it is subject to prior notice.
NOTE:P1: A-phase, P2: B-phase, P3: C-phase.
Communication Connection
6.Two inverters in two phases and only one inverter for the remaining phase:
Power Connection:
NOTE: The following picture is only a schematic diagram of the equipment .If the actual chassis does not
conform to the schematic due to a structural upgrade, it is subject to prior notice.
NOTE:P1: A-phase, P2: B-phase, P3: C-phase.
To Next Page
