AQUAERO 5 / AQUAERO 6
● This product is not designed for use in life support appliances, devices, or
systems where malfunction of this product can reasonably be expected to re-
sult in personal injury. Aqua Computer GmbH & Co. KG customers using or
selling this product for use in such application do so at their own risk and
agree to fully indemnify Aqua Computer GmbH & Co. KG for any damages
resulting from such application!
4.
4.4.
4. Electrical connectors
Electrical connectorsElectrical connectors
Electrical connectors
ATTENTION: Completely turn off your power supply unit or disconnect the mains
power cord from the wall outlet before connecting or disconnecting any cables
to/from the device! The PCB and components may get very hot during operation!
Wait for at least 30 minutes after powering down the device before touching the
PCB, heat sink or any components of the device!
4.1.
4.1.4.1.
4.1. Connector overview
Connector overviewConnector overview
Connector overview

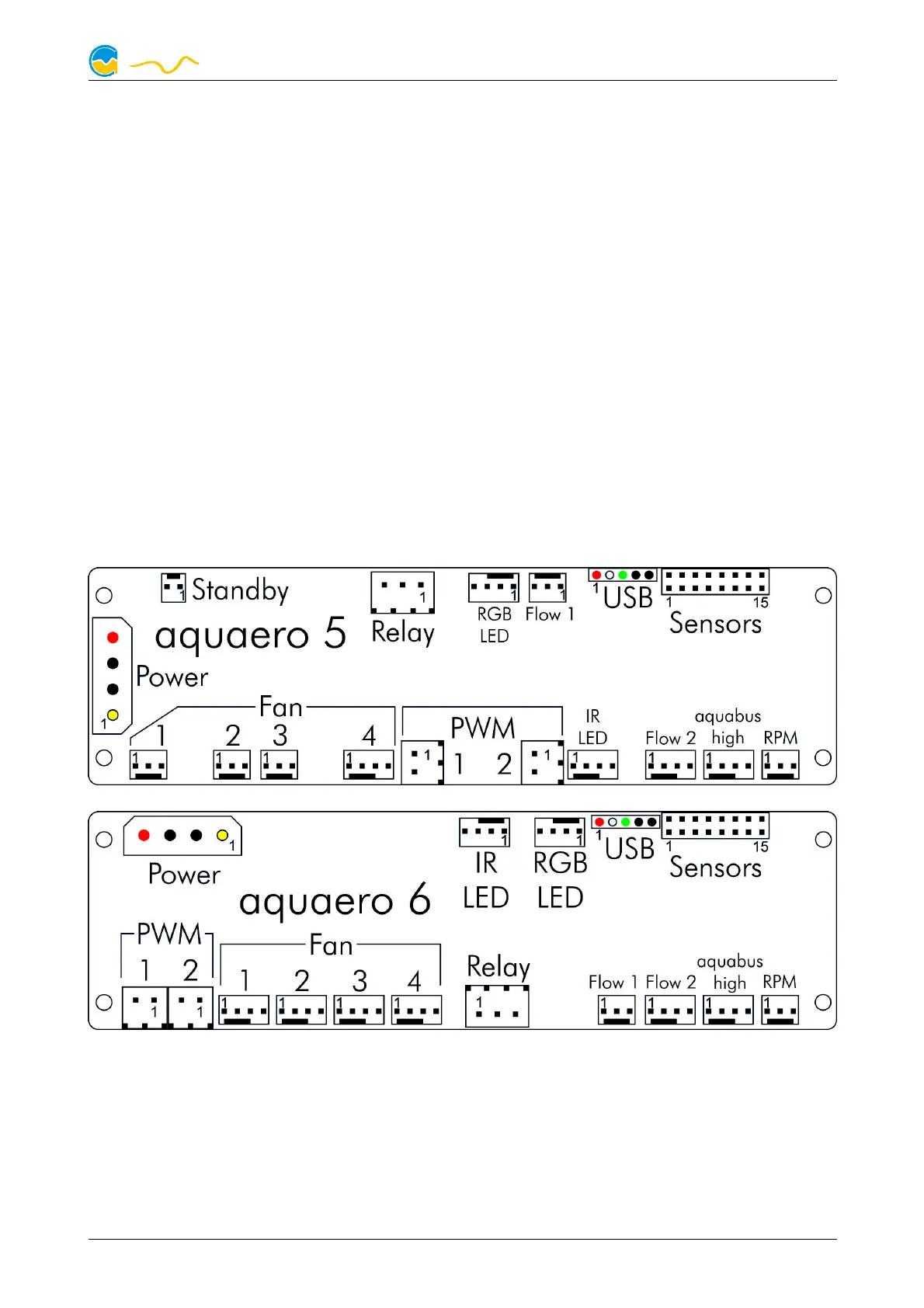

The following schematic shows the connectors of the aquaero 5/6 units:
4.2.
4.2.4.2.
4.2. Connector “Power”
Connector “Power”Connector “Power”
Connector “Power”
Please connect a HDD power plug of your PSU to this connector. Do not use ex-
cessive force but double check the polarity of the plug if you are having trouble to
connect.
Pin assignment: Pin 1 +12 V
Pin 2 GND
