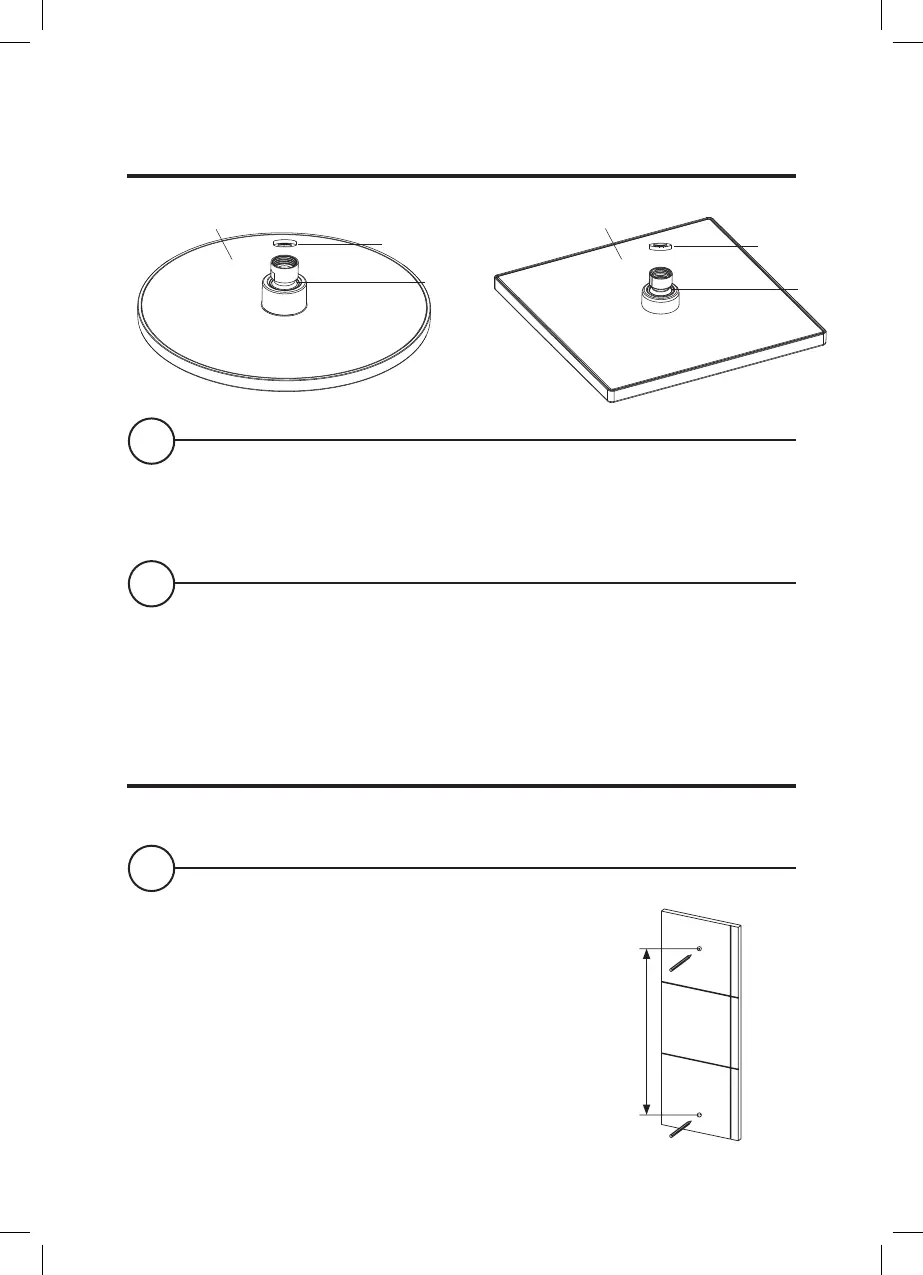

INSTALLATION FIXED HEADS
Filter washer
Shower head
Shower head
Ball joint
Filter washer
Ball joint
Filter washer
Ball joint
1
Where applicable remove the protective film from the back of the
head. Ensuring the filter washer is in the correct position, attach the
fixed head to the fixed arm by screwing the ball joint into place.
2
Open the shower valve and check for leaks.
INSTALLATION ADJUSTABLE RAIL KIT
ROUND
(Refer to page 27 for square kit)
1
The top bracket is a floating bracket and
can be positioned to suit existing screw
holes (if required).
Prepare two fixing points, using the
fixings provided (if suitable).
N.B. The maximum distance between
fixing points is 657mm.
530
±
± mm
657mm Maximum
