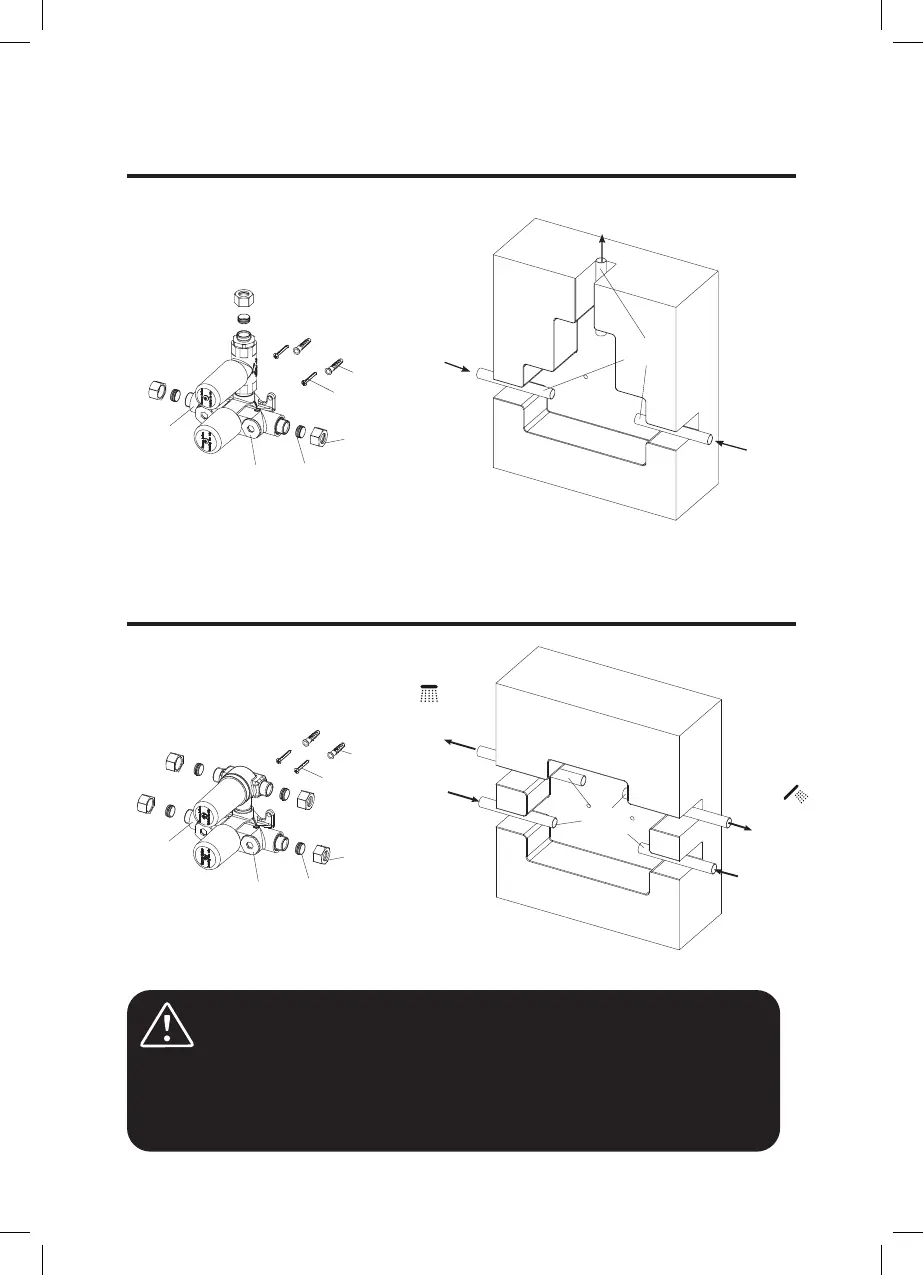

INSTALLATION VALVE  SINGLE OUTLET
Hot water inlet
Cold
water
inlet
Outlet
15mm
pipework
Copper olives
Compression nuts
Wall plugs
Valve body
Filter nuts
Wall screws
Valve body
Filter nuts
INSTALLATION VALVE  DUAL OUTLET
Hot water inlet
Cold
water inlet
15mm
pipework
Outlet 1
(Fixed head or bath fill)
Outlet 2
(Adjustable head
or hand shower)
Valve body
Copper olives
Compression nuts
Wall plugs
Filter nuts
Wall screws
IMPORTANT:
Ensure outlet feeds are configured as per the diagram shown.
Fixed head or bath fill - Left outlet
Adjustable head or hand shower - Right outlet
